24
24

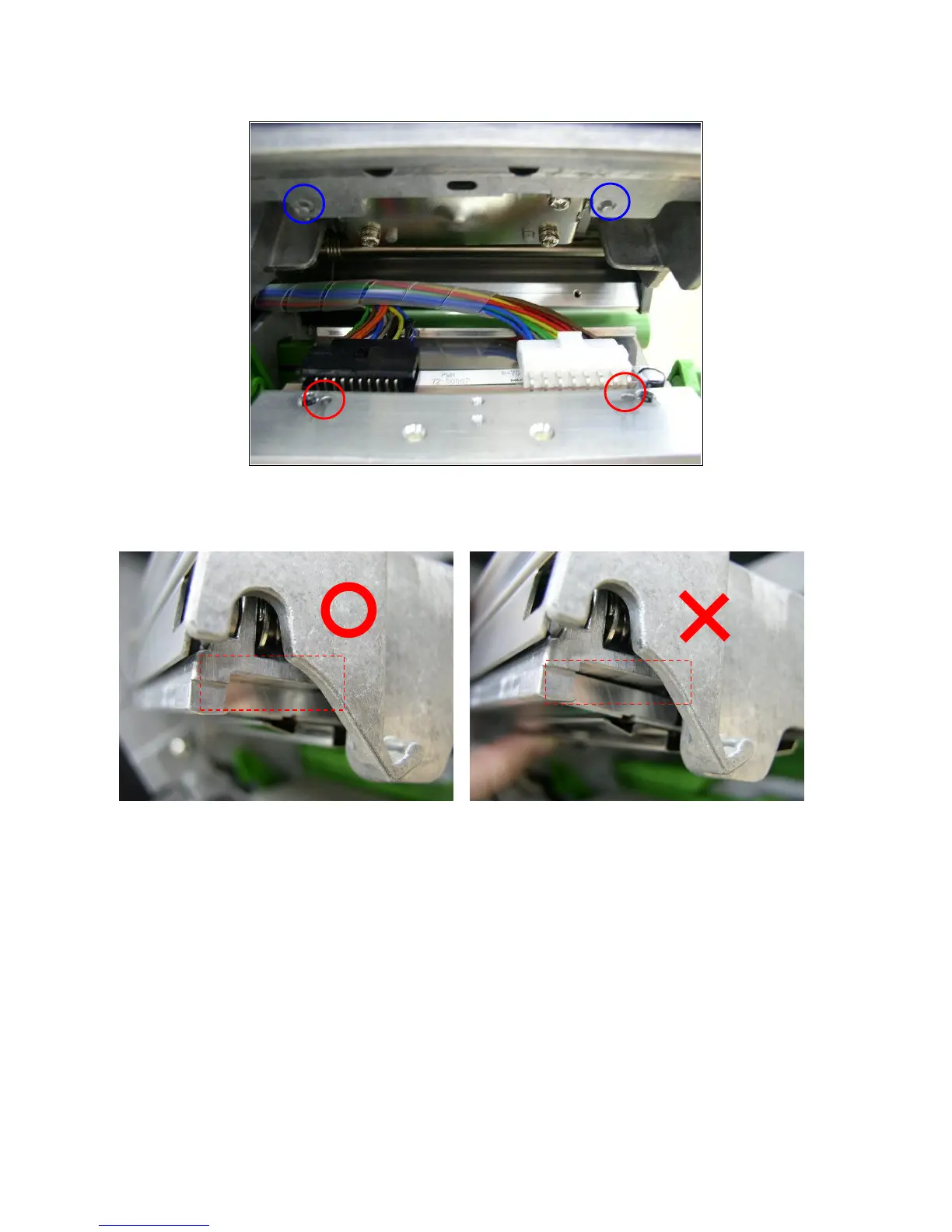

8. Check the print head has been totally closed to the print mechanism before secure the
print head by the previously removed thumbscrew.
9. Reassemble the parts in the reverse procedures.
Note: Please use the come with new print head screw to replace the print head
assembly. DO NOT use the original screw.
