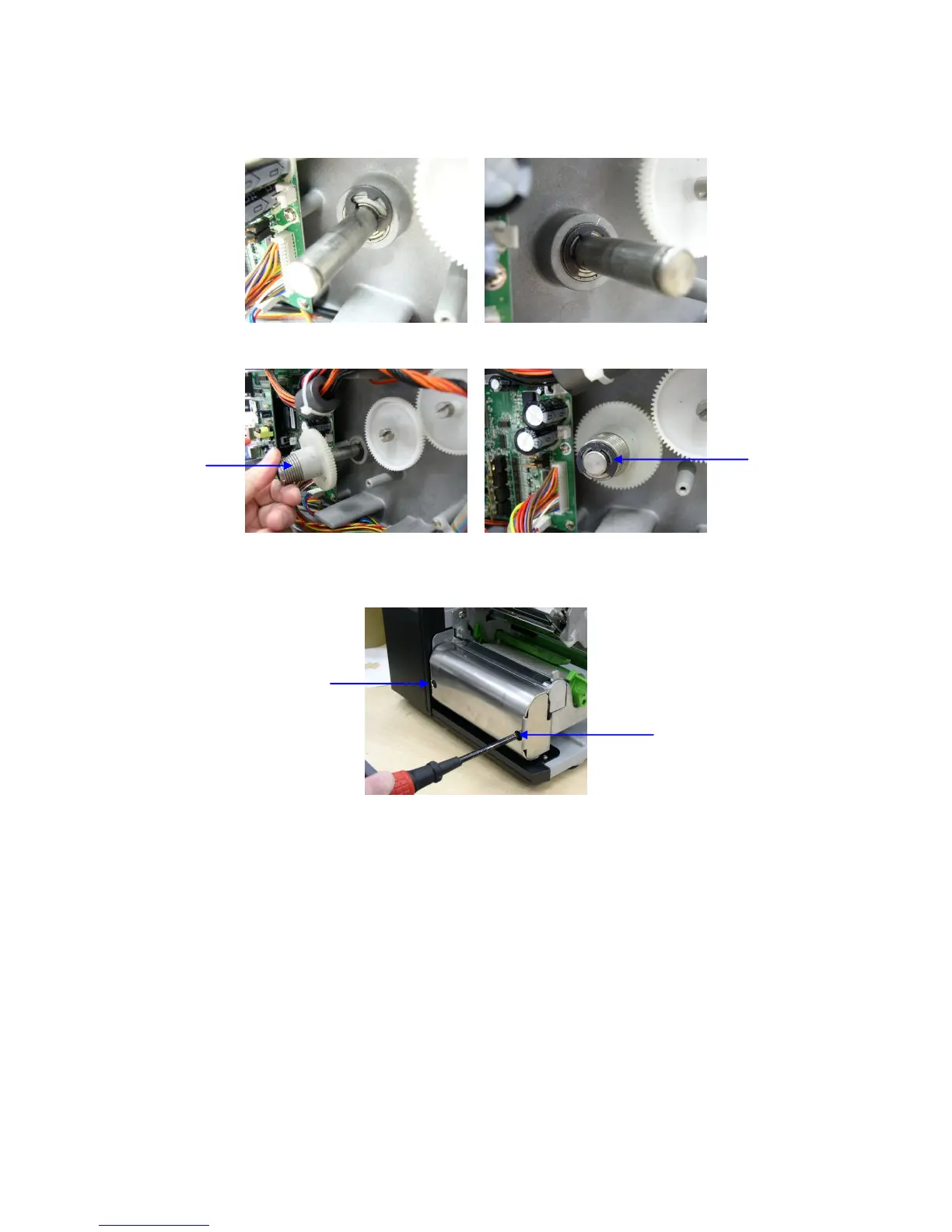

8. Use the E-ring driver and hammer to fix the internal rewind by E-ring. (Please refer to the
section 3.13 for “How to assemble e-ring?”)
9. Insert the gear (with spring) into the spindle and fix it with E-ring.
10. Refer to section 3.1 to remove the lower front panel.
11. Fasten the 2 screws to fix the label redirect front panel to the printer mechanism.
Gear with
spring
E-ring
Screw
Screw
