TSC TTP-244 Plus User Manual

3.6 Dump Mode

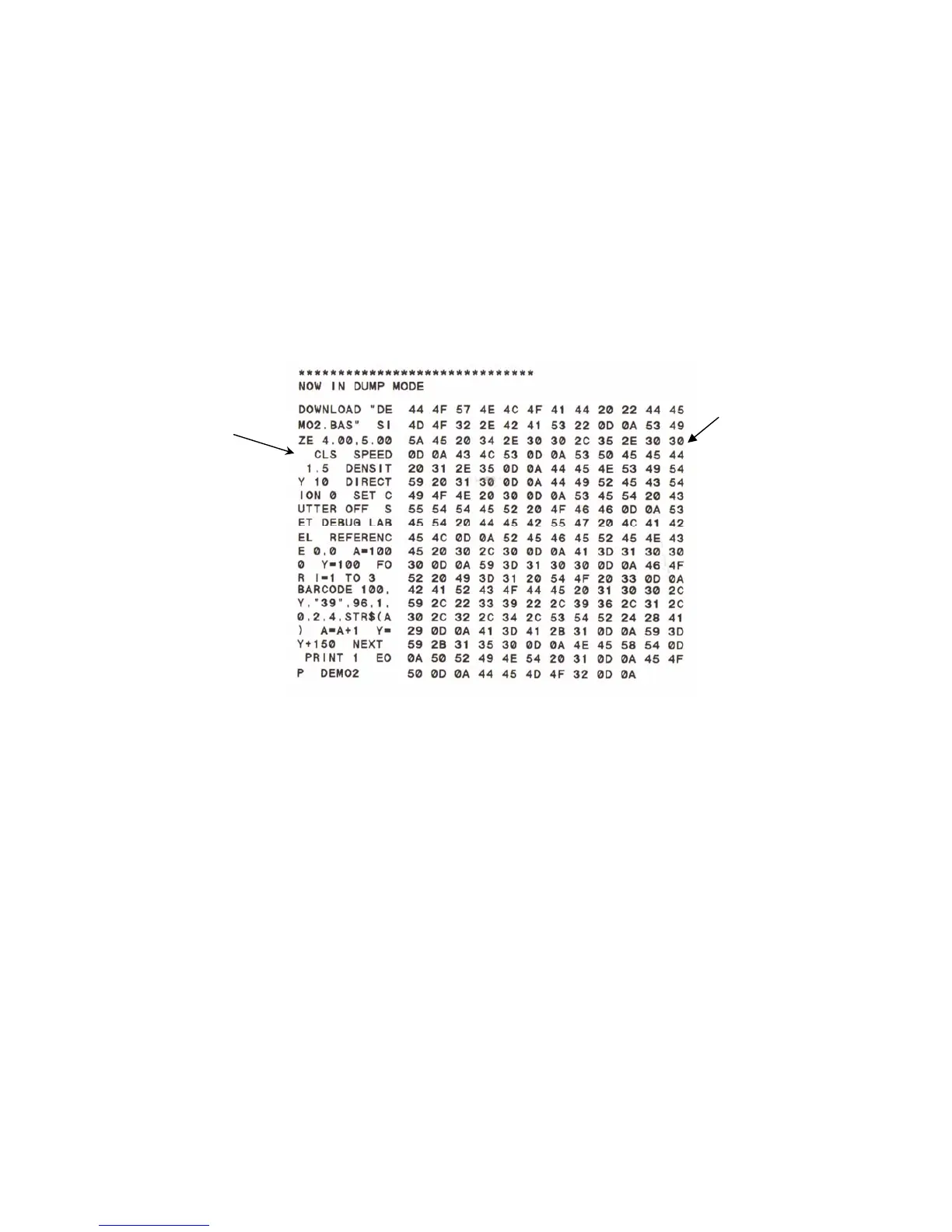

After the self test, the printer enters the dump mode. In this mode, any characters
sent from the host computer will be printed in two columns, as shown. The
characters received will be shown in the first column, and their corresponding
hexadecimal values, in the second. This is often helpful to users for the
verification of programming commands or debugging of printer programs. Reset
the printer by turning the POWER switch off and on.
Hex decimal data
related to left
column of ASCII
data
ASCII Data
18

TSC TTP-244 Plus Specifications

General

Resolution	203 dpi
Print Speed	4 ips
Print Method	Thermal Transfer / Direct Thermal
Weight	2.5 kg
Max. Print Width	4.25 inches
Max. Print Length	90 inches
Processor	32-bit RISC CPU
Interface	RS-232
Label Width	1 inch to 4.4 inches
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	5°C to 40°C
Storage Temperature	-40°C to 60°C
Humidity	25% to 85% non-condensing
Label Thickness	0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Dimensions	232 mm (W) x 156 mm (H) x 288 mm (D)
