TSC TTP-286MT Series User Manual

- 21 -

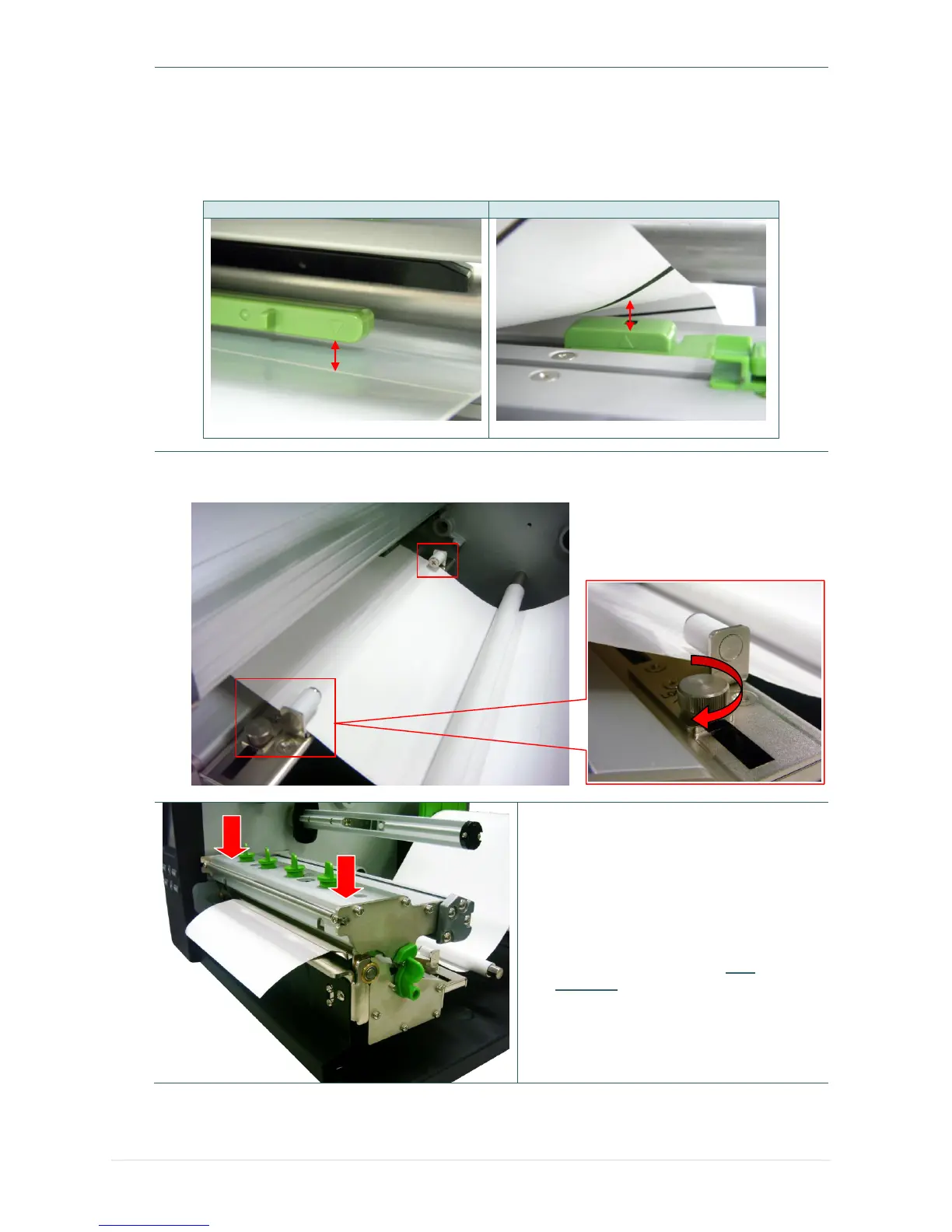

6. The media sensor position is moveable. Please make sure the gap or black mark is at the
location where media gap/black mark will pass through for sensing.
Note:
* The sensor location is marked by a triangle mark ▽ at the sensor housing.
Gap media
Black mark media
7. Loose the fixed screw to adjust the label guide to fit label width. Screw the fixed screw to lock the
label guide.
8. Close the print head mechanism. Make
sure the latches are engaged securely.
9. Using the front display panel, set media
sensor type and calibrate the selected
sensor.
Note:
* Please calibrate the gap/black mark
sensor when changing media.
* Please refer to video on TSC
YouTube or driver CD.
Lock
