3.2 Loading the Ribbon
3.2.1 Loading the Ribbon

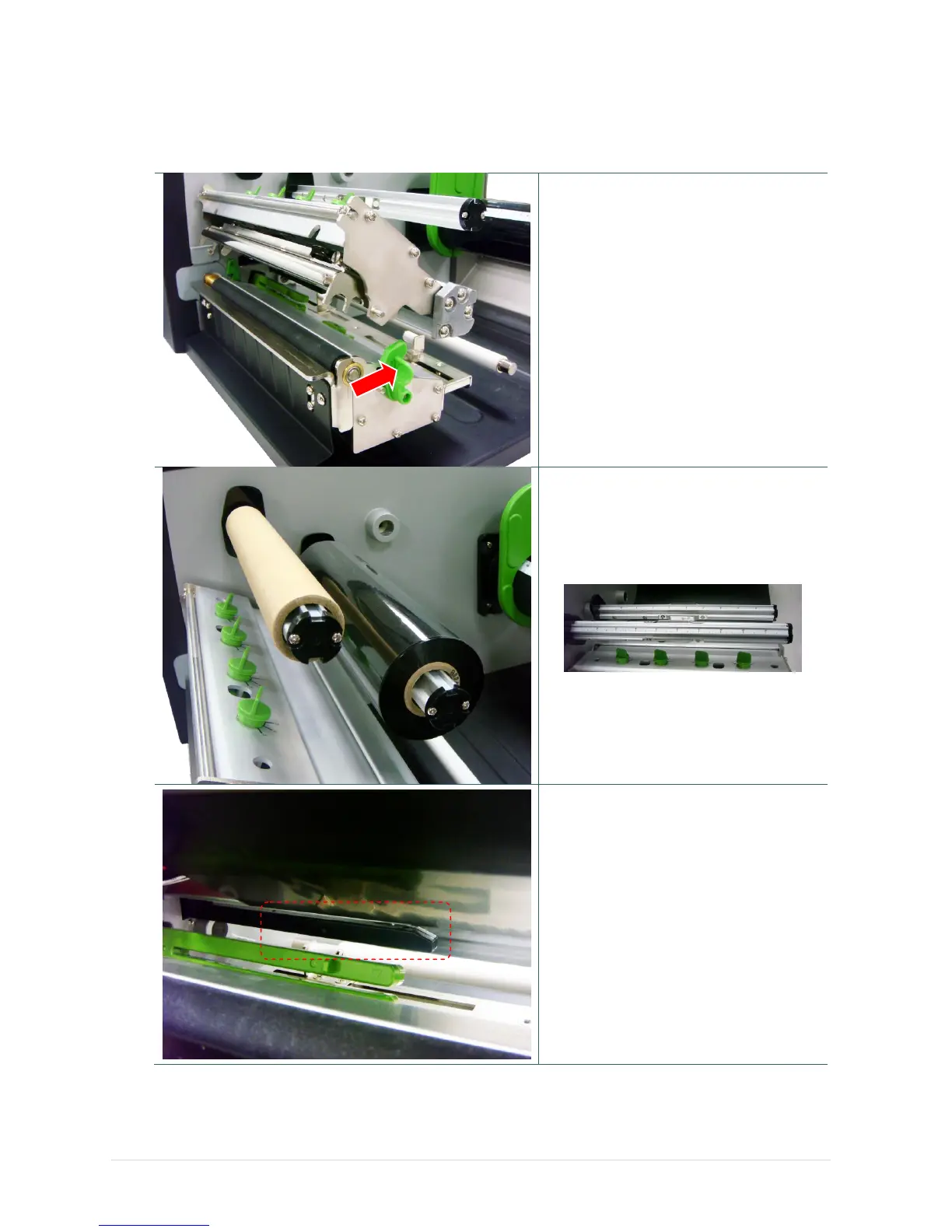

1. Lift the handle to open the printer right
side cover. Push the print head
release lever to open the print head
mechanism.
2. Install the ribbon and paper core onto
the ribbon supply spindle and ribbon
rewind spindle. Make sure the ribbon
& paper core are set at the center of
the spindle. (You can refer to the
ruler on the spindles.)
3. Thread the ribbon through the ribbon
sensor slot and then through the open
space in between print head and
platen.
Ribbon
sensor
