3. Use a screwdriver to screw off 6 screws on the lower inner cover.

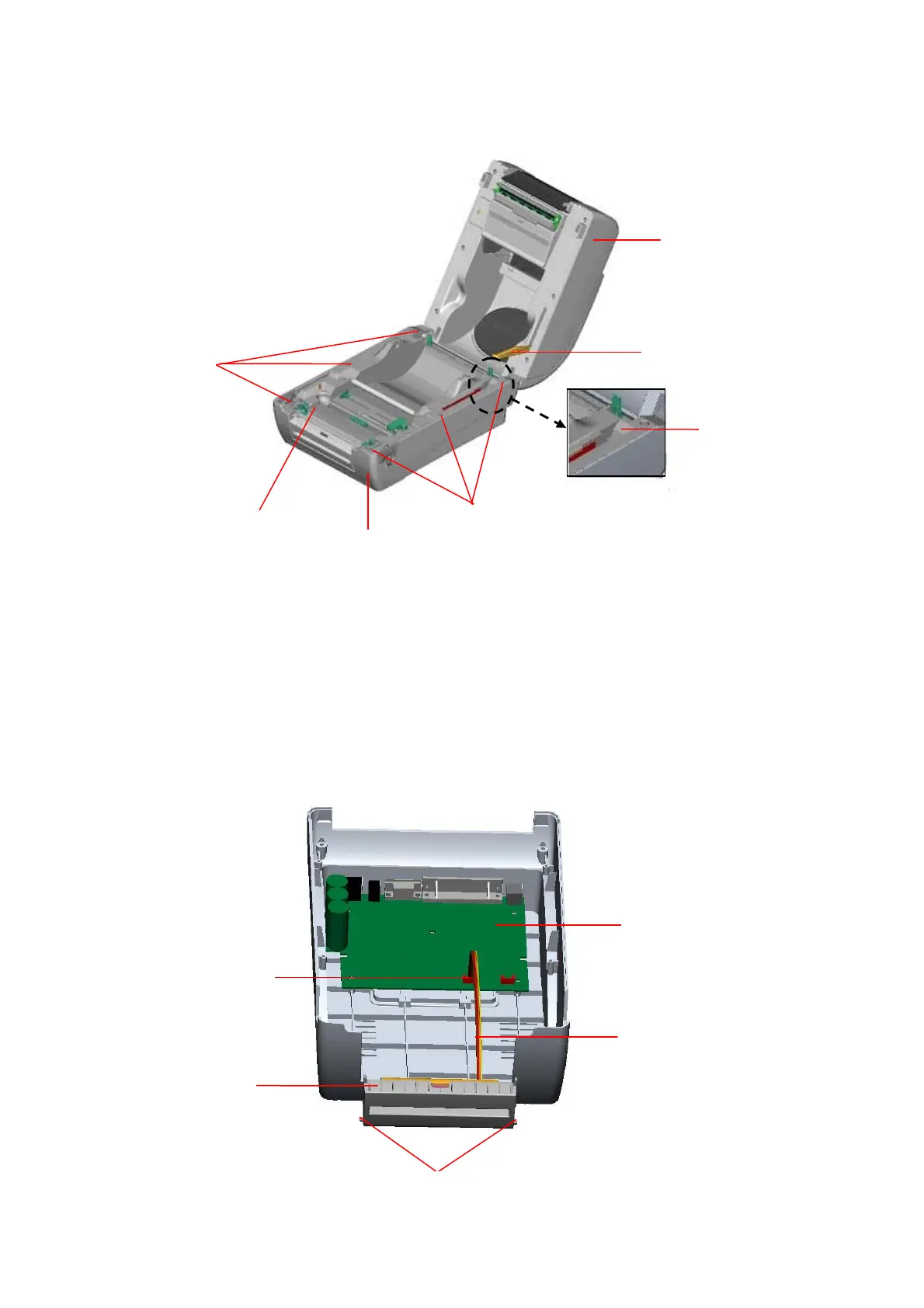

Fig. 13 Remove 6 screws from lower inner cover
4. Upside down the printer. Remove two screws at the hinge and remove one
screw at memory card cover.
5. Hold the lower cover to lift up the top cover open levers to separate the lower
inner cover and the lower cover.
6. Arrange the cable through the bezel. Connect the peel-off panel cable to the
5-pin socket on printer PCB.
Peel-off
panel
Peel-off panel
Cable
5-pin Socket
PCB
Tenon
Lower Cover
Screws
Lower Inner
Cover
Top Cover
Screws
Top Cover Support
Flute
