TSC TTP-345 User Manual

11

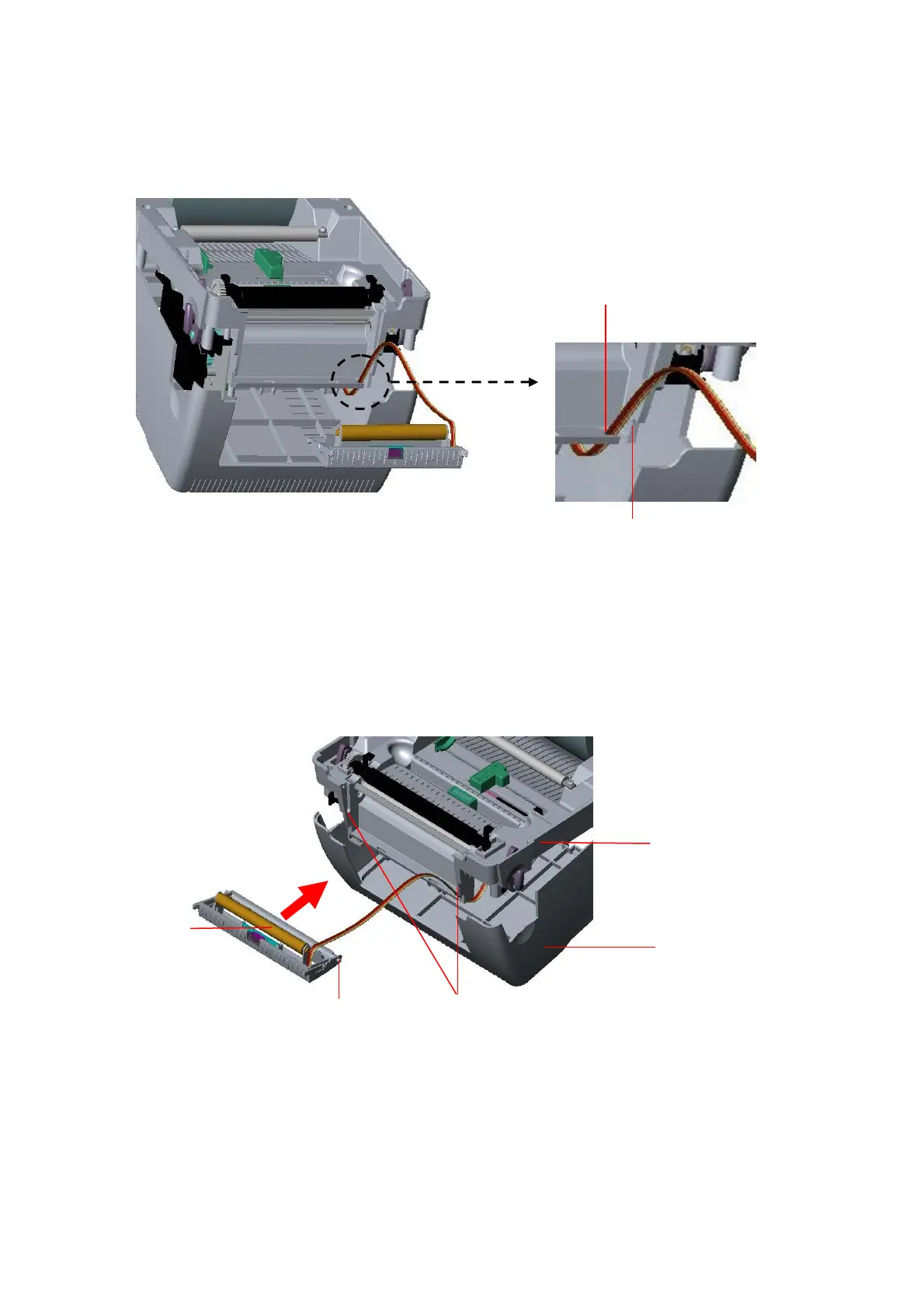

Fig. 14 Connect peel-off sensor cable to main board
Fig. 15 Peel-off sensor cable installation
7. Insert the peel-off tenons into the lower inner cover mortises until tenons snap
into places.
Fig. 16 Peel-off panel installation (I)
8. Arrange the lower inner cover back to the lower cover.
Roller
Tenon
Mortise
Lower Inner Cover
Lower Cover
Bezel
Mortise
