Instrument Operation
5-
17

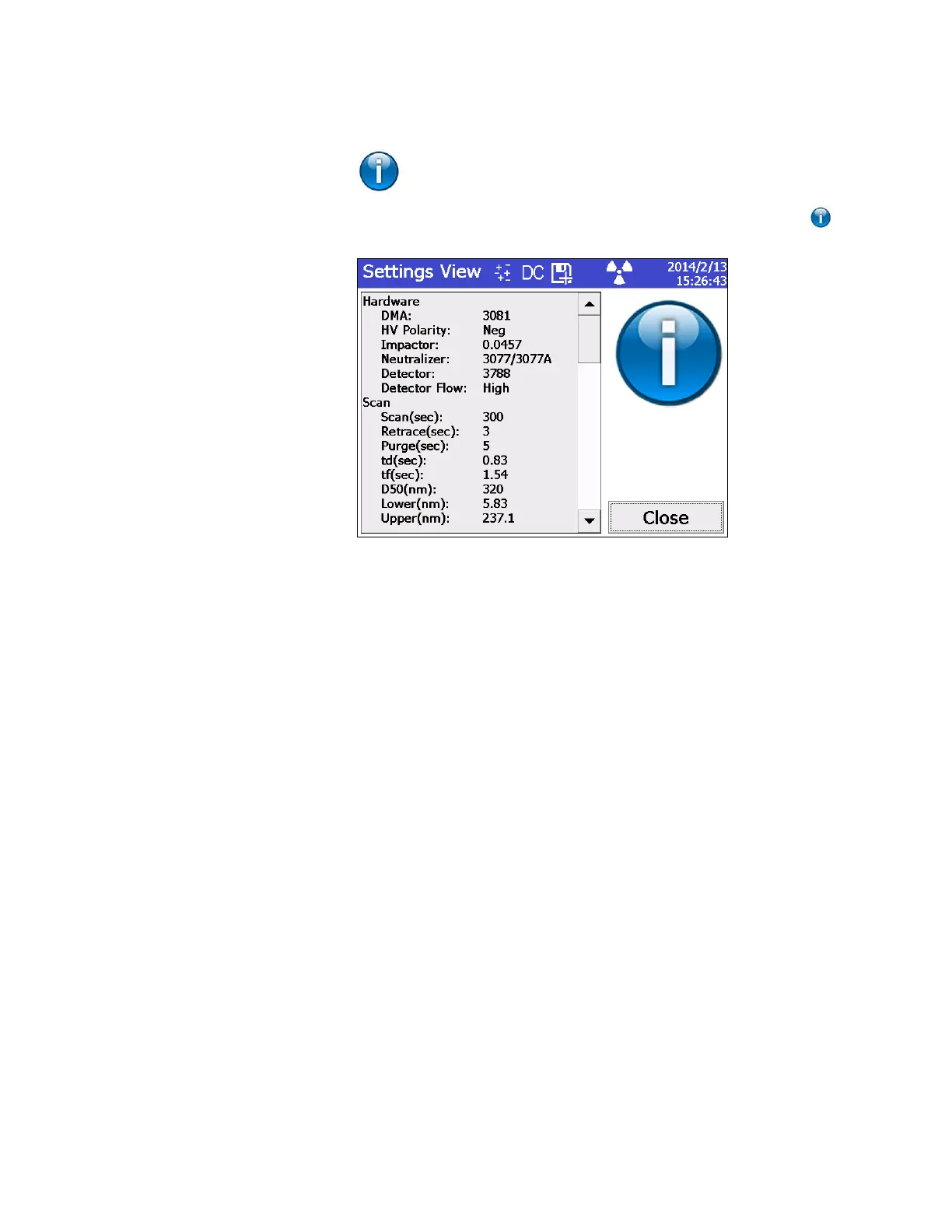

Viewing Settings
You can view all your select
ed settings including hardware,
scan, flow, correction, gas, scheduling, d
ate and time,
communications, x-axis, and y
-axis settings on one screen. To
view the settings, touch t
he information button on the main screen
and
use your finger or a stylus
to scroll through the displayed settings.
