4-4 Electrostatic Classifier Model 3082 and SMPS Spectrometer Model 3938
Side P a n e l
The main components of the Electrostatic Classifier side panel are shown
in the figure below. Components include the neutralizer, data acquisition
port, high-voltage power socket, flow inlets, and DMA base plate.

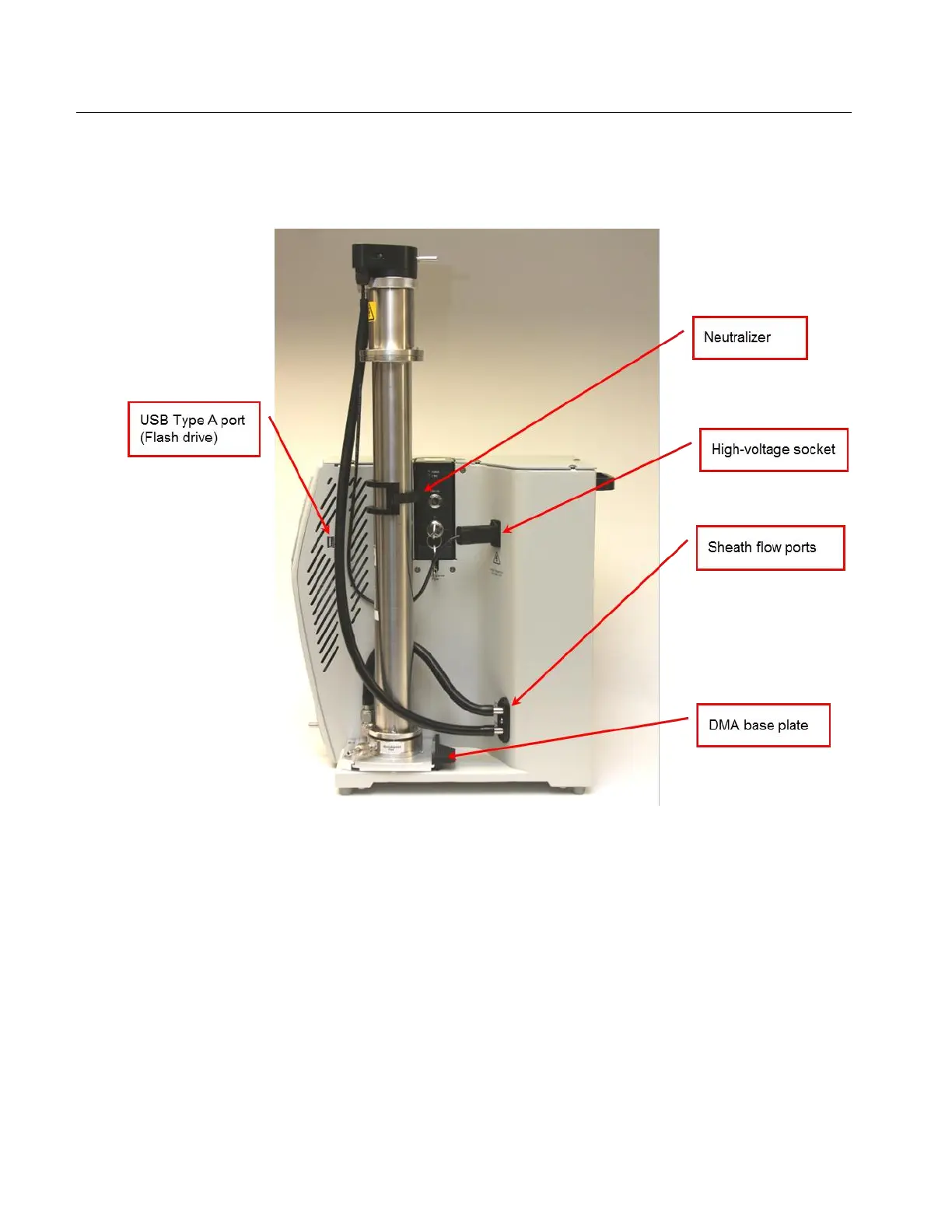

Figure 4-3
Electrostatic Classifier Side Panel
