6-12 Electrostatic Classifier Model 3082 and SMPS Spectrometer Model 3938
6. Disconnect the ribbon cable from the flowmeter to remove it.
7. Reconnect the ribbon cable to the new flowmeter.

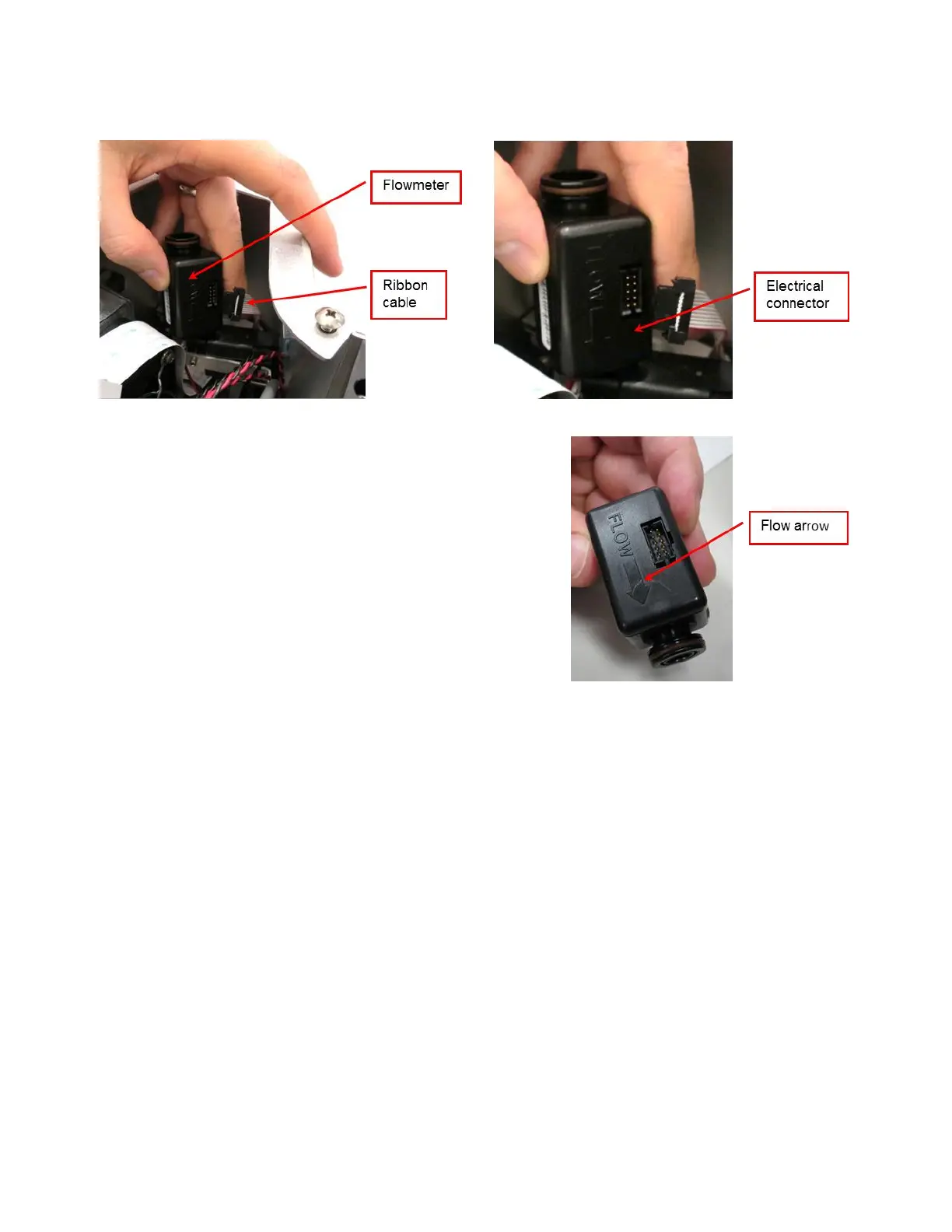

8. Insert the new flowmeter
with the arrow pointing
down and the electrical
connector pointing to the
left (when viewing the
instrument from the front).
Rock the flowmeter into
place; twist if necessary
until the flowmeter is fully
seated.
9. Replace the upper flow
manifold, aligning the bore
to the flowmeter. With a
consistent, but gentle,
force, rock the manifold to
seat the O-ring in place.
10. Using the 9/64-inch hex wrench, replace the three screws you removed
in step 4.
11. Replace the instrument cover.
