Unpacking and Setting Up 2-9

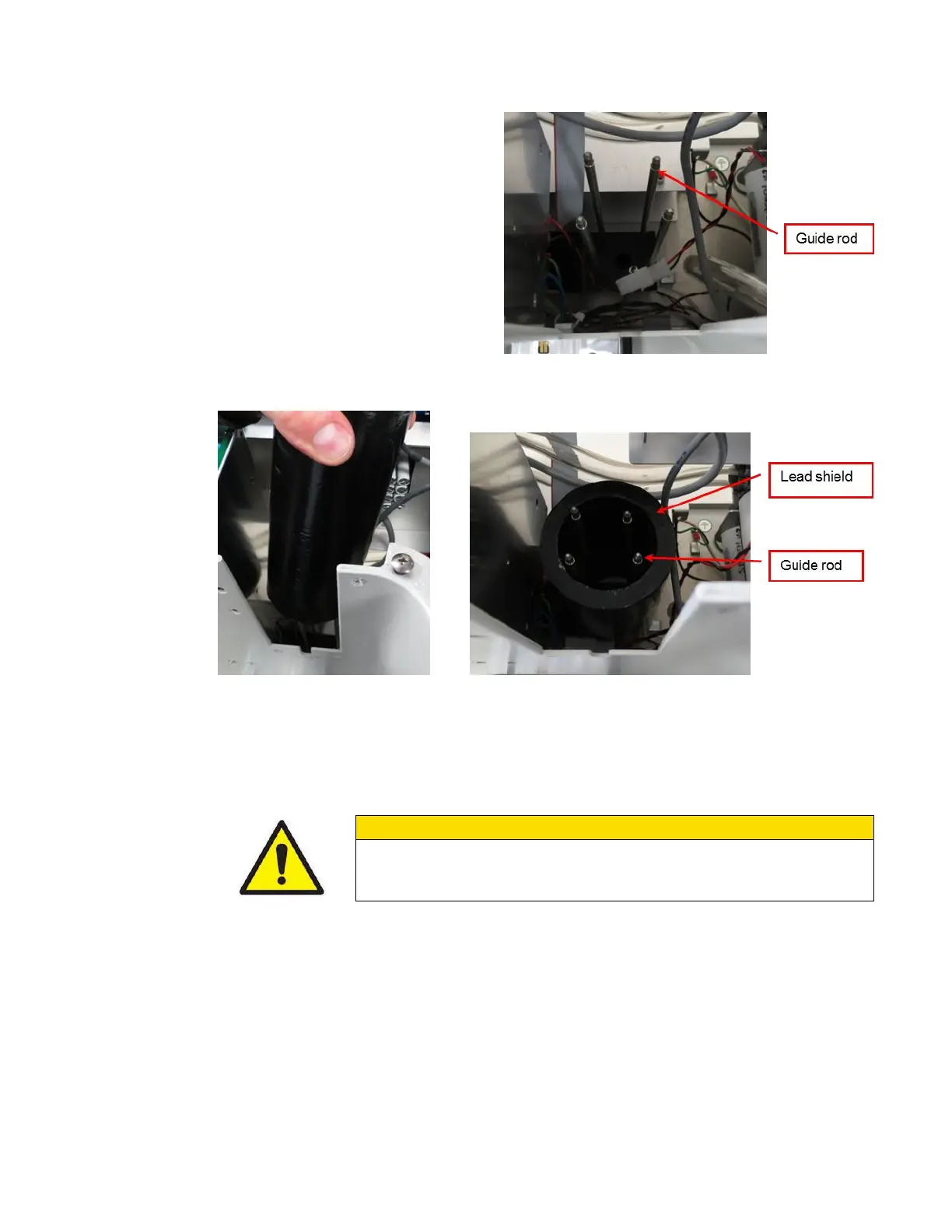

8. In the
classifier,
locate the four
guide rods
used to place
the lead shield
in the correct
position.
9. The lead shield fits around the guide rods. Carefully slide the lead
shield into place. Verify that no cables are pinched.
10. Slide the flag assembly housing back into place over the rods. Line
up the 1/4-inch holes on the bottom of the housing with the guide rods
and slide the housing back into place over the rods.
11. Screw the housing in place using the screws you removed in step 5.
12. Reinstall the classifier cover.
C a u t i o n
Do not ship the Model 3082 Electrostatic Classifier with the lead
shielding installed, or damage to the classifier may result.
