TSI Instruments 3082 User Manual

2-26 Electrostatic Classifier Model 3082 and SMPS Spectrometer Model 3938

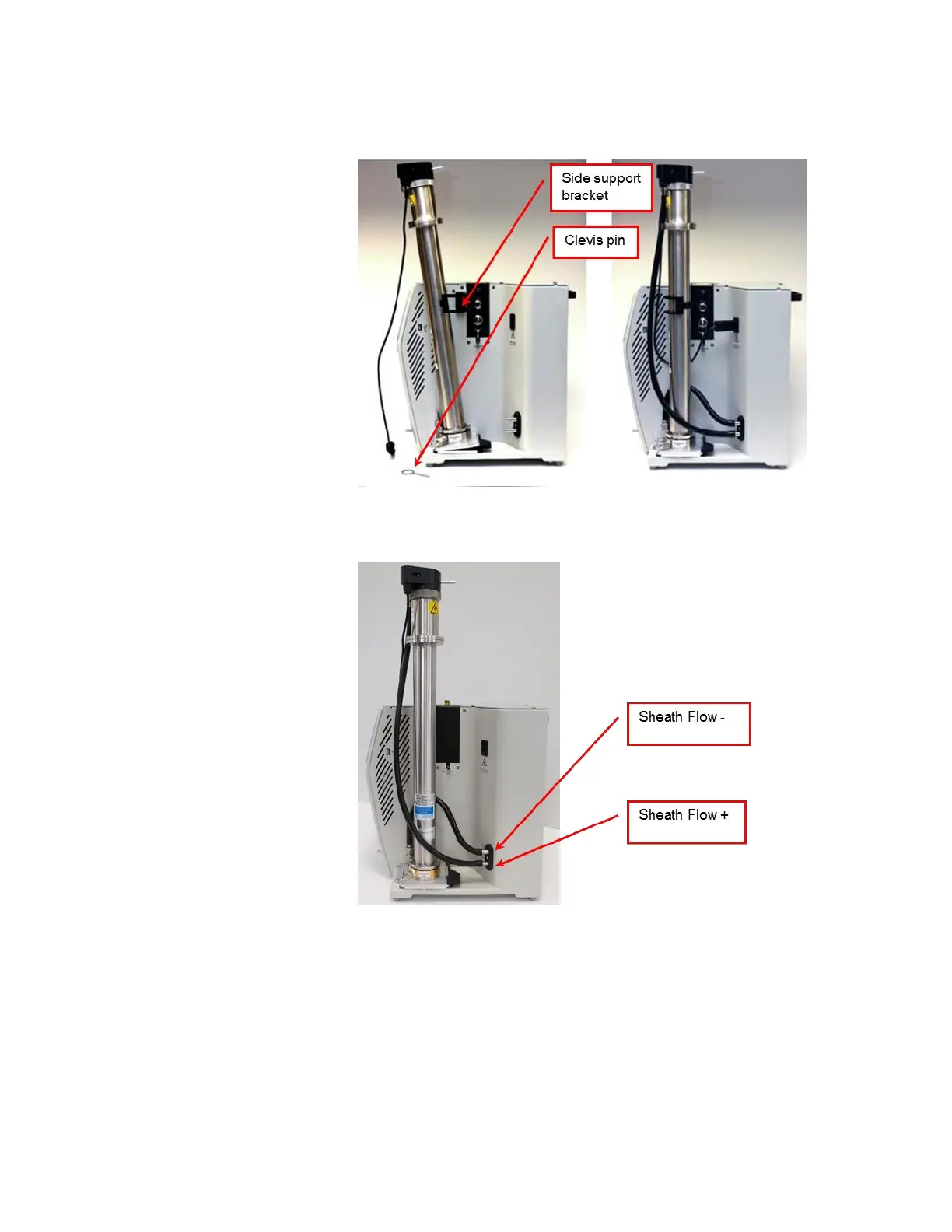

6. If using the side-support bracket accessory, close the bracket and
replace the clevis pin.
7. Push the end of the long piece of tubing onto the Sheath Flow + inlet
on the classifier. Push the end of the shorter length of tubing onto the
Sheath Flow - inlet.
8. If you are operating the classifier with a neutralizer installed, you must
connect the Polydisperse flow. Remove the ¼-inch black conductive
tubing from the Accessories Kit. Using the provided tube cutter, or a
clean razor blade, cut a 21-inch length of tubing.

TSI Instruments 3082 Specifications

General

Brand	TSI Instruments
Model	3082
Category	Laboratory Equipment
Language	English
