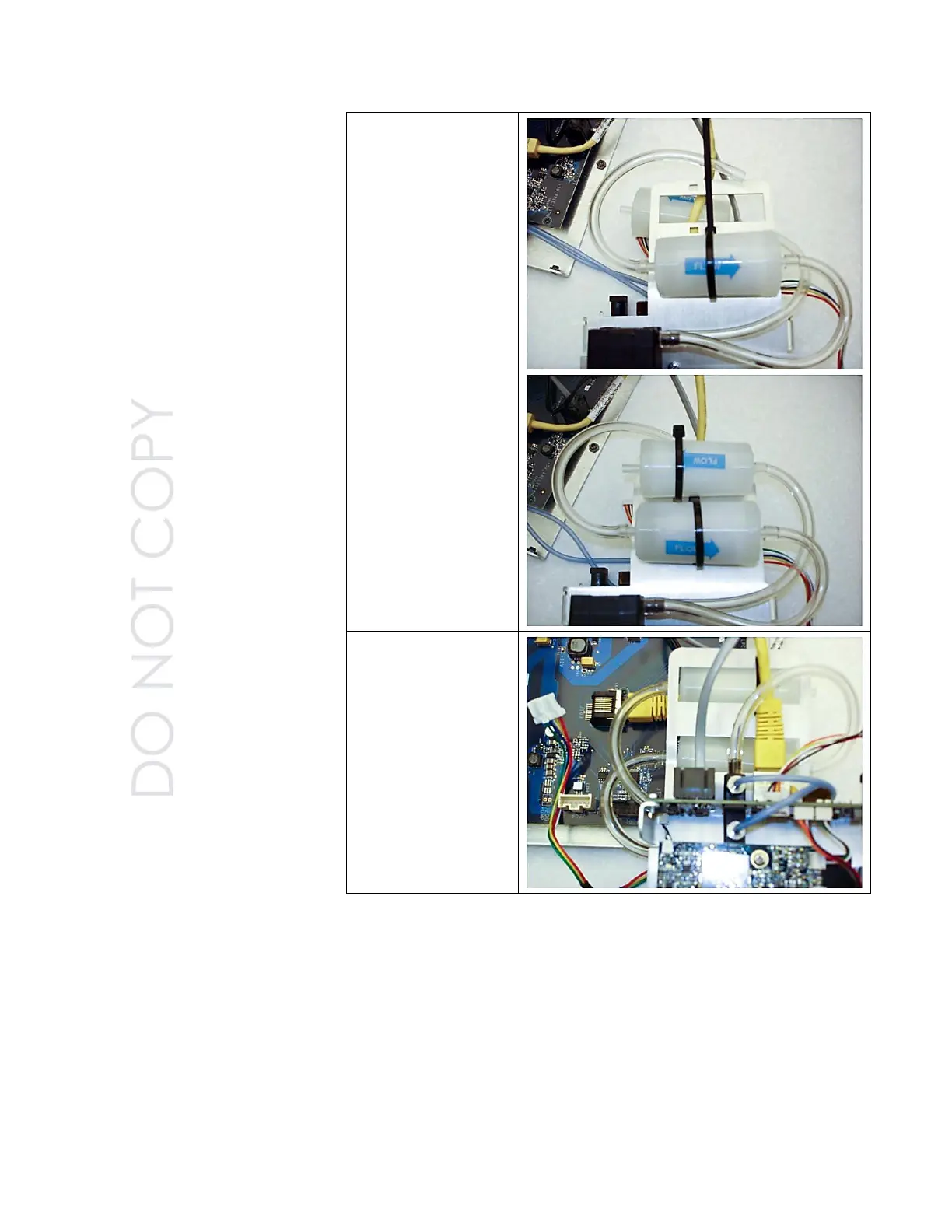

11. Take the new
assembly of the
pump and filters
and mount them
to the frame that
houses the pump
and the filters.
Start by first tie-
wrapping the
filters as shown.
12. Next connect
the pump
suction side
(inlet) to the
outlet of the
optics chamber
as shown in the
photo.
