General Maintenance–Model 7301-P 4-11

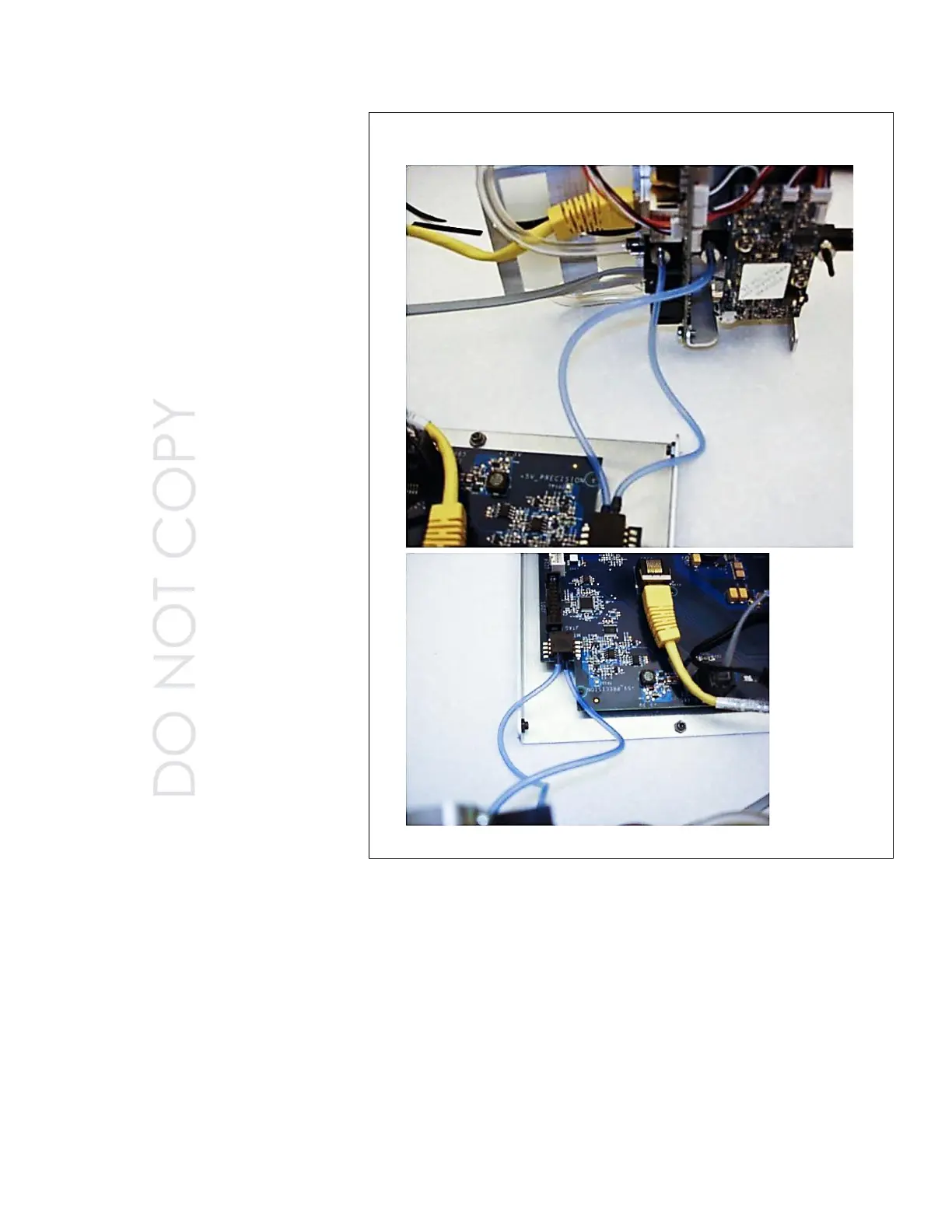

13. Note the direction of connections for the pressure transducer
between the optics outlet and the main board.
14. Reassemble unit in reverse order.
