5. CONNECTORS AND PINS

5 Connectors and pins
Vision 307 is equipped with a 34-pin main connector and up to 4 HSD connectors. The main connector is
compatible with the TYCO Super Seal 1 mm series.
This section defines the pinouts of the connectors, while section 10 lists the mating connectors and their
manufacturer part numbers. The detailed description of signals is described in section 6.
5.1 Available connectors
Depending on whether the device is a Vision 307 or Vision 307Plus product, the device is equipped with the
Main Connector (C1) and the connectors A, B, C, and D — or a subset of them. Figure 3 shows the backside
of a Vision 307 device equipped with all connectors. Table 4 shows the available connectors for the various
products.

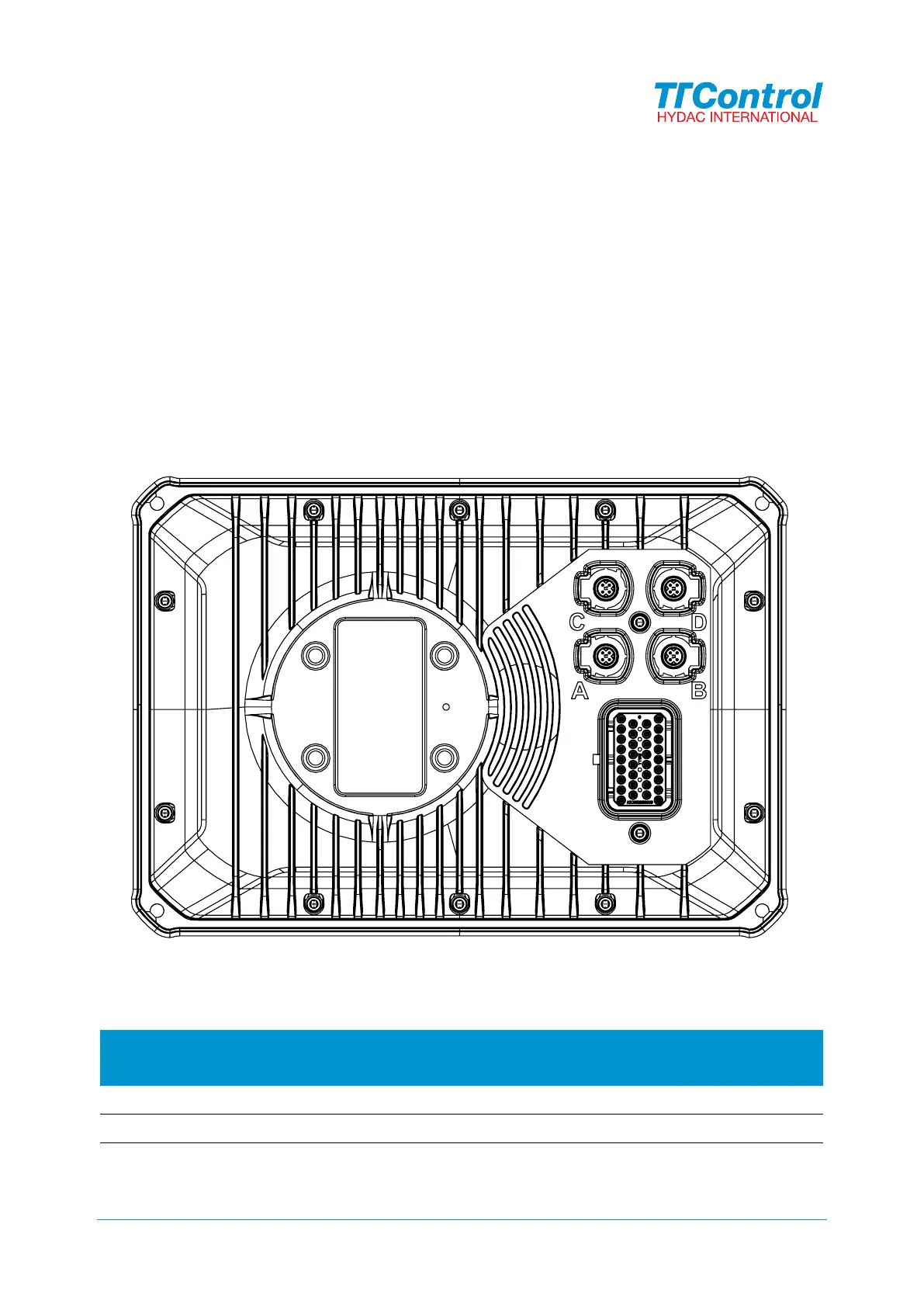

Figure 3: Vision 307Plus device with all connectors — backside view
The available connectors for the various Vision 307 family products are:
Products Connectors
C1 A B C D
Vision 307 Yes Yes Yes No No
Vision 307Plus Yes Yes Yes Yes Yes
Table 4: Supported connectors for the various Vision 307 family products
