TTControl Vision 307 - USB OTG Connector (B) and USB HOST Connector (D); Connector (C)

5. CONNECTORS AND PINS
Pin no./Shield Name (100BASE-TX)
(Coding A)
1 ETH_TX+
2 ETH_RX-
3 ETH_TX-
4 ETH_RX+
Shield SHIELD
5.4 USB OTG connector (B) and USB HOST connector (D)
The USB OTG is supported by the Vision 307 and Vision 307Plus products.
The USB HOST is supported by Vision 307Plus products.
The connectors B and D are color-coded brown.
Mates with: Rosenberger D4K14A-1D5A5-F

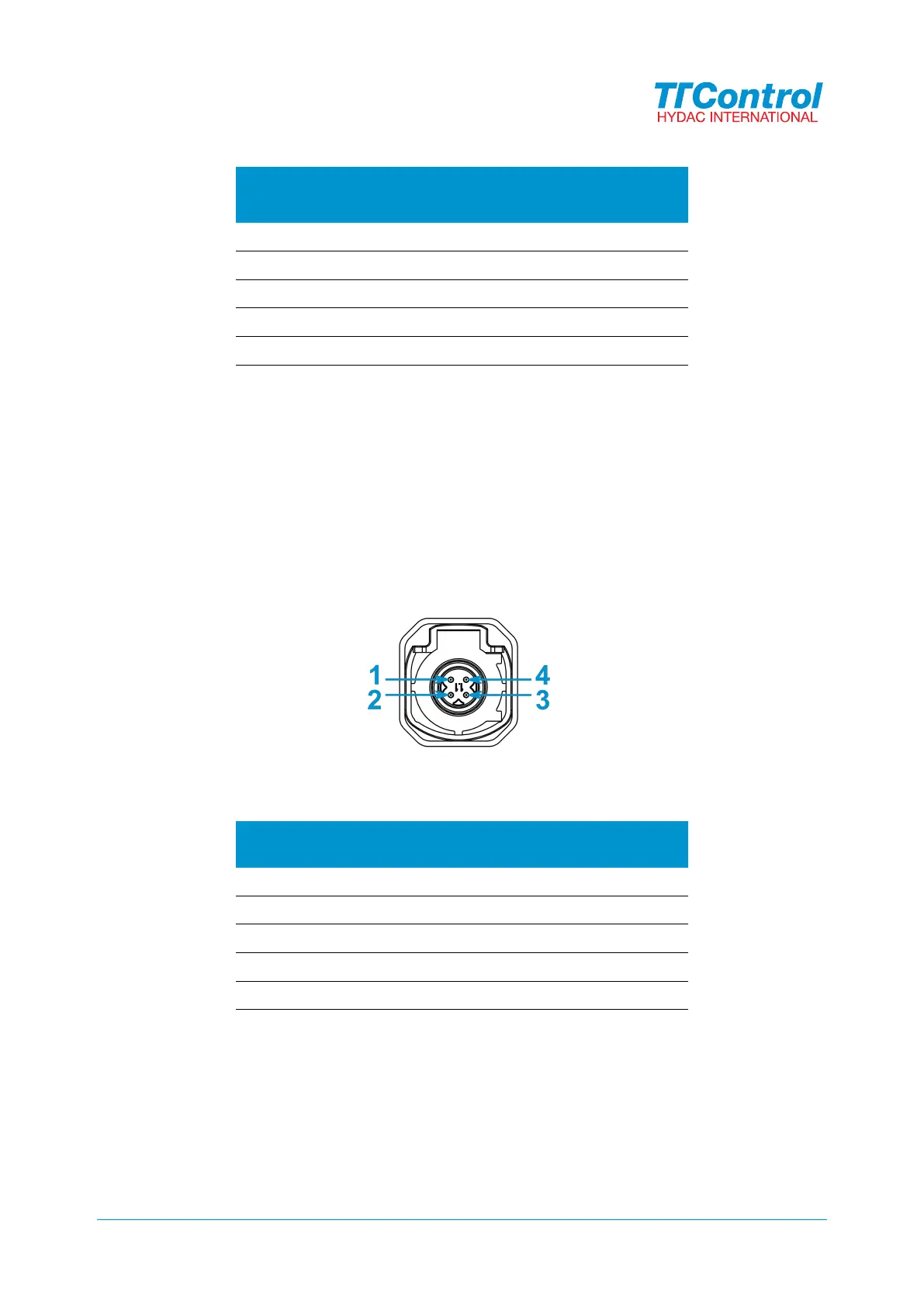

Figure 6: Connector D pinout
Pin no./Shield
(Coding F)
Name
1 USB D+
2 USB VBUS
3 USB D-
4 USB GND
Shield SHIELD
5.5 Connector (C)
Reserved for future use.
