5. CONNECTORS AND PINS
20 out Camera 4 Supply
19 Camera 4 GND
13 bidirectional CAN 0 High bidirectional CAN 0 High
5 bidirectional CAN 0 Low bidirectional CAN 0 Low
12 bidirectional CAN 1 High bidirectional CAN 1 High
4 bidirectional CAN 1 Low bidirectional CAN 1 Low
11 bidirectional CAN 2 High
3 bidirectional CAN 2 Low
24 bidirectional CAN 3 High
32 bidirectional CAN 3 Low
25 out RS-232 TX out RS-232 TX
33 RS-232 GND RS-232 GND
34 in RS-232 RX in RS-232 RX
30 in RTC supply in RTC supply
For more information on recommended connectors and wires to interface with a Vision 307 device, refer to
section 10.
5.3 100BASE-TX connector (A)
100BASE-TX is supported by the Vision 307 and Vision 307Plus products.
The connector A is color-coded black.
Mates with: Rosenberger D4K14A-1D5A5-A

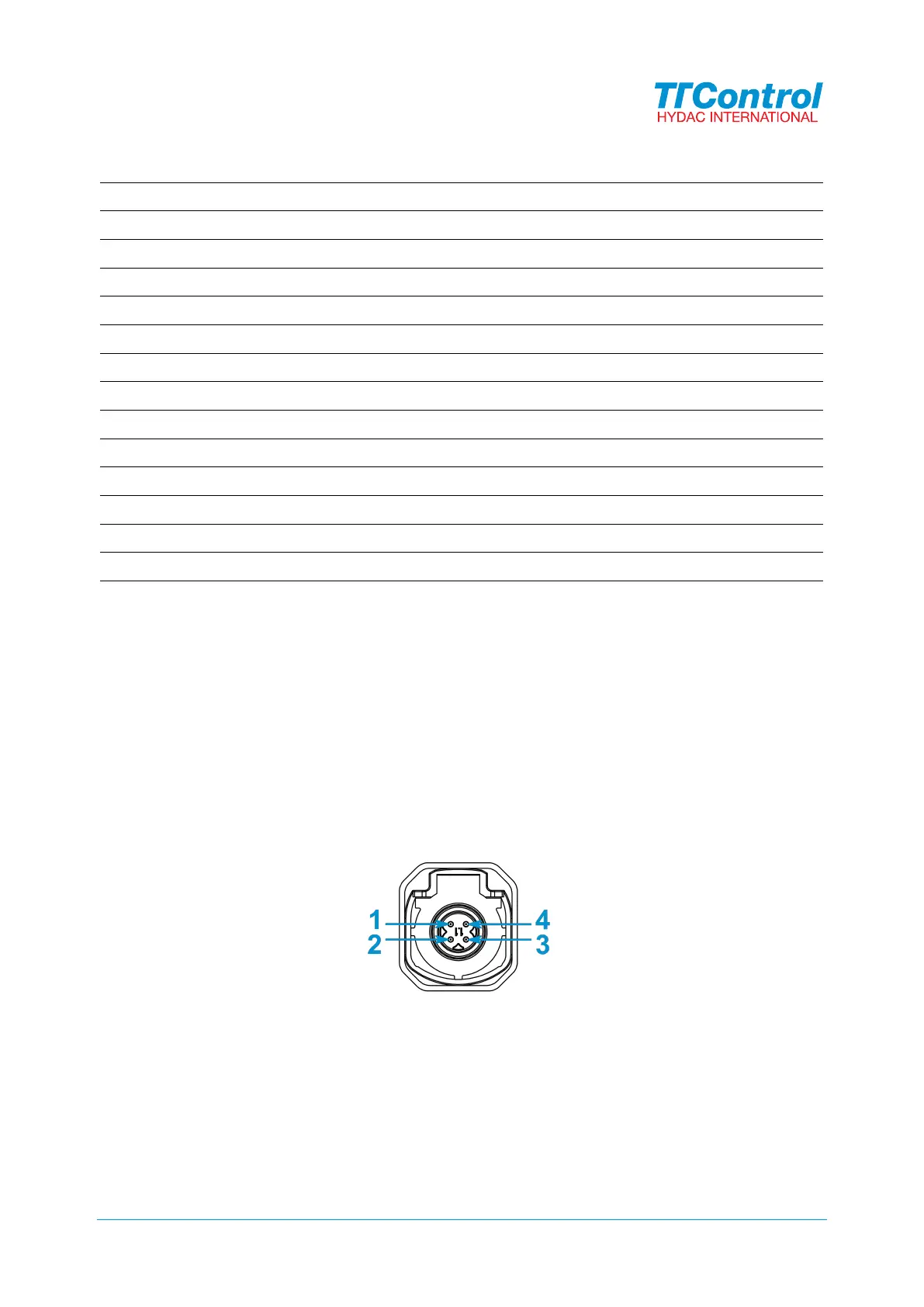

Figure 5: Connector A pinout
