1. GENERAL DESCRIPTION
– Width: 194 mm
– Height: 136 mm
– Depth: 38 mm
– Depth, incl. connector: 44 mm
• Operating ambient temperature: -30 to +70
○
C
• Storage temperature: -30 to +85
○
C
• IP6K5 rated housing
Other device dimensions, including tolerances, weight and other physical specifications for Vision 307 can
be found in the Product Drawing (PD) [4]. Additional physical specifications, including thermal requirements,
can be found in the Mounting Requirements Document (MRD) [2].
1.5.4 Block diagrams
1.5.4.1 Vision 307

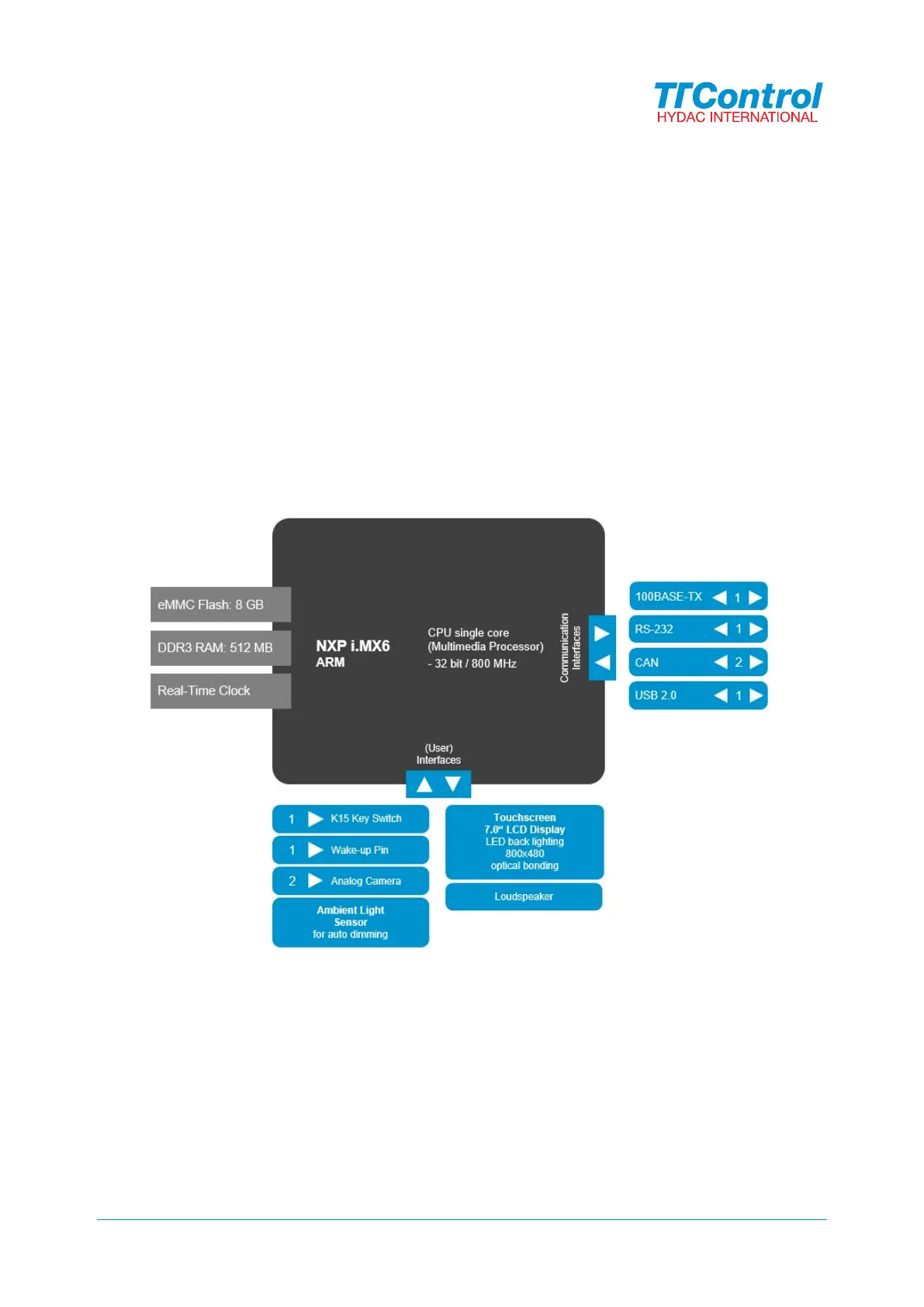

Figure 1: Block diagram for Vision 307 products
1.5.4.2 Vision 307Plus
