5. CONNECTORS AND PINS
5.2 Main Connector (C1)
Mates with: TE Connectivity 4-1437290-0

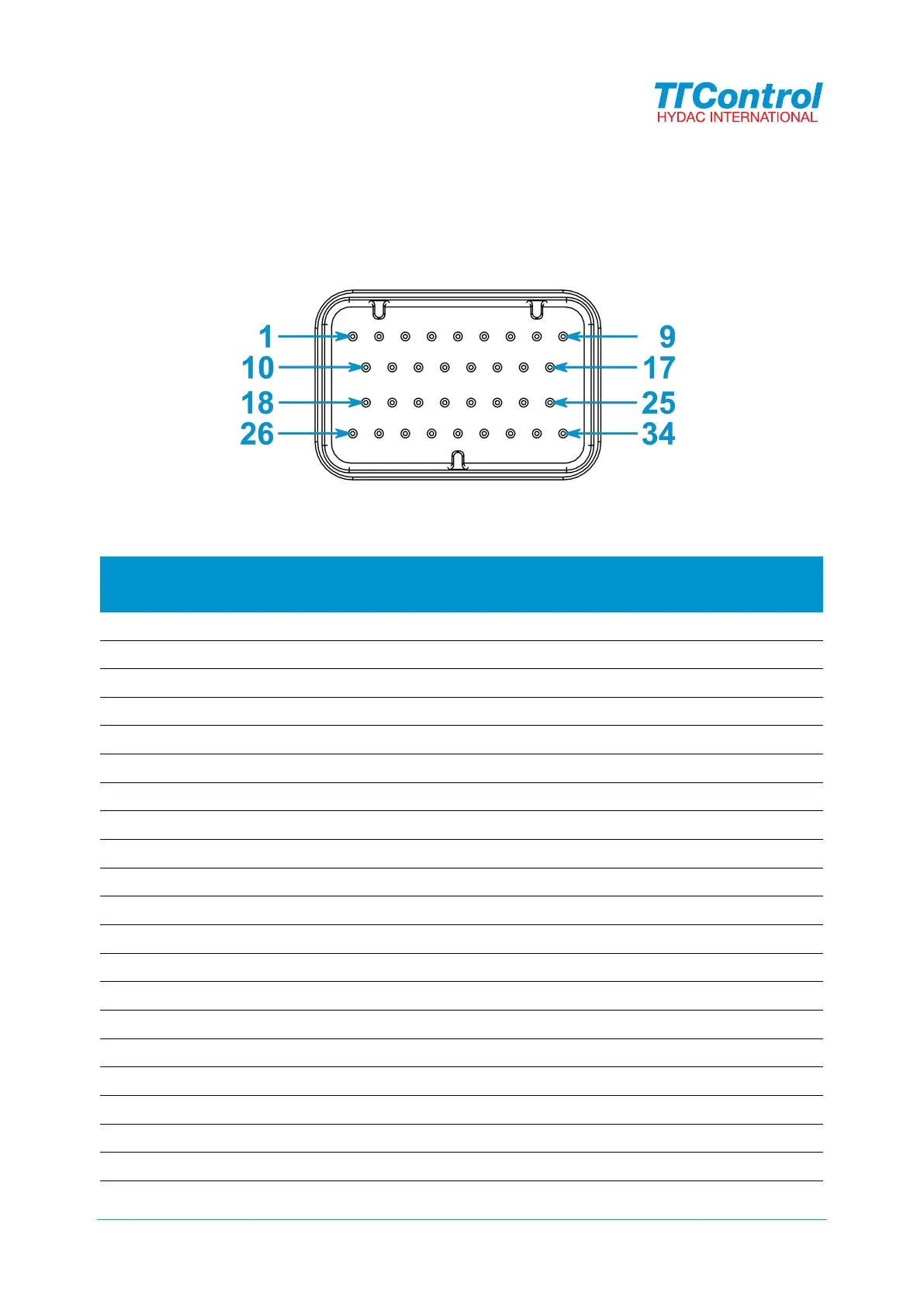

Figure 4: Main Connector C1 pinout
Vision 307 Vision 307Plus
Pin no. Direction Function Direction Function
26 BAT+ BAT+
27 in Service Enable in Service Enable
18 in Terminal 15 in Terminal 15
10 in Wake-up in Wake-up
1 BAT- BAT-
2 BAT- BAT-
8 in Video 1 Signal in Video 1 Signal
16
Video 1 GND
Video 1 GND
9 out Camera 1 Supply out Camera 1 Supply
17 Camera 1 GND Camera 1 GND
6 in Video 2 Signal in Video 2 Signal
14
Video 2 GND
Video 2 GND
7 out Camera 2 Supply out Camera 2 Supply
15 Camera 2 GND Camera 2 GND
29 in Video 3 Signal
31 Video 3 GND
28 out Camera 3 Supply
23 Camera 3 GND
21 in Video 4 Signal
22 Video 4 GND
