10. CONNECTORS AND CABLE SPECIFICATIONS

10 Connectors and cable specifications
This section lists recommended plug housings for mating connectors, cables, receptacle contacts, cavity
plugs, and blind plugs. For specifications of the Vision 307 device connectors, see section 5.
For detailed specifications, please contact the supplier or refer to the supplier’s website.
10.1 Plug housings
TTControl recommends the following plug housings for mating connectors:
Connector Description Mating connector part no. Supplier
C1 Main connector 4-1437290-0 TE Connectivity
A Ethernet D4K14A-1D5A5-A Rosenberger
B USB OTG D4K14A-1D5A5-F Rosenberger
C reserved for future use D4K14A-1D5A5-C Rosenberger
D USB HOST D4K14A-1D5A5-F Rosenberger

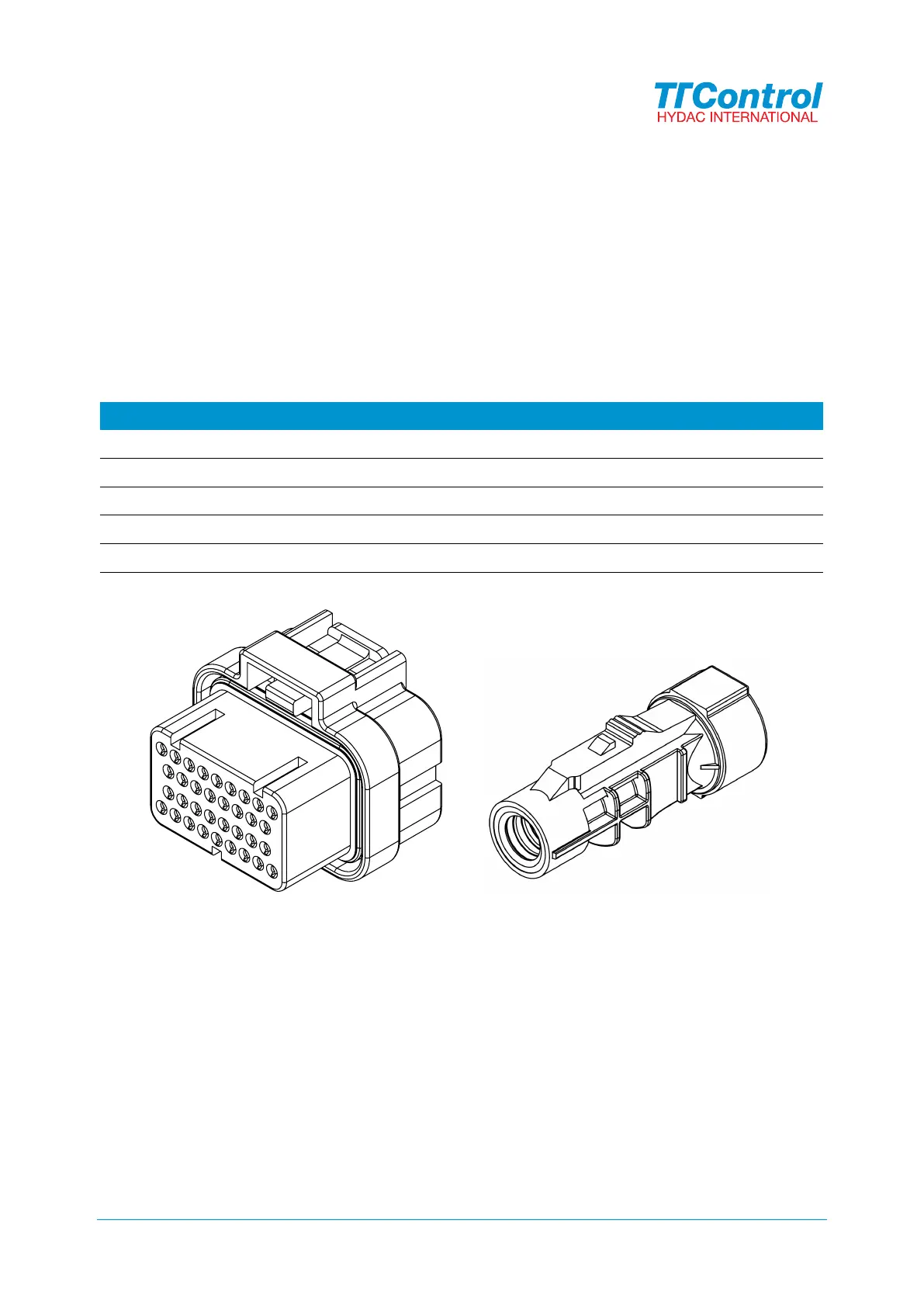

(a) Main connector (b) Connectors A, B, C, D
Figure 12: Plug housings
