9. Displays and general operating settings (cont.)
9.2.4 Menue 4 - controller air temperature (AIR controller) (cont.)
OK
Cancel
reduction scaling
controller AIR summer release
reduction blow-out temperature
reduction start temperature
controller AIR D-rate
1
2 3
4
5 6 7 8 9 1
0
1
2
OFF
outdoor sensor
/contr. AIR temperature/red. blow-out tempe
r

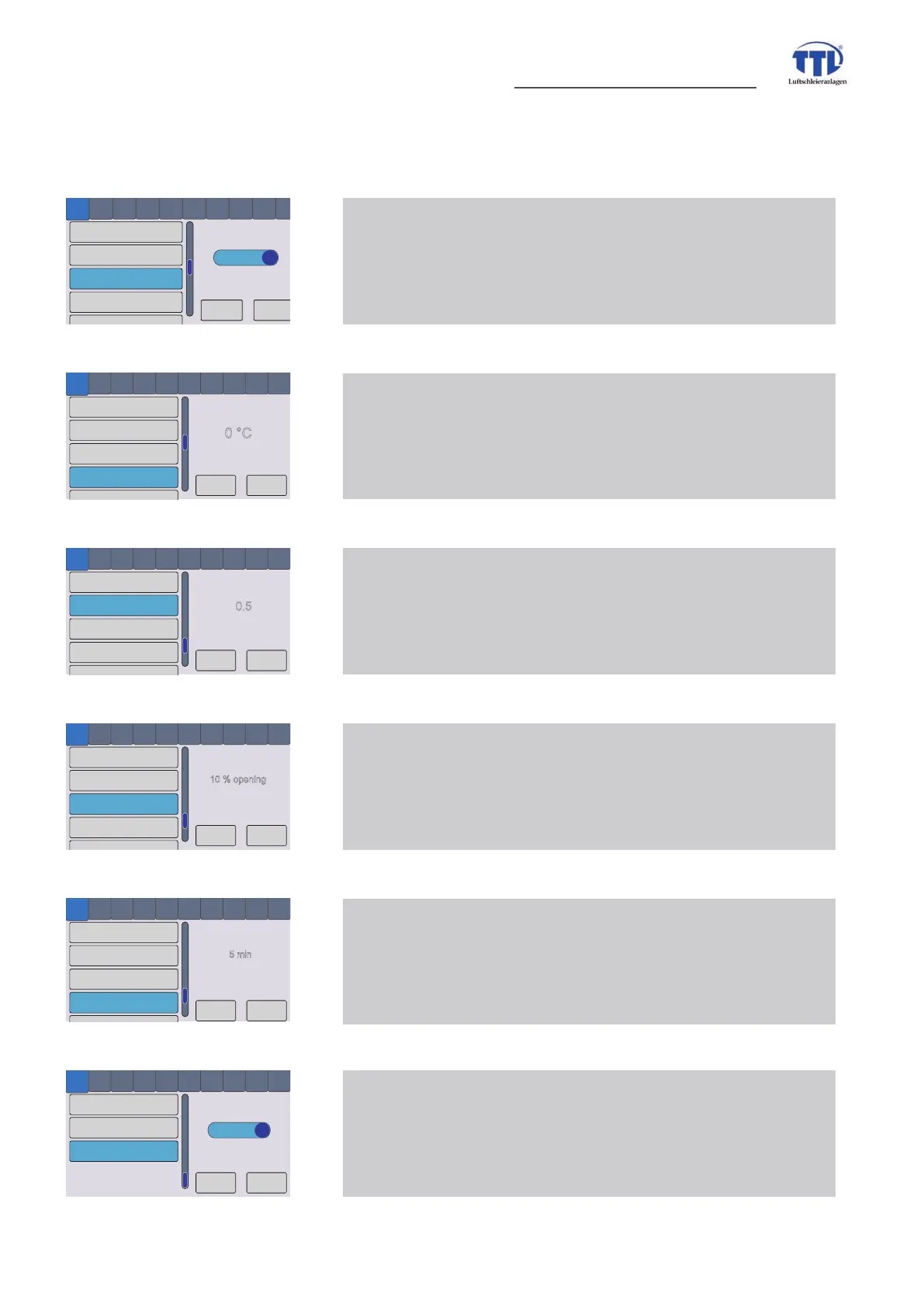

4 Controller air temperature menue 7 - reduction blow-out temp.
activiation of blow-out temperature reduction (see also
menu item - 6.3 Energiy-saving functiosn), The activation requires also
input of values in the following menues
4 Controller air temperature menue 8 - reduction start temp.
at activated blow-out reduction:
setting of start temperature for beginning of
blow-out temperature reduction
- to adjust touch value and set with +/-
OK
Cancel
reduction scaling
override motor valve
override time
reduction start temperature
1
2 3
4
5 6 7 8 9 10
1
2
0.5
0.1 °C steps
/contr. AIR temperature/reduction scaling
controller AIR enable
5 Controller air temperature menue 9 - reduction scaling
at activated blow-out reduction:
setting of a scaling factor for assignment of
°C rising outdoor temperature to
°C decreasing blow-out temperature
OK
Cancel
reduction scaling
override motor valve
override time
reduction start temperature
1 2 3 4 5 6 7 8 9 10
1
2
10 % opening
set override motoric valve
for maintenance
/contr. AIR temperature/override motor valve
controller AIR enable
5 Controller air temperature menue 10 - override motor valve
service value to proof or simulation of operating states,
the value achieved of controlling process
can shieled out/overmodulated for a short time
- at this: setting of value for valve opening (%)
OK
Cancel
reduction scaling
override motor valve
override time
reduction start temperature
1 2 3 4 5 6 7 8 9 10
1
2
5 min
set override motoric valve
for maintenance
/contr. AIR temperature/override motor valve
5 Controller air temperature menue 11 - override time
service value to proof or simulation of operating states,
the value achieved of controlling process
can shieled out/overmodulated for a short time
- at this: setting of time to overmodulate (min)
OK
Cancel
override time
controller AIR enable
override motor valve
1 2 3 4 5 6 7 8 9 10
1
2
OFF
controller AIR
/contr. air temperature/controller AIR enable
5 Controller air temperature menue 12 - controller AIR enable
release of blow-out temperature controller (AIR controller)
for controller operation
OK
Cancel
reduction scaling
controller AIR summer release
reduction blow-out temperature
reduction start temperature
controller AIR D-rate
1 2 3 4 5 6 7 8 9 10
1
2
0 °C
- +
/contr. AIR temperature/reduction start temperat
