9. Displays and general operating settings (cont.)
9.2.5 Menue 5 - controller air volume (VOL controller)
OK
Cancel
t ll VOL P t
temperature summer mode
controller VOL enable
controller VOL summer/winter
temperature winter mode
1 2 3 4 5 6 7 8 9 10
1
2
19 °C
1 °C steps
/contr. air volume/temperature winter mode

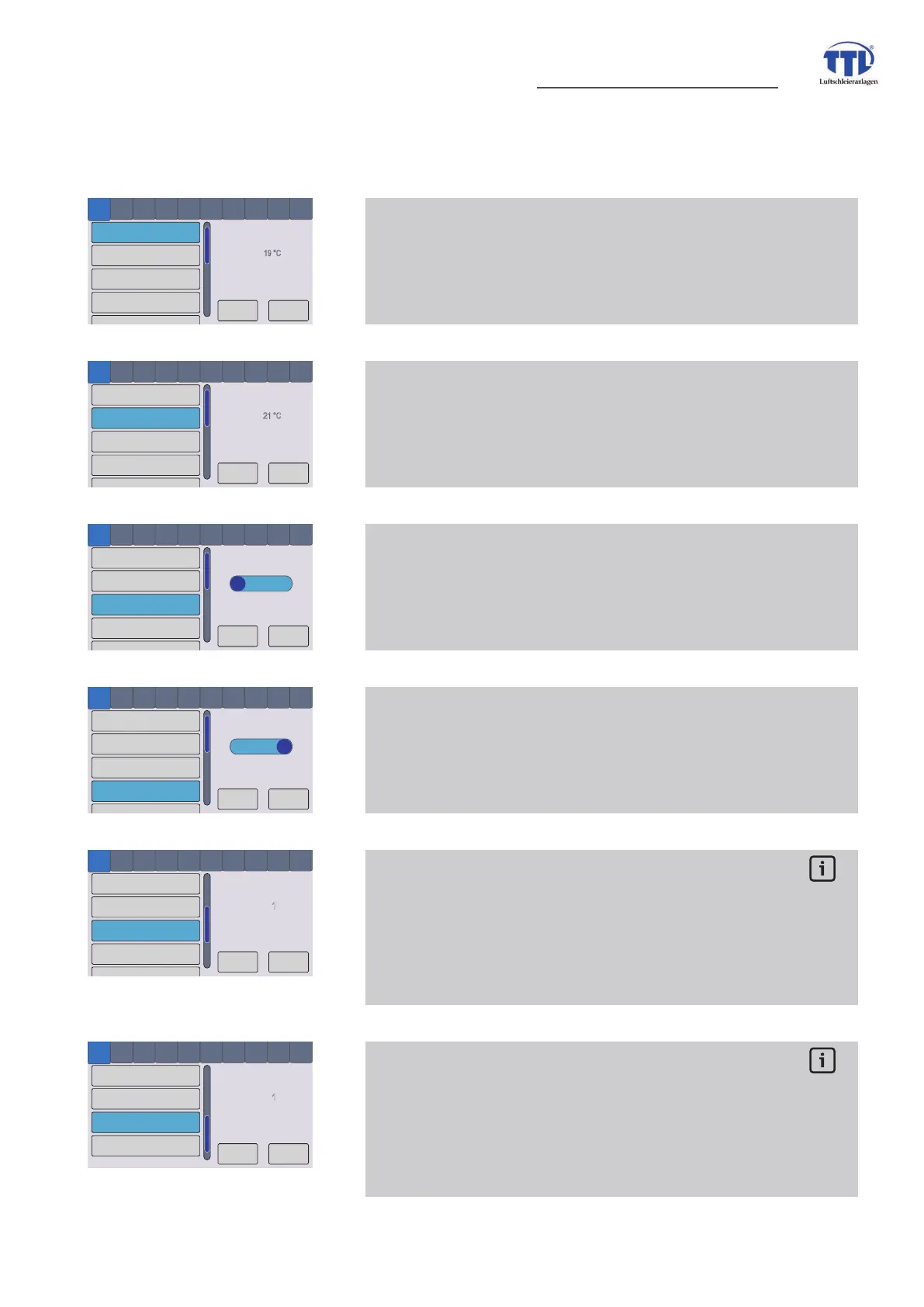

5 Controller air volume menue 1 - temperature winter mode
presetting of a temperature to reach or hold at controller
operation in winter mode by controlling of
air volume performance (VOL controller)
OK
Cancel
controller VOL P rate
temperature summer mode
controller VOL enable
controller VOL summer/winter
temperature winter mode
1 2 3 4 5 6 7 8 9 10
1
2
21 °C
1 °C steps
/contr. air volume/temperature summer mode
5 Controller air volume menue 2 - temperature summer mode
presetting of a temperature to reach or hold at controller
operation in summer mode by controlling of
air volume performance (VOL controller)
OK
Cancel
controller VOL P rate
temperature summer mode
controller VOL enable
controller VOL summer/winter
temperature winter mode
1 2 3 4 5 6 7 8 9 10
1
2
ON
controller VOL
/contr. air volume/controller VOL enable
5 Controller air volume menue 3 - controller VOL enable
release of air volume controller (VOL controller)
for controller operation
OK
Cancel
controller VOL manual mode
controller VOL summer/winter
controller VOL P-rate
controller VOL I-rate
controller VOL enable
1 2 3 4 5 6 7 8 9 10
1
2
1
controller VOL P-rate
0 = Off
255 = max
/contr. air volume/controller VOL P-rate
OK
Cancel
controller VOL P-rate
controller VOL I-rate
controller VOL manual mode
controller VOL summer/winter
1
2 3
4
5 6 7 8 9 10
1
2
1
controller VOL I-rate
0 = Off
255 = max
/contr. air volume/controller VOL I-rate
5 Controller air volume menue 4 - controller VOL summer/winter
switchover of air volume controller (VOL controller)
for summer or winter mode
5 Controller air volume menue 5 - controller VOL P-rate
Controller K
p
SURSFRQWUROOHUDPSOLÀFDWLRQ
controller parameter for adaption of control characteristic
7KHPRGLÀFDWLRQDIIHFWVGLUHFWO\WKHFRQWUROOHUVEHKDYLRXUDQG
should be changed only after consultation with TTL service!
OK
Cancel
controller VOL P rate
temperature summer mode
controller VOL enable
controller VOL summer/winter
temperature winter mode
1 2 3 4 5 6 7 8 9 10
1
2
winter
controller switchover
/contr. air volume/controller VOL summer/winter
5 Controller air volume menue 6 - controller VOL I-rate
Controller K
i
LQWHJUDOFRHIÀFLHQW
controller parameter for adaption of control characteristic
7KHPRGLÀFDWLRQDIIHFWVGLUHFWO\WKHFRQWUROOHUVEHKDYLRXUDQG
should be changed only after consultation with TTL service!
