TTL Air curtain systems - control and automation panel type Touch
2. Fixing
The electronic control and automation panel Touch is made for wall mounting. The case is designed two-pieced
with a basic plate and an upper section with integrated electronic equipment.
The upper part of case is cliped on the base plate. Detach of clip-on position is possible by inserting a small
screw driver into the clip-off mouth and slight sideways leverage.
.

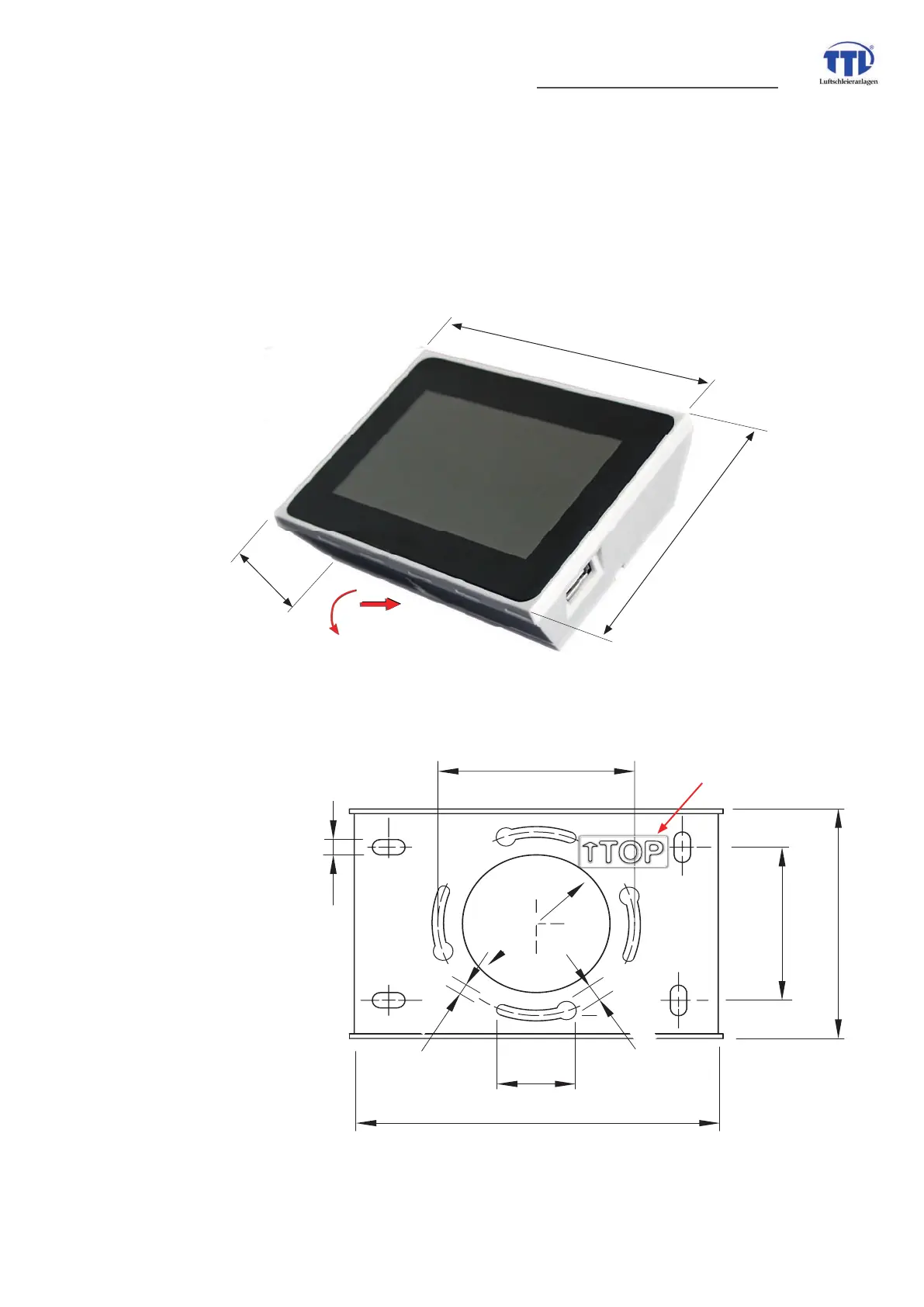

Illustration: Fixing measures base plate
Fixing of base plate at
the wall with
4 screws resp.
dowels (3, 2 x 30 / 6
x 30)
Illustration: Dimensions of cover
35,0
126,0
88,0
base plate clip-off
75,0
51,0
10,0
22,0
60,0
Ø 43
60,0
3,5
6,0
Consider direction!
