10. Connecting device - start up

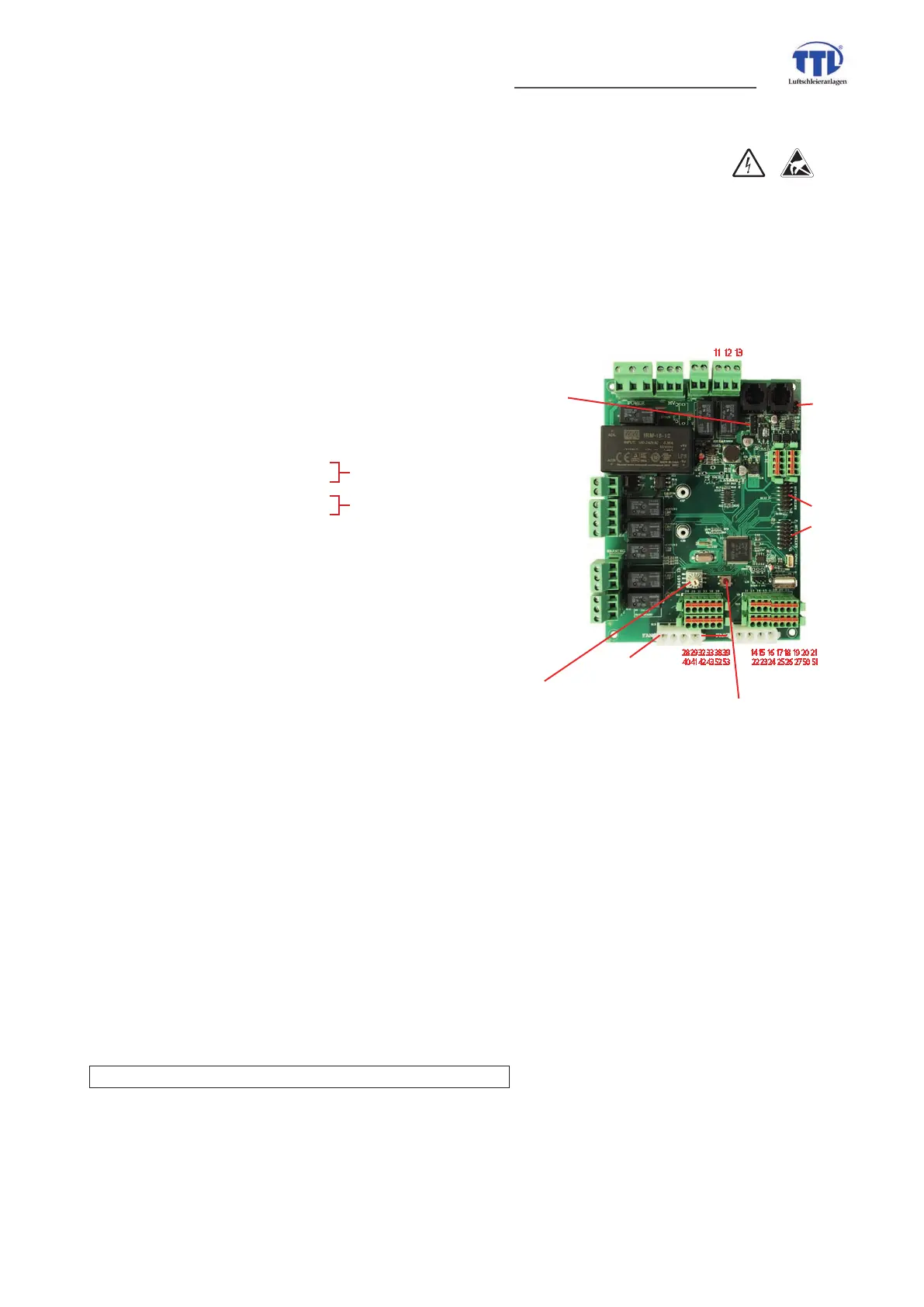

10.1 Internal connecting board (PCB)
DDC enable, door contact etc. will be connected at these internal connecting board.
N Neutral conductor for power supply (230 V~)
L Phase power supply (230 V~)
PE Protective conductor
PE Protective conductor selenoid valve
N Neutral conductor solenoid valve (230 V~)
MV Phase-switched solenoid valve (230 V~)
9 Pot. free operating message (NO)
10 Pot. free operating message (NO)
11 Pot. free fault message (COM)
12 Pot. free fault message (NC)
13 Pot. free fault message (NO)
14 Frost protection thermostat, optional (12 V, internal interconnection)
15 Frost protection thermostat, optional (input, internal interconnection)
16 D DC e n abl e (int. 12 V)
17 DDC enable (input)
18 Automatic contact (int. 12 V)
19 Automatic contact (input)
20 Room thermostat-heating mode within automatic mode (int. 12 V)
21 Room thermostat-heating mode within automatic mode (input)
22 not contacted
23 not contacted
24 Filter surveillance external
25 Filter surveillance external
26 S U M M E R / W I N TE R s wi tc h ov e r (int. 12 V)
27 SUMMER/WINTER switchover (input)
50 Relais output (only for units with electric heating)
51 Relais output (only for units with electric heating)
28 Humidity sensor (if required)
29 Humidity sensor (if required)
32 0-10 Volt analogue input for BMS control signal (basis)
33 0-10 Volt analogue input for BMS control signal (signal)
38 NTC sensor internal (water sensor)
39 NTC sensor internal (water sensor)
40/41 Room sensor
42/43 Analogue sensor (for volume controller, instead of IR sensor)
52/53 Outdoor sensor (für temperature setback mode)
54 Relais output (only for units with electric heating)
55 Relais output (only for units with electric heating)
56 Relais output (only for units with electric heating)
60 0HVVDJHRXWSXWFRQÀJXUDWLRQGHSRQPRGLÀFDWLRQV
61 0HVVDJHRXWSXWFRQÀJXUDWLRQGHSRQPRGLÀFDWLRQV
62 0HVVDJHRXWSXWFRQÀJXUDWLRQGHSRQPRGLÀFDWLRQV
Bu1 &$1ÀHOGEXVFRQQHFWLRQ:(67(510RGXODUFRQQHFWRUSROH
Bu2 &$1ÀHOGEXVFRQQHFWLRQ:(67(510RGXODUFRQQHFWRUSROH
(Connecting sequence Bu1 and Bu2 are interchangeable)
Other clambs internal interconnected or without function!
If both BUS sockets are occupied, jumper „BR-CAN“ must be replaced!
delivery status: bridged
delivery status: bridged
X 22
B, D+1
A, D-
12 V
GRND
Internal
motor connections
internal conn. board ECP-T
N L PE
PE N MV
Bu1
9 10
Bu2
11 12 13
X 9: 14 15 16 17 18 19 20 21
X10:
22 23 24 25 26 27 50 51
35
34
37
36
31
30
N
TV
61
60
62
55
54
56
X11: 28 29 32 33 38 39
X12:
40 41 42 43 52 53
L
K1
K2
K3
sockets for
extensions
Term.
A-
B+
A-B
X15
X16
X17
X18
X1 X21 X20X19
Bu3
(USB)
X4/5
adress swich
step 1 ... A = adresses 1 ... 10
RESET button
