11. Grouping - addressing
Air curtain units can be matched and analyzed (failure dealing) to functionally groups setted by pro-
gramming. A grouping in seral levels is not possible, but by this programming is it possible to set different
RSHUDWLQJVSHFLÀFDWLRQVto these groups.
The adresses are free selectable up 1 to 9 and will be determined at the internal connecting board.
7KHUHE\SK\VLFDOFRQÀJXUDWLRQDQGFURQRORJLFDORUGHUGRHVQRWPDWWHU
All recognised air curtain units will be marked by light grey color at its adress folder representing its
internal connecting board in the adress status bar. A touch at on of these adresses changes the color
into blue and the datas and parameters of these adress can be read out
&DXWLRQ7KHOLVWLQJRUGHUFDQQRWDOORZFRQFOXVLRQVWRWKHSK\VLFDOFRQÀJXUDWLRQRIWKHDLUFXUWDLQ
units. The sequence resp. the ranking in statistic menus adress row accrues by the sequence of regist-
ration of the air curtain units in the data bus. These can change!

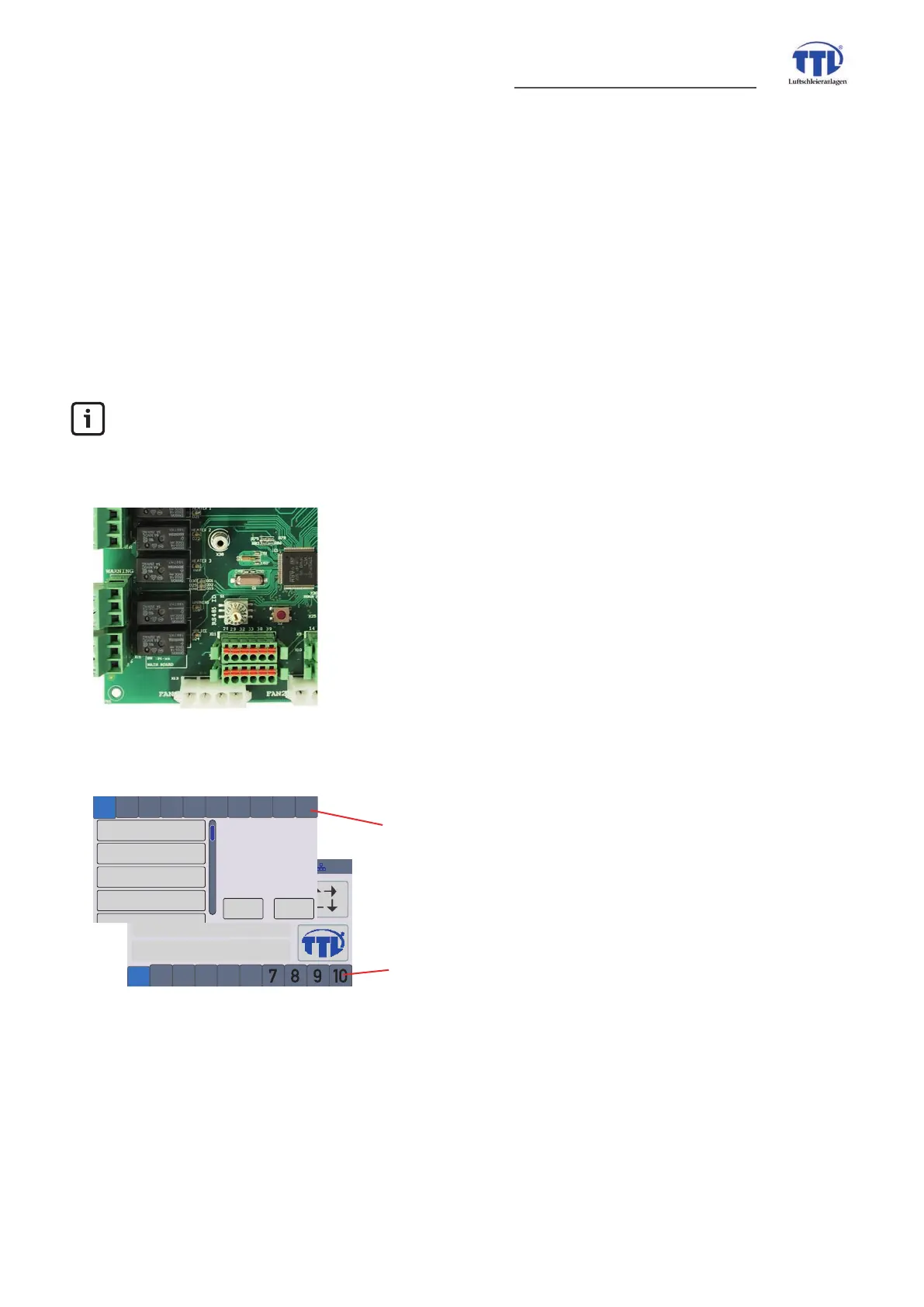

Input of adress 7 at an internal connecting board type ECP-T.
The input can be made by a micro turning switch in
position1(adress 1) - A (adress 10)
Image: adress 7 adjusted
Adress status bar
indicated in menue view above,
indicated in operation view below
$IXQFWLRQDODVVLJQPHQWWRGHÀQHWKHEHKDYLRXURIGHYLFHVLQXQLWQHWZRUNLQWKHFDVHVRIPRWRU
faults or frost alert resp. the impacts of external contacts (door contact, room thermostat, sensors)
is possible by a programmed assignment for one or more adresses (compare hereto menue item 3
settings).
no malfunctions
1
2 3
4
5 6 7 8 9 10
1
2
TTL Touch
air volume 43%
05:04
OK
Cancel
controller air volume (VOL)
statistics
settings
controller air temperature (AIR)
info
1 2 3 4 5 6 7 8 9 10
1
2
Main
