APPENDIX - REPLACING OVEN COMPONENTS

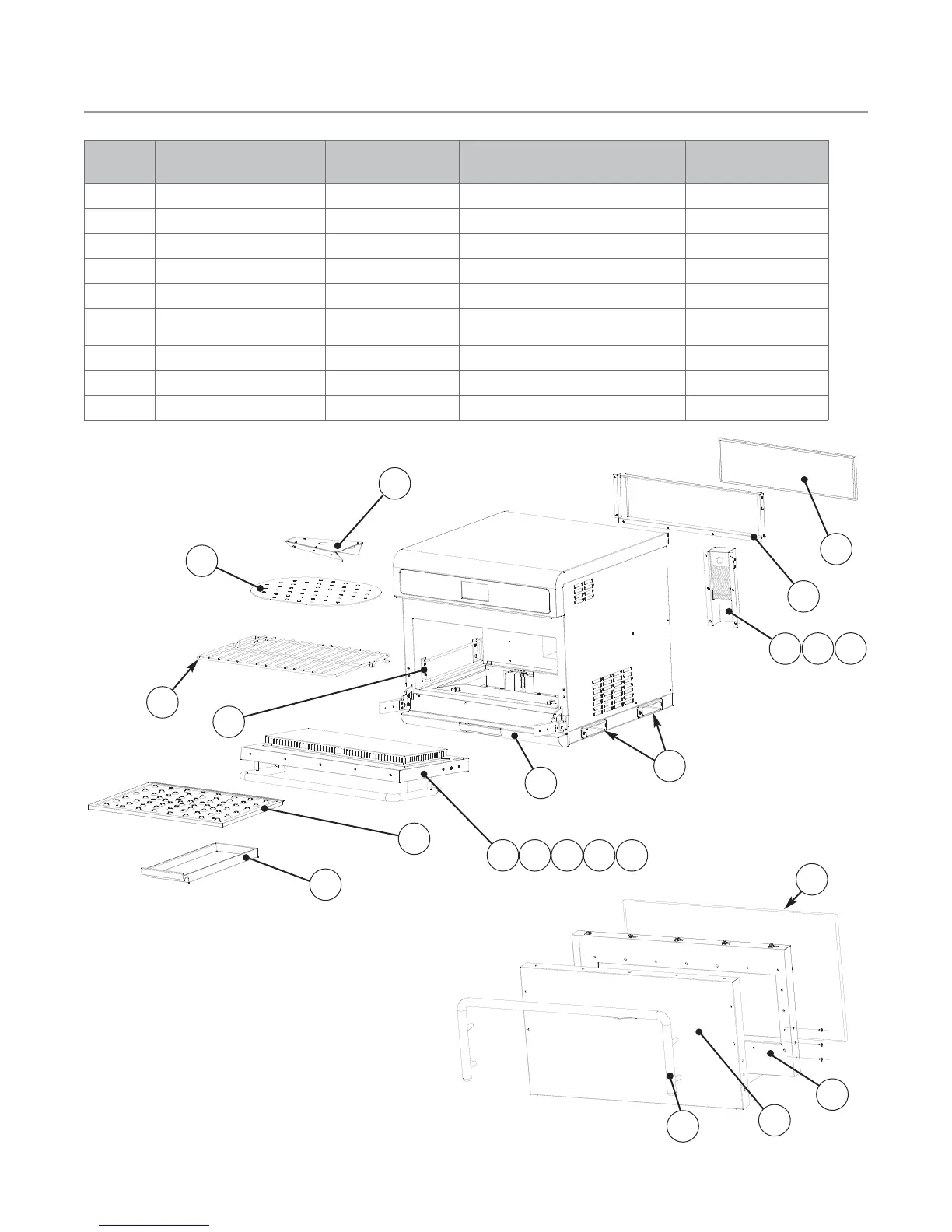

Figure A-1: No Cover Removal Required
5
9
11
8
16
7
6
12
13
10
15
1
2 3 4
Figure
Reference #
Item Description Item Part Number Hardware Description Hardware Part Number(s)
10 Jetplate (Top) I5-9203 None None
11 Lower Front Panel i5-9246 None None
12 Rack I5-9168 None None
13 Rack Support I5-9165 Screw, Sh Mtl #8 x 1/2, Serrated PHTRH 101688 (qty 4)
14 Shunt Plate Assembly I5-9307 Screw, 6-32 x .38, PFH, 100 Deg, SS 101430 (qty 9)
15 Stirrer I5-9154
A) Screw, #10-32 x 1/2, PPH, SS
B) Washer, Lock, #10 Ext Tooth, Cres
A) 101460 (qty 1)
B) 102260 (qty 1)
16 Vent Catalyst Foil Pack RWD-9191 None None
17 Vent Tube Cover I5-9209 Screw, #6 x 1/2, PPHD, Drill Point, SS 101687 (qty 2)
18 Weldment, Heat Chnl, Vent Tube NGC-1397 Screw, Sh Mtl #8 x 1/2, Serrated PHTRH 101688 (qty 6)
A-4
14
1817
Figure A-2: Door Assembly Detail
3
4
14
2
To Next Page
