Replacing Items - Opening Top Cover Required (Figure A-3)
DANGER: Before replacing any oven component, ensure the oven is removed from any power
source. Replacing a component while the oven is plugged in can result in serious injury or death.
CAUTION: Before removing/installing any component, make sure it is disconnected from the
wire harness (where applicable).
NOTE: Hardware listed is required for installing component to oven.
To open the top cover:
1. Open the oven door.
2. The top cover is secured to the heat shield via 2 sheet metal screws (above the oven door). Remove
these screws.
3. Open the top cover.
4. Secure the support arms in place.

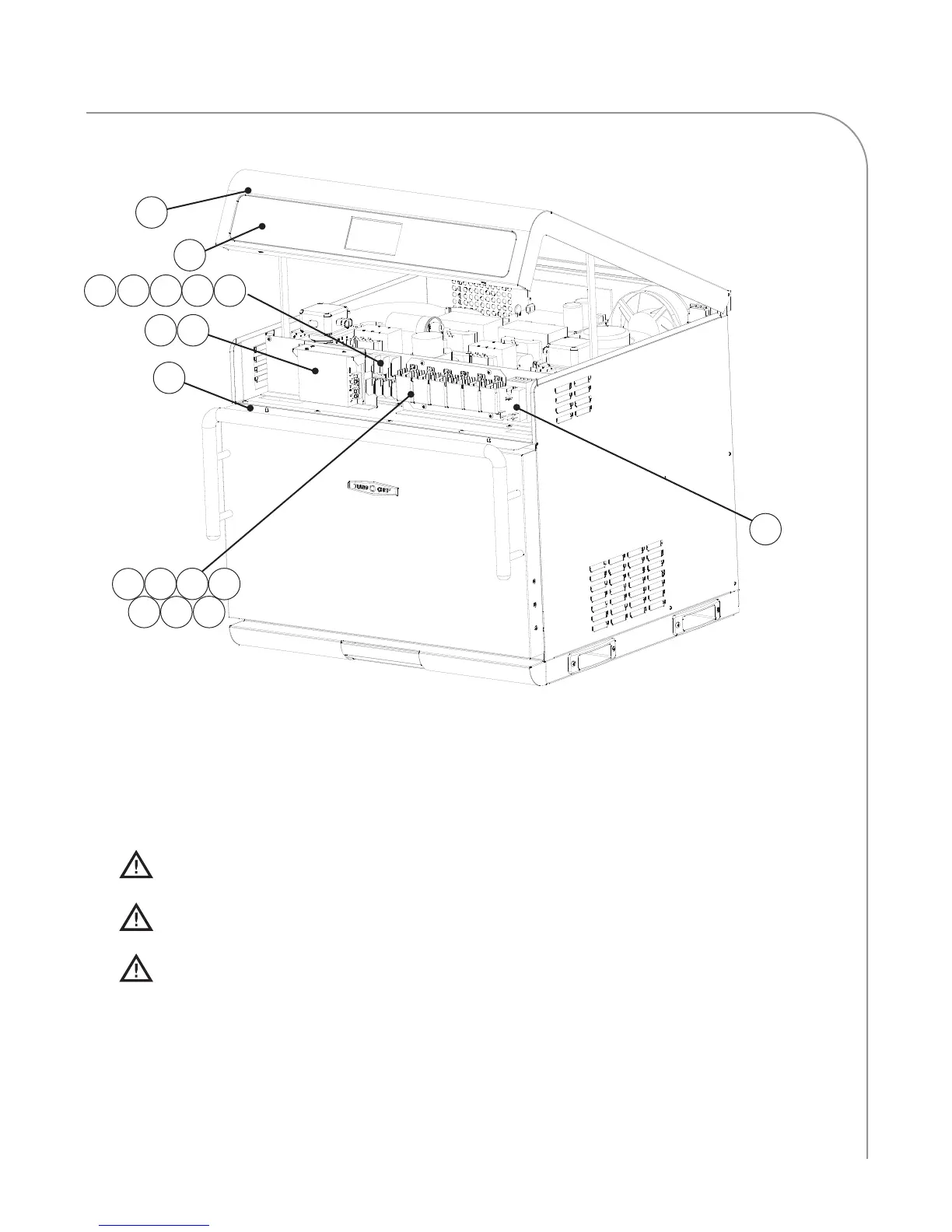

Figure A-3: Opening Top Cover Required
