TurboChef NGC (Tornado) User Manual

56
SERVICE PARTS AND ILLUSTRATIONS
47
46
44
45
49
48
50
51
52
1
Cook Door Parts
44. 102809 #8-32 x 3/8” PFH CSK
45. NGC-1060 Assy, Oven Door
46. NGC-1061 Hinge Block
47. 102804 Right Hinge (only)
48. 102805 Left Hinge
49. 101381 #10-32 x 1/2” Hex SS
50.
102140 #10 Flat
51. 102350 #10 Split Loc
52. 101191 Cap, Hole

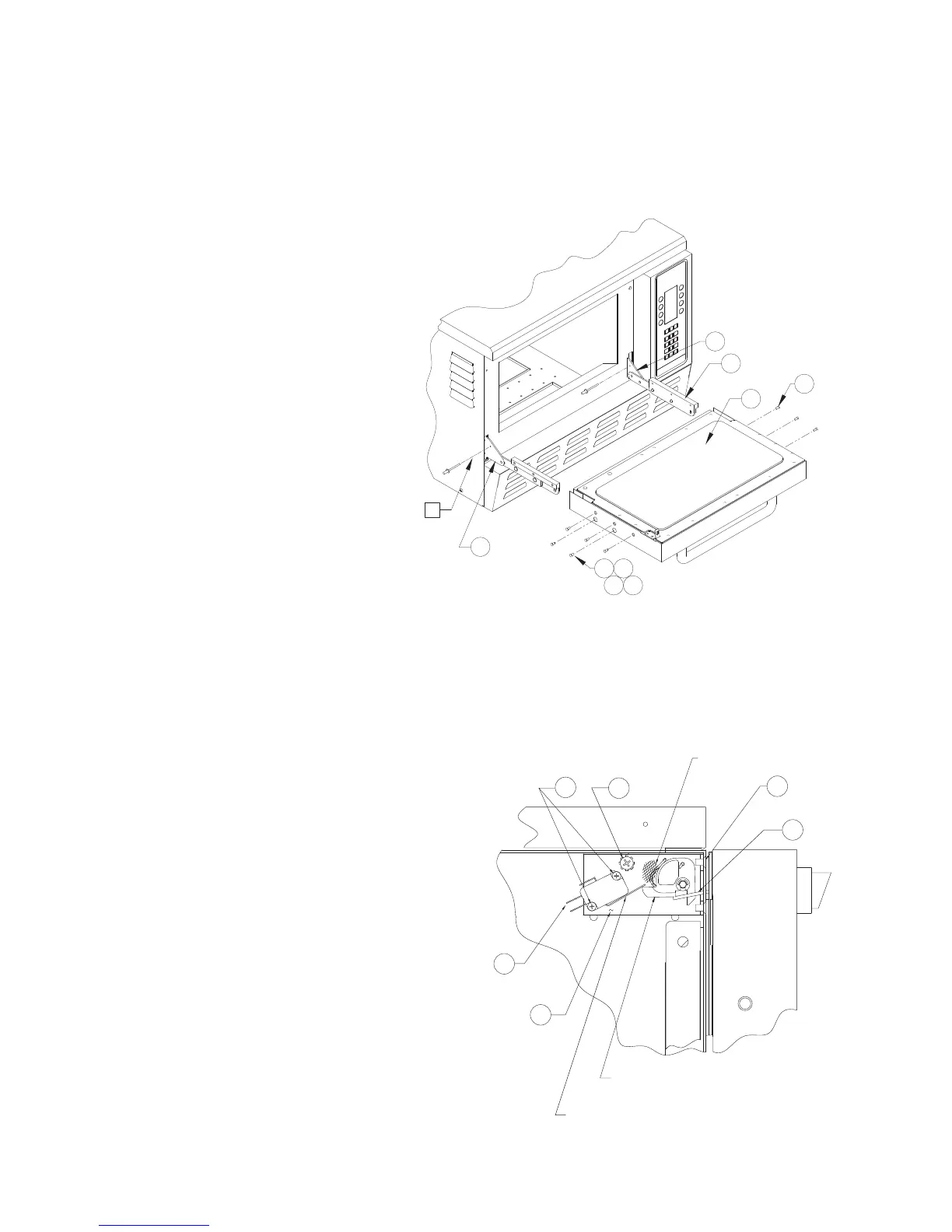

FIGURE 23: COOK DOOR REMO
VAL AND PARTS
Chapter 6: The Cook Door - Page 33
FIGURE 26: PRIMARY AND SECONDARY INTERLOCKS ADJUSTMENT AND PARTS
Chapter 6: The Cook Door - Page 35
56
APPLY HI-TEMP GREASE
TO AREA
55
54
53
LATCH TOGGLE TO BE LEVEL
OR NEARLY LEVEL
SWITCH GAP = 0.02
57
58
Primary and Secondary Interlock Switch Parts
53.
NGC-1076 Actuator, Door
54. 102684 Screw, #8-32 x 1/2” 100˚ CSK
55. 102921 Screw, #8-32 x 3/8”
56. 101557 Screw, #4-40 x 1 1/4”
57. 102012 Interlock Switches
58. NGC-1075 Assy, Door Switch
