SERVICE PARTS AND ILLUSTRATIONS
6168
66
60
2X
65
2X
2
69
59
64
2X
63
67
62
1
Door Switch Parts
59. NGC-1072 Bracket Latch
60. 102012 Switch, Micro, 0.1A/125VAC
61. NGC-1087 Spring Door Latch
62.
NGC-1073
T
oggle, Latch
63. 101119 Pin, Clevis, ø3/16 x 1” Lg
64. 100059
B
earings, Bronze,
3/16ID x 5/16OD x 1/4” Lg
65.
101557
Screw, #4-40 x 1.25” Lg,
PPHD, CRES
66. 102921 Screw, #8-32 x 3/8”, Internal
Tooth Sems, PPHD, SS
67. NGC-1126 Plate, Door Switch
68. 100639 Grease, USDA H-1, Food Grade
79.
101296
Ring, E
clip

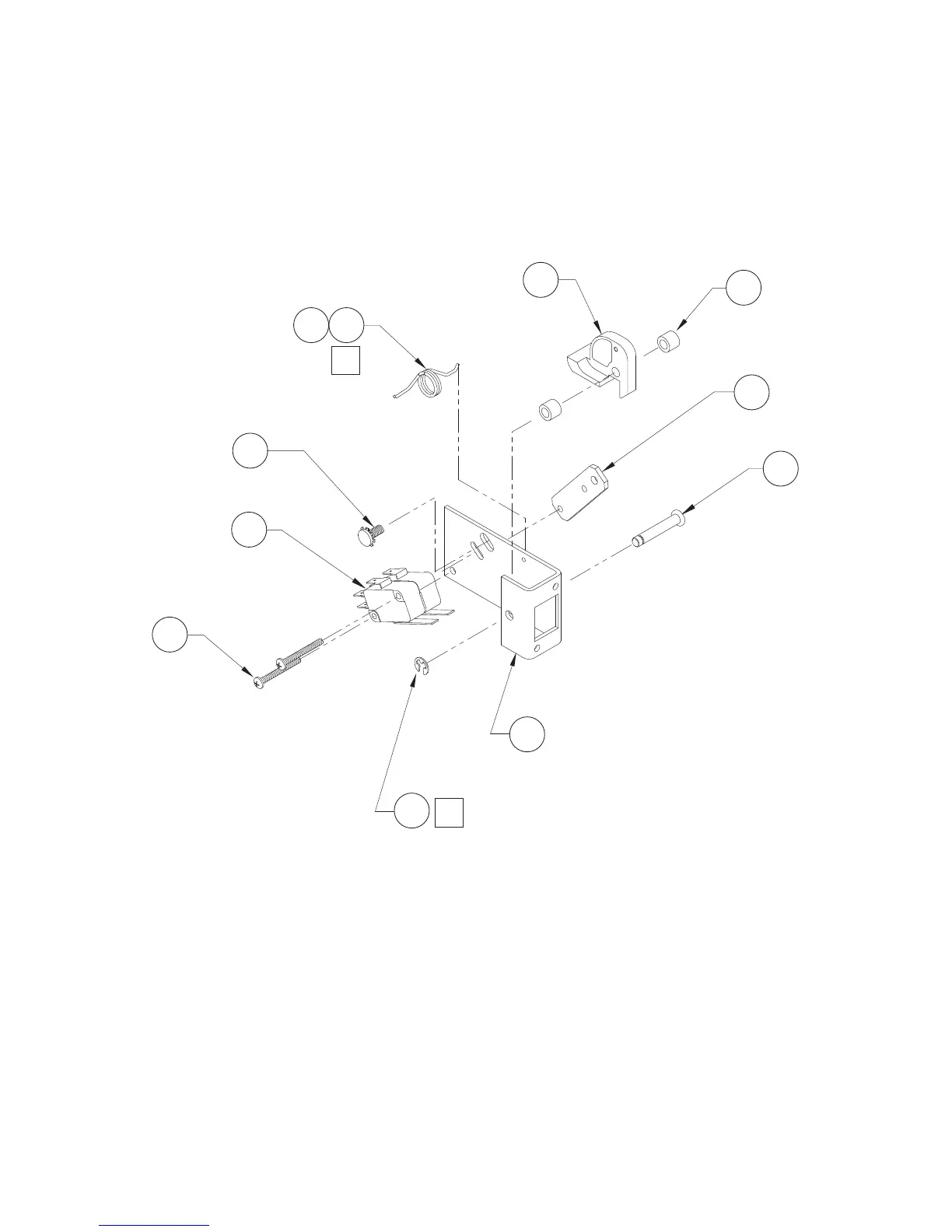

FIGURE 27: DOOR S
WITCH ASSEMBLY AND PARTS
Chapter 6: The Cook Door - Page 36
