TurboChef NGC (Tornado)

63
SERVICE PARTS AND ILLUSTRATIONS
IR Element and Cat
alytic Conv
er
ter P
ar
ts
130. 101312 Snap Ring
131. 102477 Washer, Shim
132. 100649 IR Element
133. NGC-1116
Shield, Microwave
134. 101688 Screw, #8 x 1/2” Sht Metal PTH
135.
NGC-1030
Clip, Catalytic Converter
136.
NGC-1012
Catalytic Conv
erter

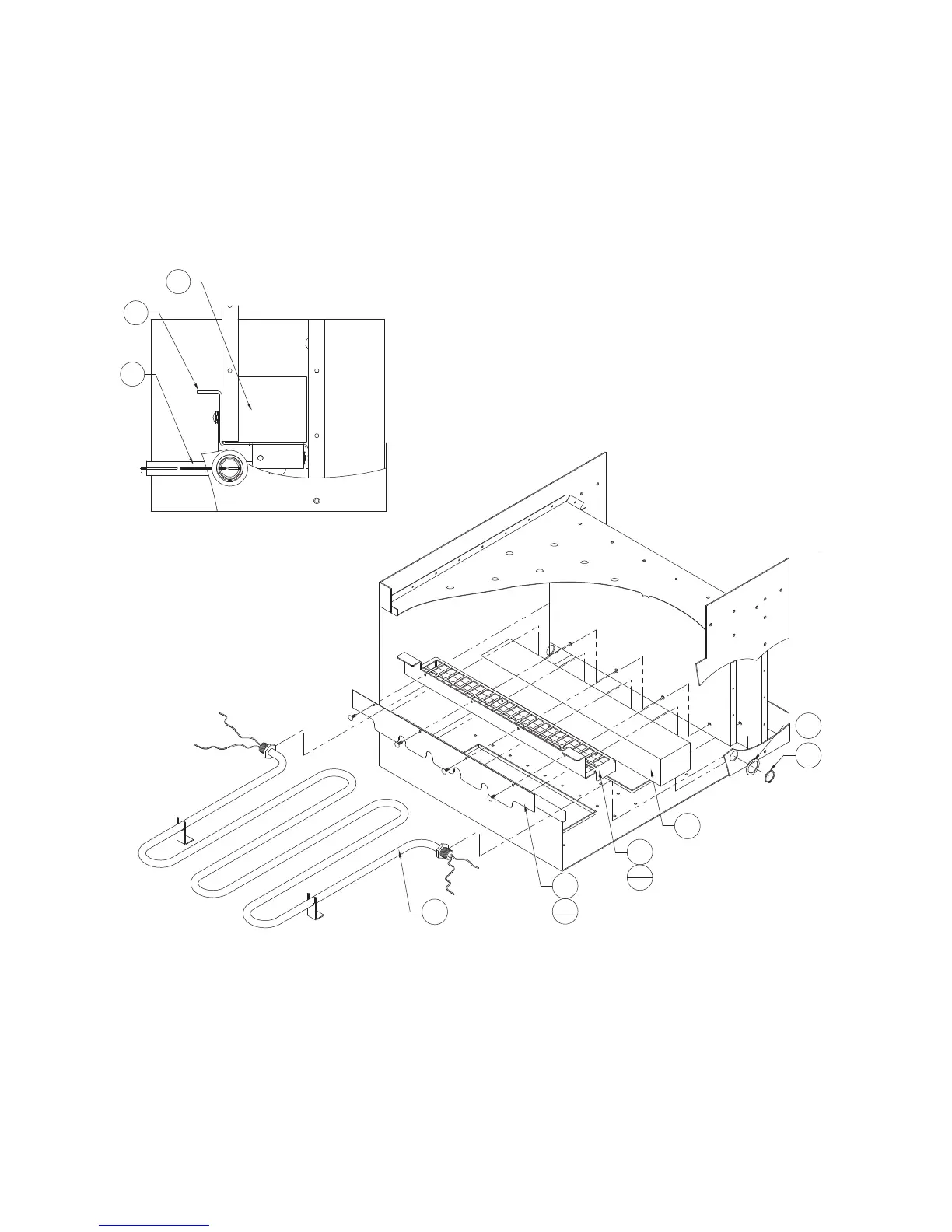

FIGURE 34: IR ELEMENT AND C
ATALYTIC CONVERTER PARTS AND ASSEMBLY
Chapter 8: IR Element and Catalytic Converter - Page 48
