12 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com
FEN20 IP Address Setup
4.5 FEN20-16DXP

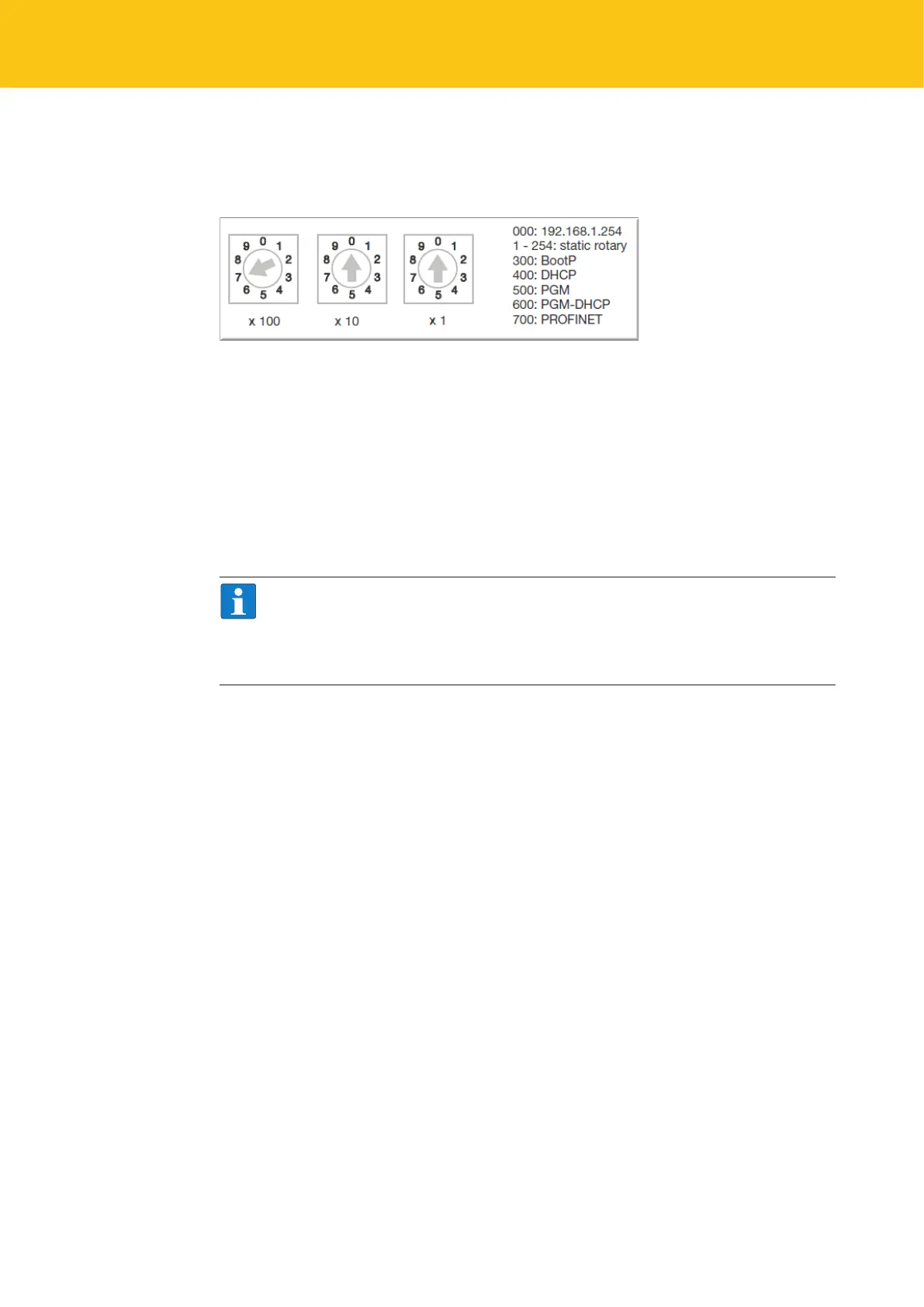

Three rotary switches of the FEN20-16DXP provide various modes of operation, as seen
below.
4.5.1 Modes of Operation
Based on the position of the switches, the device performs the following operation:
000 Restore IP address
300 BOOTP mode client
400 DHCP mode client
500 PGM programmable mode
600 PGM-DHCP mode
700 PROFINET mode
900 Device Recovery Mode (F_reset)
1-254 Static IP address
NOTE
The general rule of handling rotary switches when selecting mode of operation is:
Set the rotary switches to the desired position
Cycle power to the station
Proceed with intended operation as explained hereafter
Restore Mode (000)
The Restore IP address mode restores the IP address to the default value. When switches are
set at 000, the device is capable to:
Respond to PING command,
Respond to Turck Service tool
Run device Webserver
The device cannot be connected to a PLC and it does not respond to any connection request.
Default IP Address
The factory default setup when switches are set to “000” position:
IP address 192.168.1.254
Subnet 255.255.255.0
Gateway 0.0.0.0
