EtherNet/IP™ Configuration (Rockwell)
5.2 Conguration with Catalog File
The FEN20 device configurations are located in the Turck_BLOCK_STATIONS catalog file.
5.2.1 FEN20 conguration procedure

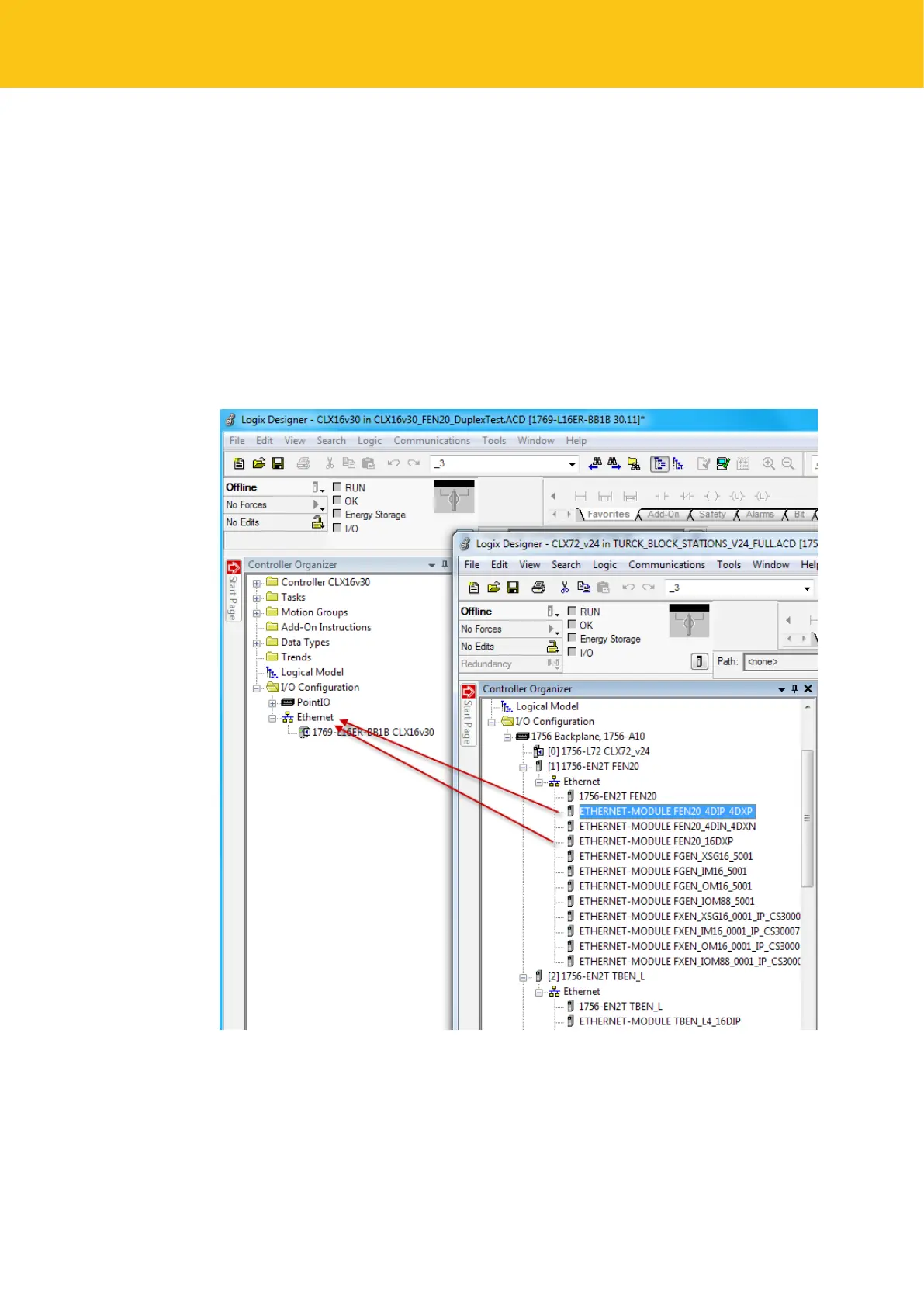

 Open both your online project and the “Turck_BLOCK_STATIONS_V24_FULL.ACD” catalog file
in separate windows.
 Expand the “1756-EN2T FEN20” bridge in the catalog file.
 Drag the FEN20-4DIP-4DXP configuration and drop it into the “Ethernet” of the Controller
organizer
 Drag the FEN20-16DXP configuration and drop it into the Ethernet
 Close the catalog file
