Replacement Parts
Manual 1807 Rev B p/n 001807 0000
EXPLODED VIEWS AND PARTS LISTS

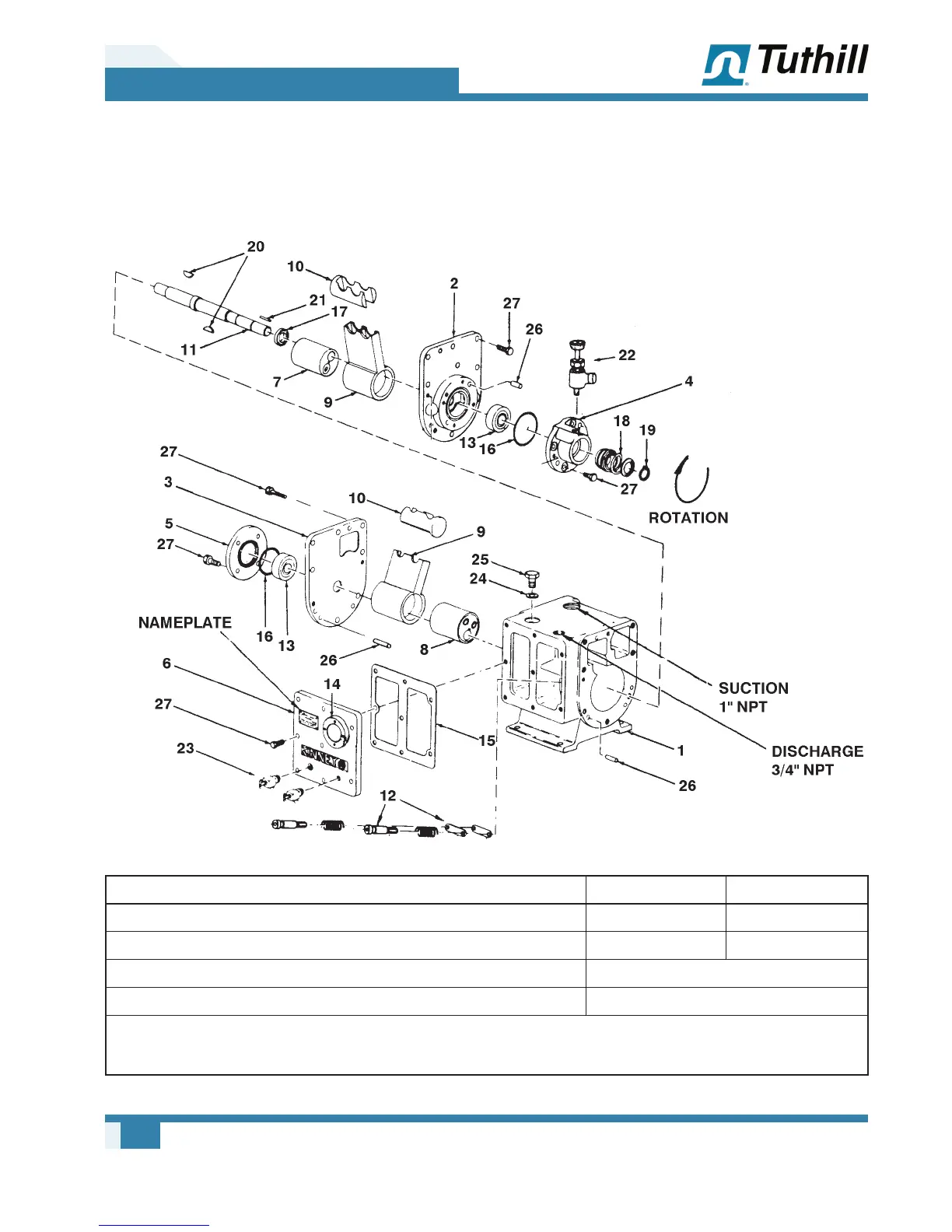

KC-5 and KC-8 Exploded View Drawing
KC-5 KC-8
Pump RPM 638 1022
Motor HP (kW) 0.33 (0.25) 0.50 (0.37)
Oil Capacity, qts. (liters) 0.8 (0.76)
Forced Drain w/ open suction, qts. (liters) 0.85 (0.80)
Use Loctite 515 vacuum pump sealant for assembly.
For best performance, use only AX vacuum pump oil.
