Replacement Parts
Manual 1807 Rev B p/n 001807 0000

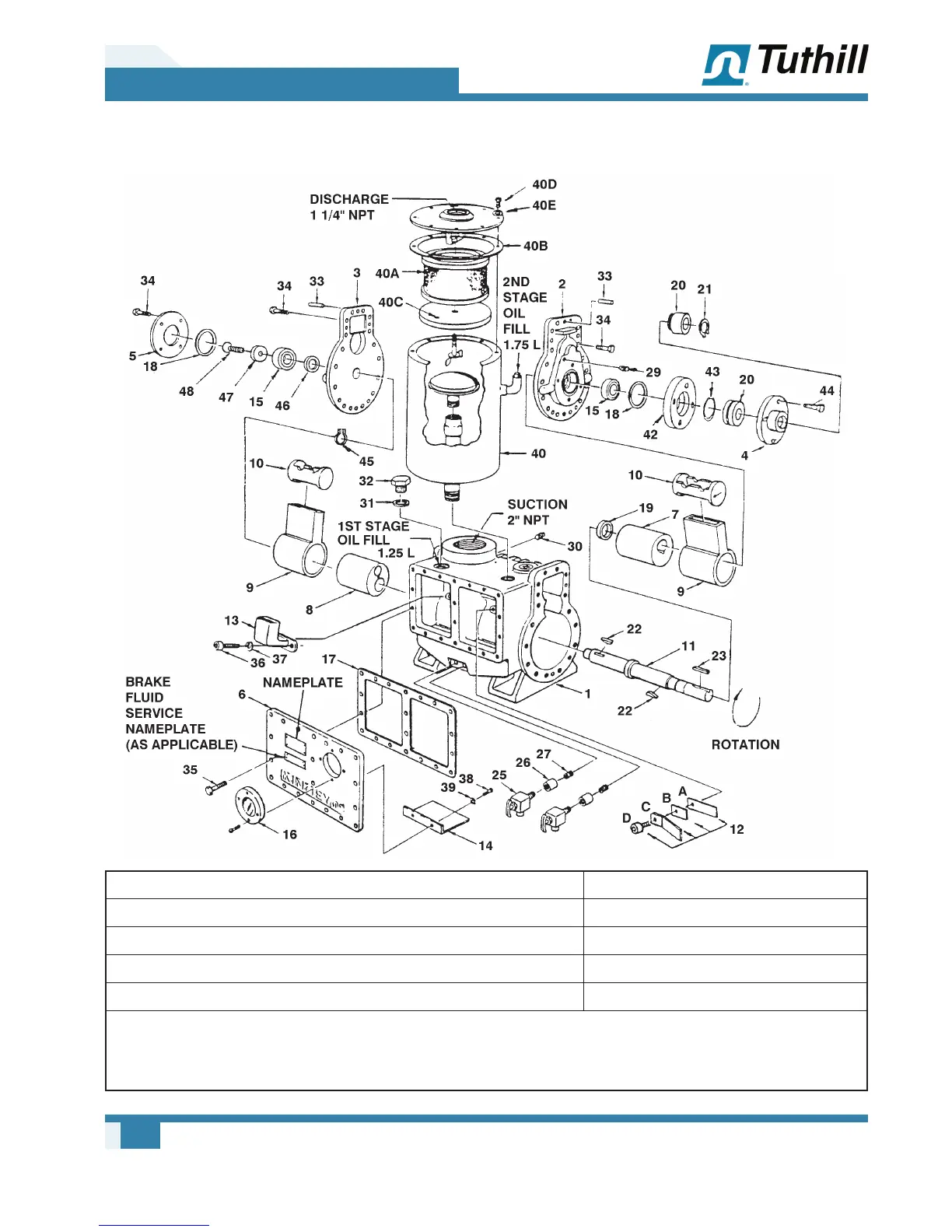

KC-15D Exploded View Drawing
Free Air Displacement , CFM (L/sec) 15 (7.08)
Pump Rotative Speed, RPM 572
Ultimate Pressure, Torr (mbar a) .005 (.007)
Motor HP (kW) 1 (0.75)
Oil Capacity, qts. (liters) 3.0 (2.84)
After normal oil drain, start pump to force out residual oil. Then, rell both stages with quantities shown above.
Use Loctite 515 vacuum pump sealant for assembly.
For best performance, use only AX vacuum pump oil.
