Assembly Drawings

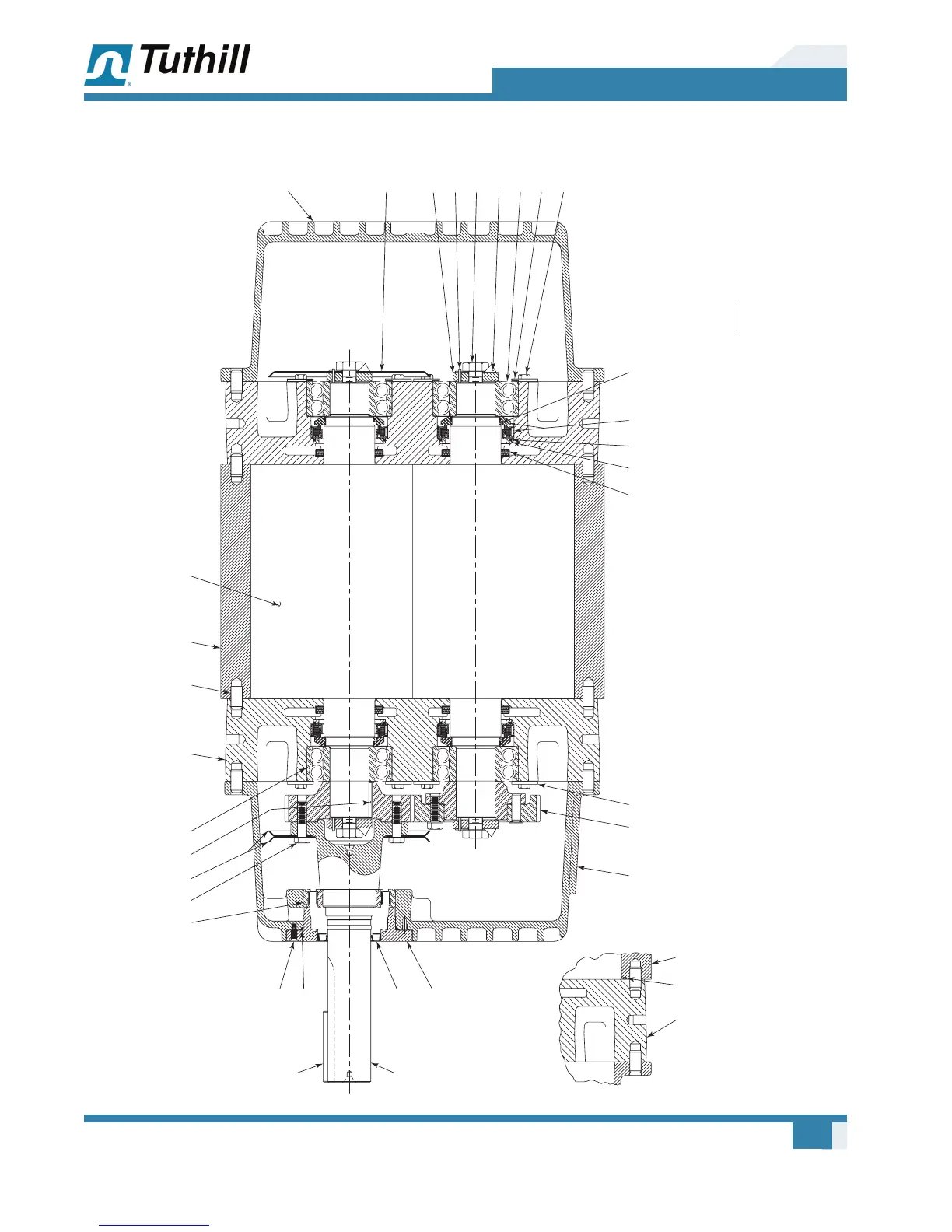

Model 7000 – Single Envelope Gastight – Cutaway View
6
17643
148
PACK WITH
GREASE
91
45
13
23
92 93
50 2439566 94 322 1
51 75 5474 300
30 10 15 59 29 68
25
20
7
NOTE: USE SEALANT BETWEEN
END COVERS, END PLATES & HOUSING
7013 SHOWN
OPTIONAL
O-RING
ARRANGEMENT
FOR UNITS WITH
O-RING SEALING
TYP
FOR BOTH ENDS
