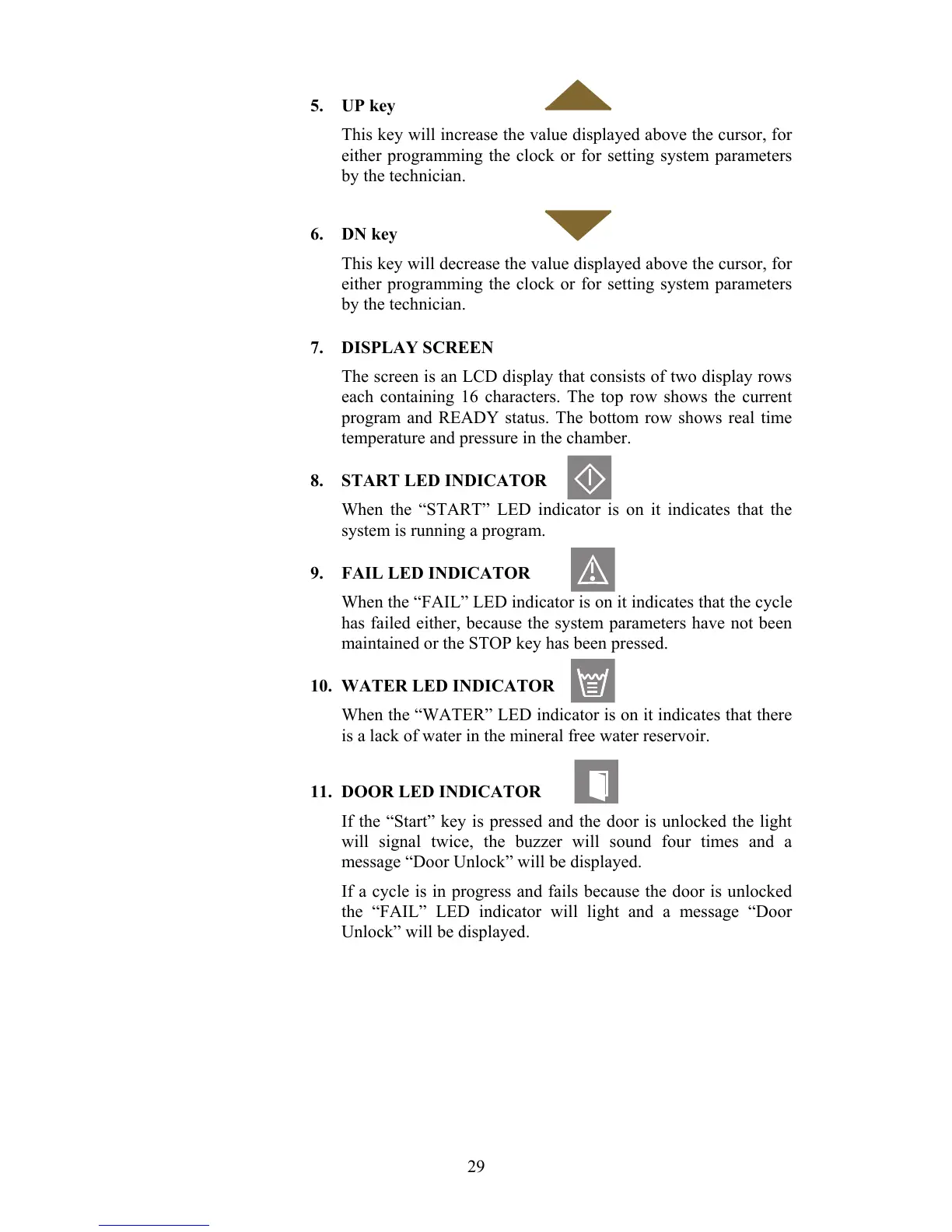

5. UP key
This key will increase the value displayed above the cursor, for
either programming the clock or for setting system parameters
by the technician.
6. DN key
This key will decrease the value displayed above the cursor, for
either programming the clock or for setting system parameters
by the technician.
7. DISPLAY SCREEN
The screen is an LCD display that consists of two display rows
each containing 16 characters. The top row shows the current
program and READY status. The bottom row shows real time
temperature and pressure in the chamber.
8. START LED INDICATOR
When the “START” LED indicator is on it indicates that the
system is running a program.
9. FAIL LED INDICATOR
When the “FAIL” LED indicator is on it indicates that the cycle
has failed either, because the system parameters have not been
maintained or the STOP key has been pressed.
10. WATER LED INDICATOR
When the “WATER” LED indicator is on it indicates that there
is a lack of water in the mineral free water reservoir.
11. DOOR LED INDICATOR
If the “Start” key is pressed and the door is unlocked the light
will signal twice, the buzzer will sound four times and a
message “Door Unlock” will be displayed.
If a cycle is in progress and fails because the door is unlocked
the “FAIL” LED indicator will light and a message “Door
Unlock” will be displayed.
