TV Ears TV - Composite (AV); S-Video Connection

16
Installaon
TV Installaon
Device
(DVD/VCR, Cable/Satellite Box, etc...)
RF IN
S-VIDEO
HDMI1
PC AUD IO
VGA(PC)
Y2
Y1
Pr2
Pr1
VIDEO
Pb2
Pb1
L
HDMI2
Y-L2 Y-R2
Y-L1 Y-R1
R
AC
L
R
AUDIO OUT
AUDI O
S-VIDEO Cable
Audio Cable
1

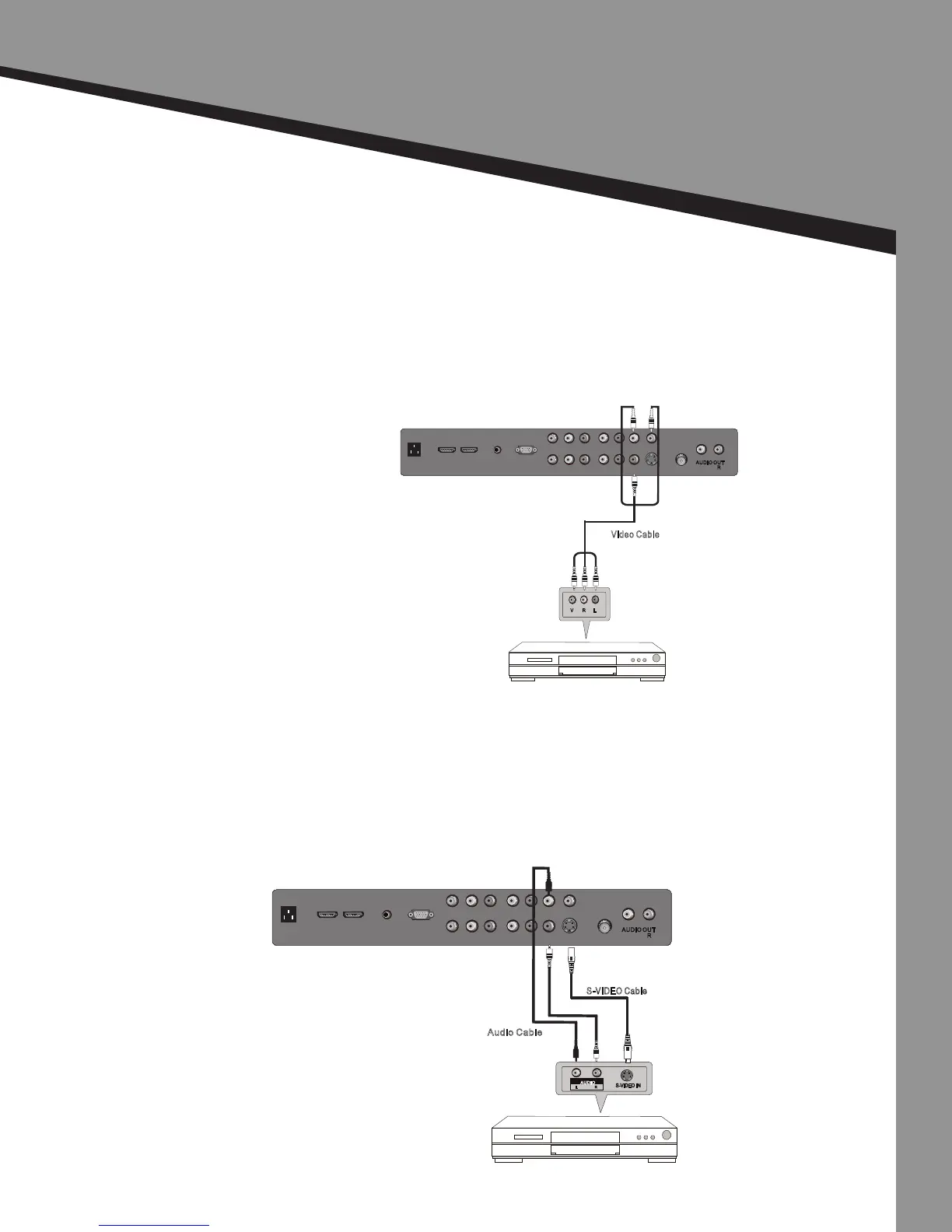

| Composite (AV)
1. Connect the video cable (yellow plug) to the video port of the device.
2. Connect the audio cables (white & red) to the le and right audio jacks of the
device.
3. Connect the video cable of the port labeled Video on the back of the TV.
4. Connect the audio cables to the ports labeled L & R on the back of the TV.
5. In the source list, select Composite.
| S-Video Connecon
1. Connect the S-Video plug to the S-Video port of the device.
2. Connect the audio cables (white & red) to the le and right audio jacks of the
device.
3. Connect the opposite end of the S-video plug to the port labeled S-Video on the
back of the TV.
4. Connect the audio cables to the ports labeled L & R on the back of the TV.
5. In the source list, select S-Video.
Device
(DVD/VCR, Cable/Satellite Box, etc...)
RF IN
S-VID EO
HDMI1
PC AUDIO
VGA(PC)
Y2
Y1
Pr2
Pr1
VIDEO
Pb2
Pb1
L
HDMI2
Y-L2 Y-R2
Y-L1 Y-R1
R
AC
L
R
AUDIO OUT
Video Cable
V
R
L
TV Back
TV Back
