10. Expansion Modules
The Ethos Two system is modular so it can be easily expanded to suit any lift system. Listed below are all the
available module options.
10.1. Call Modules
2 types of call module are available 8 way or 16 way, both modules are designed for a 3 wire call system with 24V
d.c. acceptance lights. Up to 4 - 8 way call modules and 20 – 16 way modules can be fitted. This gives a massive
amount of call I/O available for any combination of 64 floor / front or rear openings / full collective etc.
Additionally the system can be fitted with a full serial landing call network up to 6 risers. Special / Hospital calls are
also easily configured.

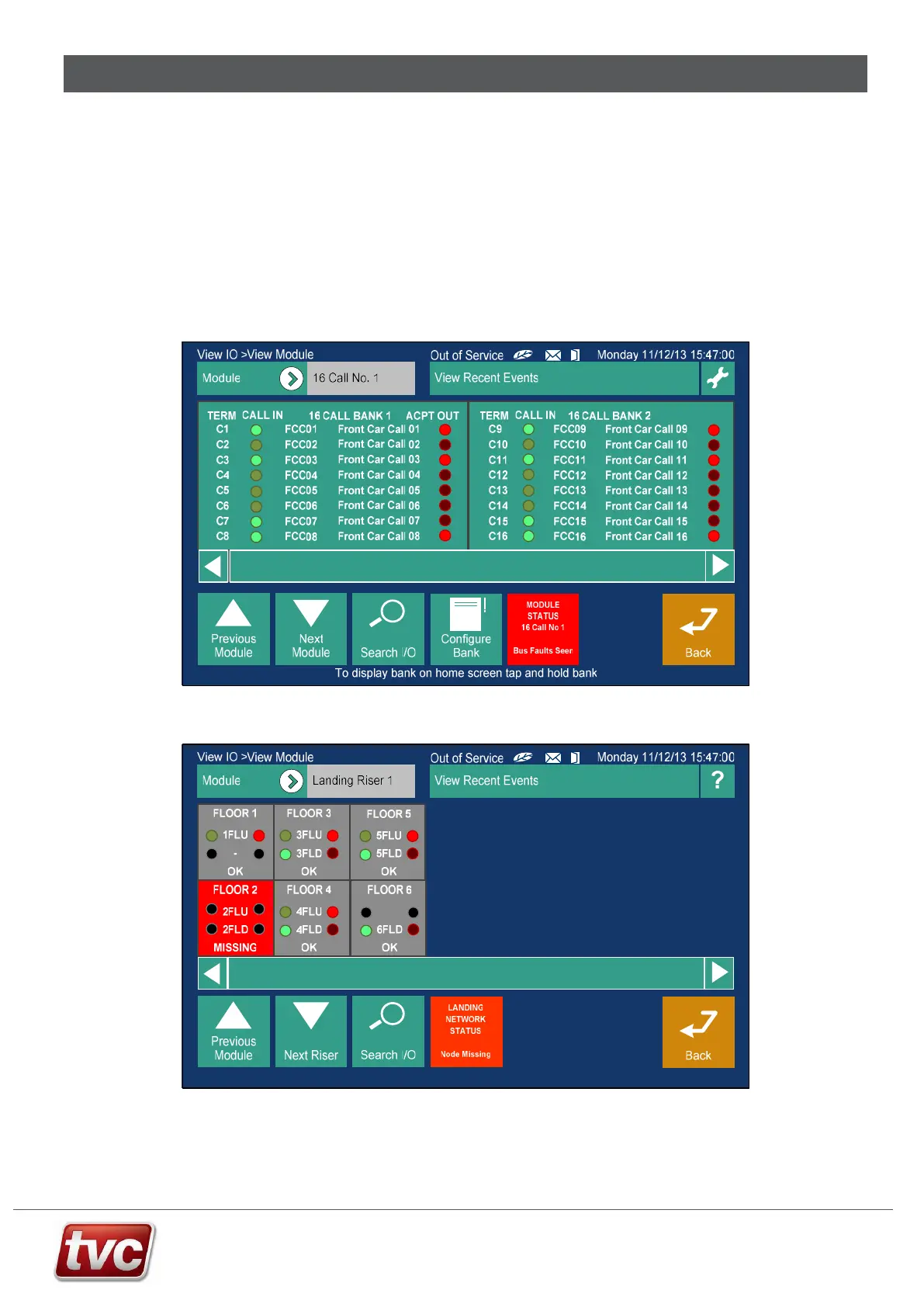

Call I/O can be viewed through the MMI via the View I/O button:
Serial Landing Network Status:
