TVLogic LEM-250A - Network Settings

22 FHD OLED Reference Monitor
● DHCP
- Used to control the DHCP function.
● IP ADDRESS
- Used to set the IP address connected to the
Monitor.
● SUBNET MASK
- Used to set the SUBNET MASK connected to
the Monitor.
● GATEWAY
- Used to set the GATEWAY connected to the
Monitor.
● PORT NO
- Used to set the port number. Default port
number is 10262.
● SERVER IP ADDR
- Used to set the IP address of TVLogic’s
Controller (RMU Series).
● SERVER PORT NO
- Used to set the port number of TVLogic’s
Controller (RMU Series).
● NETWORK SETTING APPLY
- Use to apply changed value of IP ADDRESS,
SUBNET MASK, GATEWAY, PORT NO and so
on.
● D-UMD TALLY TYPE
- Tally type conguration setting in D-UMD(D-
8C), UMD Display.
- Conguration values are DEFAULT, USER
COLOR, CHARCTER, BG .COLOR, USER TALLY,
USER CHAR and USER BG.
- TALLY1 COLOR ~ TALLY4 COLOR are activated
when USER COLOR is selected.
● TALLY1 COLOR / TALLY2 COLOR / TALLY3
COLOR / TALLY4 COLOR
- Used to set the color of each TALLY 1, TALLY
2, TALLY 3 and TALLY 4.
- Available colors are RED, GREEN and
YELLOW.
● UMD FONT SIZE
- This function adjusts the size of UMD FONT.
- Available modes are SMALL, NORMAL and
LARGE.
● UMD FONT TYPE
- This function sets the Type of UMD FONT.
- Available font types are FONT 1, FONT 2 and
FONT 3.
LEM-250A LEM-250A
SDI A SDI A
[5] GPI

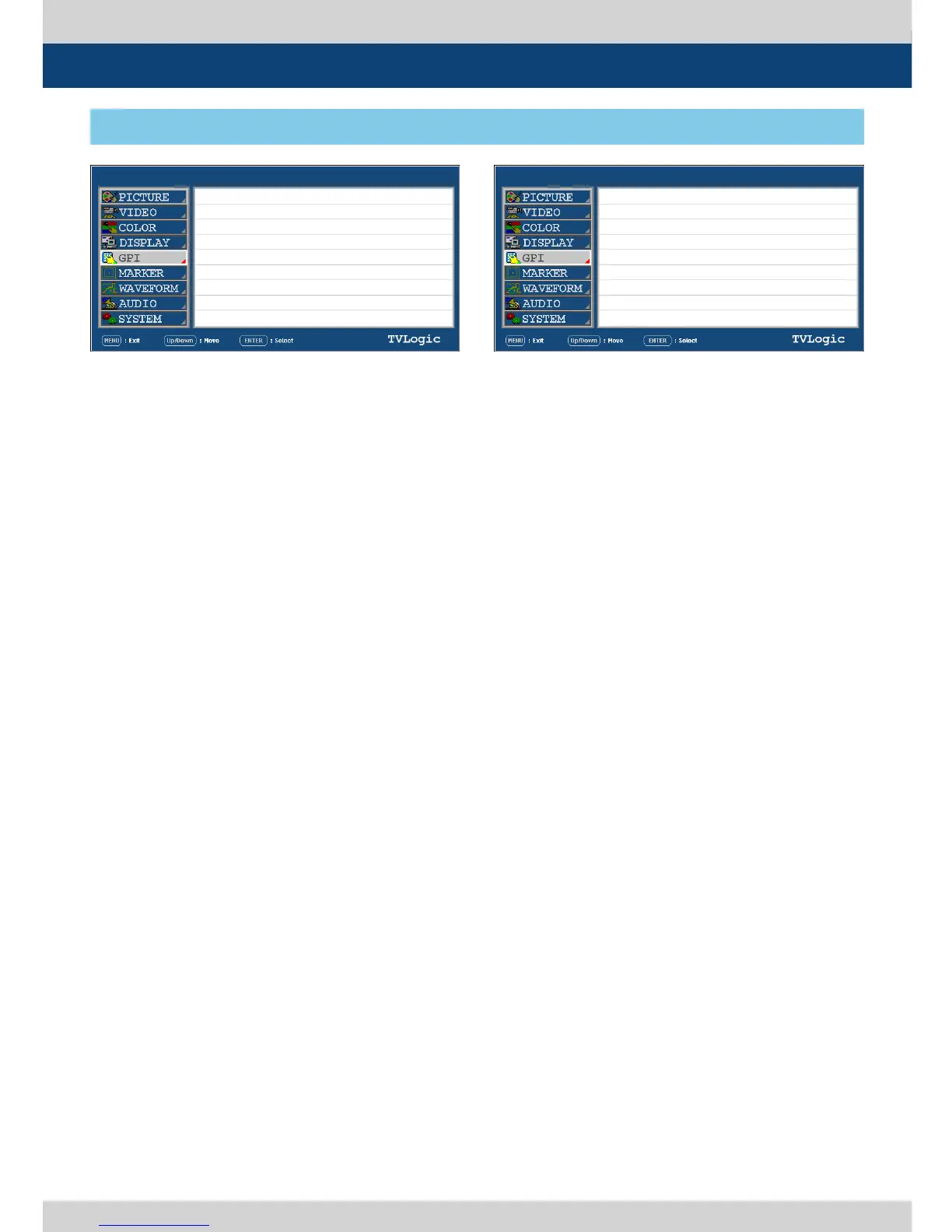

5. Menu Operations
PAGE III >> PAGE IV
DHCP
IP ADDRESS
SUBNET MASK
GATEWAY
PORT NO
SERVER IP ADDR
SERVER PORT NO
NETWORK SETTINGS APPLY
PAGE IV >> PAGE I
D-UMD TALLY TYPE
TALLY1 COLOR
TALLY2 COLOR
TALLY3 COLOR
TA LLY4 COLOR
UMD FONT SIZE
UMD FONT TYPE
OFF
192.168.123. 0
255.255.128. 0
0. 0. 0. 0
10262
255.255.128. 0
10262
OFF
NORMAL
FONT 1
