S1846 Tsunami ATX
13
INSTALL

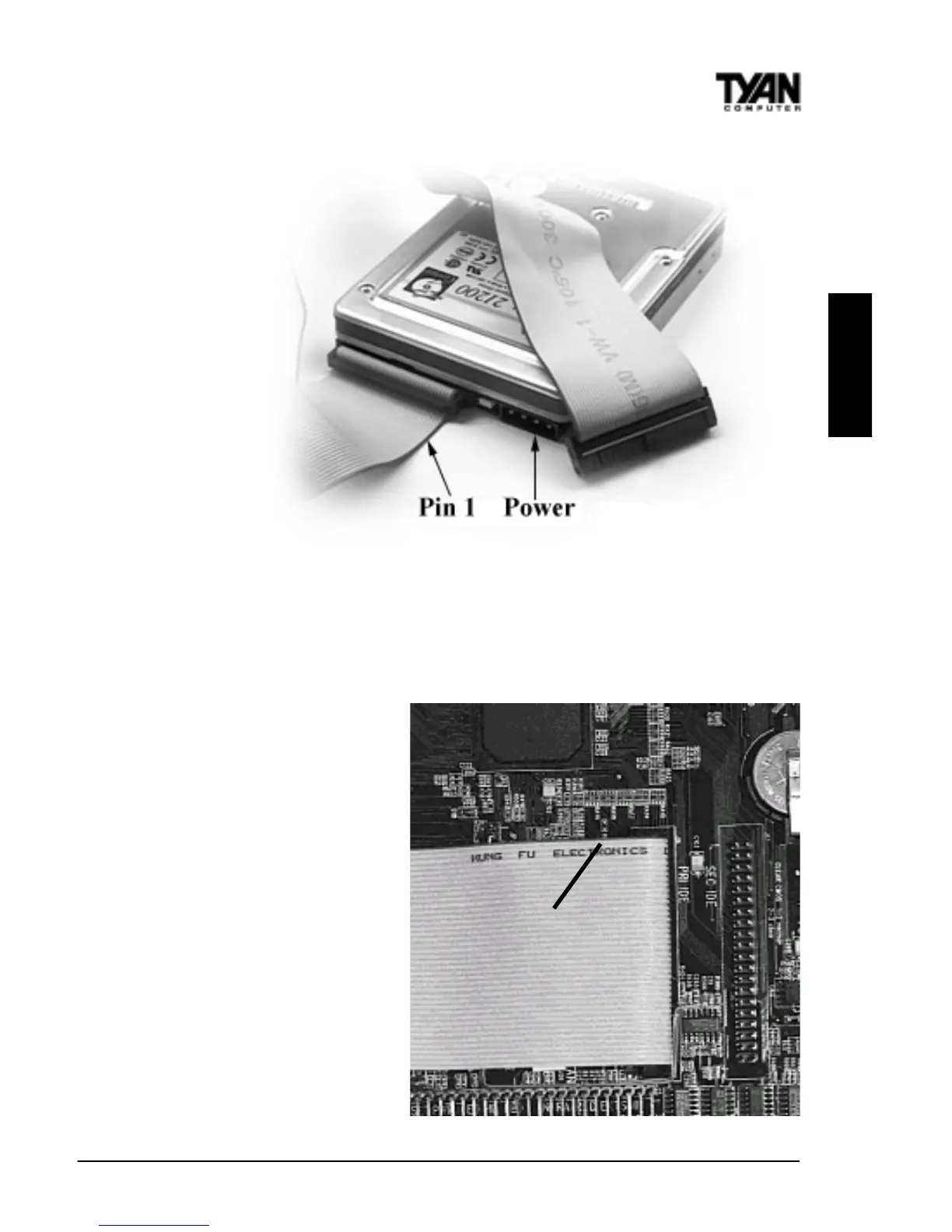

Figure 4
Pin 1
problem or a bad IDE cable. Contact your vendor.
• Hard Disk Drive Fail message at bootup: may be a bad cable or lack of
power going to the drive.
• No video or beeps on
bootup: usually means
the cable is on
backwards.
• Hard drive lights are
constantly on: bad
IDE cable or defective
drives/motherboard.
Try another HDD.
• Hard drives do not
power up: check
power cables and
cabling. May also be a
bad power supply or
IDE drive.
Figure 3
