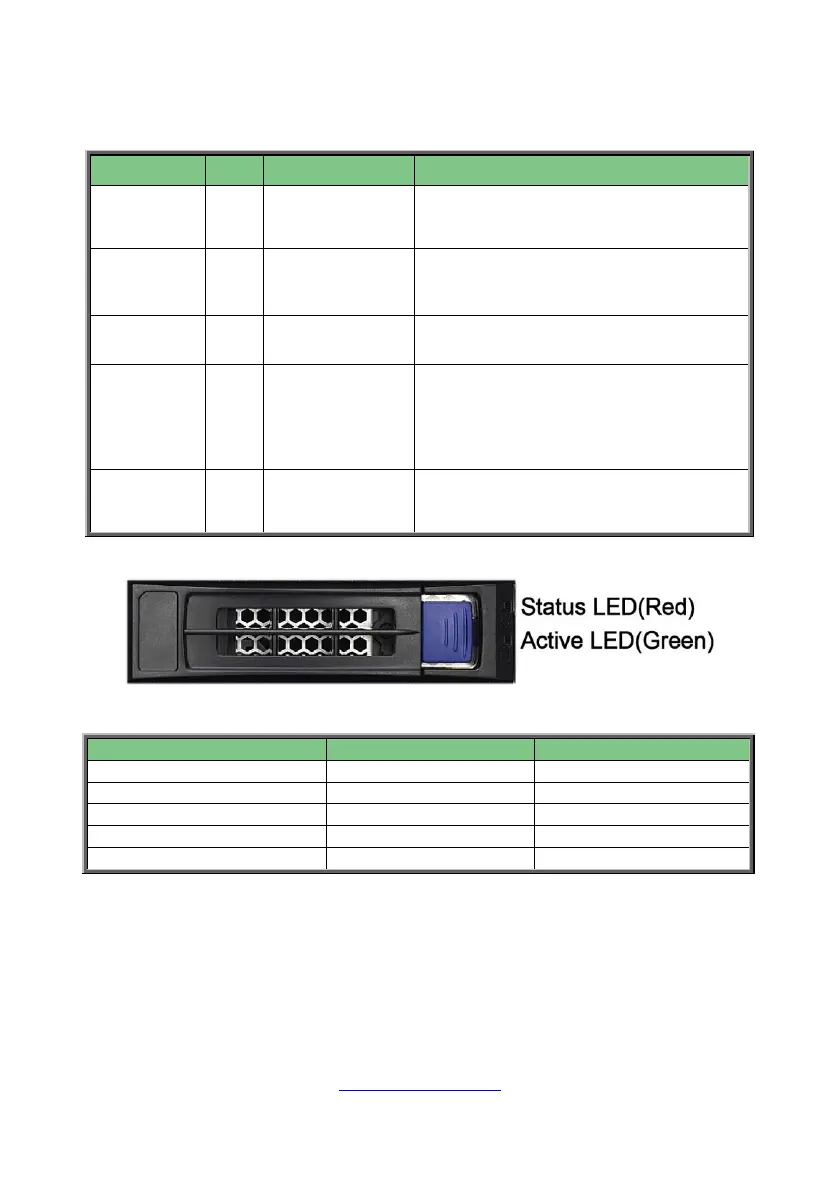

M1718T65-FPB Front Panel LED Control Board
Switch and LED Indication
Field
QTY
Color
Behavior
Power
1
Green
System Power off / off
System Power On / solid on
System under S1 or S3 / Blinking (TBD)
LAN1/LAN2
2
Green
Offline / LED Off
Linking / Solid on
Access / Blinking
ID
1
Blue
Normal / Off
Located / Solid on
Warning
1
Red/Green/Blue
System normal /All off
Memory warning / Green blinking
PSU warning / Blue solid on
FAN warning / Blue blinking
System fault / Red solid on
HDD LED
1
Green/Red
HDD present / Green solid on
HDD activity / Green blinking
HDD fail / Red solid on
Drive State
Active LED (Green)
Status LED (Red)
Drive Present, No Active
Solid on
Off
Drive Present with Active
Blinking
Off
Drive Failure
Don’t care
Solid on
RAID Rebuild
Don’t care
Blinking @4 Hz
Drive Locate Identifier
Don’t care
Blinking @1 Hz
