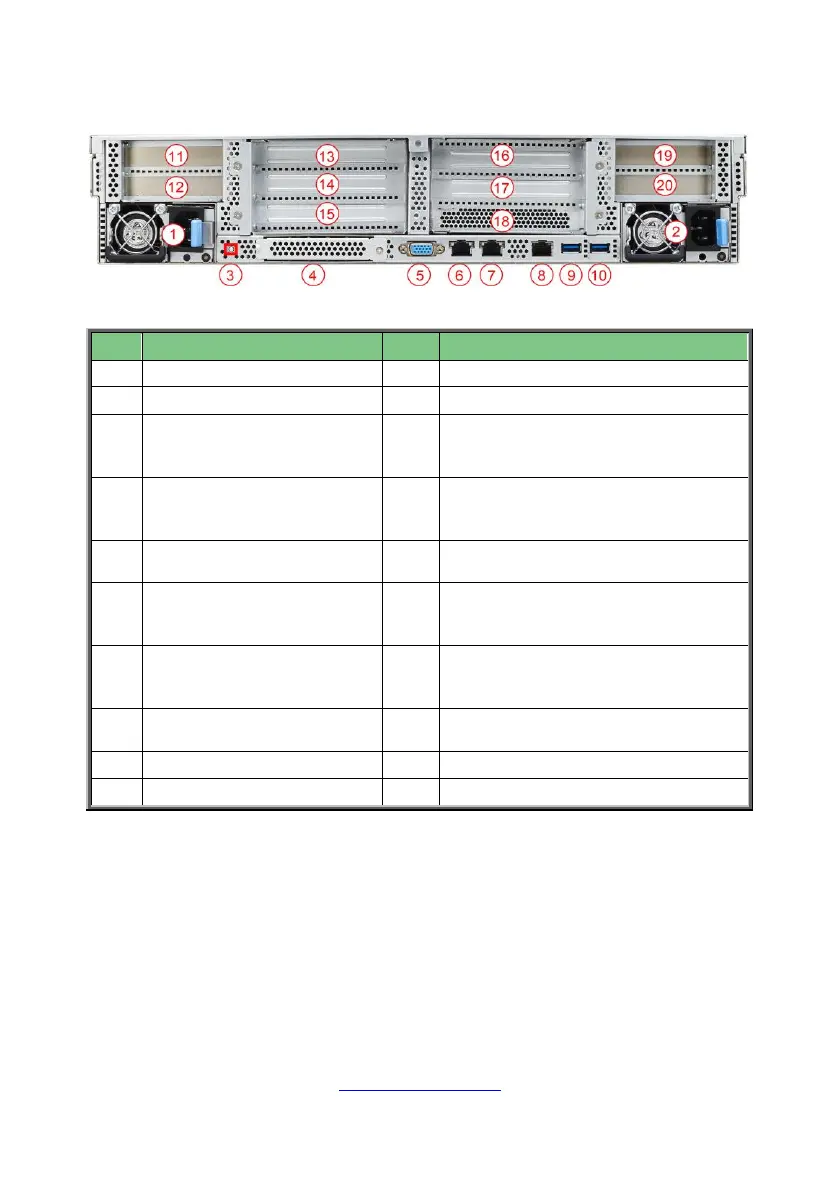

1.5.2 System Rear View
No.
Description
No.
Description
1
PSU0
11.
PCIE Slot #10 (LP card *2)
2
PSU1
12.
PCIE Slot #09 (LP card *2)
3
ID Button/ ID LED (Blue)
13.
PCIE Slot #08
(10.5 inchL FH card*1or FH/HL
card*1 or LP card *1 )
4
Dedicate to OCP Card
14.
PCIE Slot #07
(10.5 inchL FH card*1or FH/HL
card*1 or LP card *1)
5.
VGA Port
15.
PCIE Slot #06
(FH/HL card *1 or LP card*1)
6
LAN2 Port
16.
PCIE Slot #05
(10.5 inchL FH card*1or FH/HL
card*1 or LP card *1)
7
LAN1 Port
17.
PCIE Slot #04
(10.5 inchL FH card*1or FH/HL
card*1 or LP card *1)
8
Dedicated IPMI LAN
(LAN3) Port
18.
PCIE Slot #03
(FH/HL card *1 or LP card*1)
9
USB3.1 Ports
19.
PCIE Slot #02 (LP card *2)
10
USB3.1 Ports
20.
PCIE Slot #01 (LP card *2)
*LP card=Low profile card
