Chapter 3: Replacing Pre-Installed
Components
3.1 Introduction
This chapter explains how to replace the pre-installed components, including the
Motherboard, M1717T65-FPB Front Panel Board, M1718T65-USB Board,
M1297T65-BP12E-12 HDD Backplane, M8252T75-L16-1L / M8252T75-L24-1F /
M8252T75-R24-2F/ M8252T75-R16-1L /M8252T75-L16-2L/ M8252T75-R16-2L/
M8252T75-L24-2F and M8252T75-R24-3F Riser cards, System fan and Power
supply unit etc.

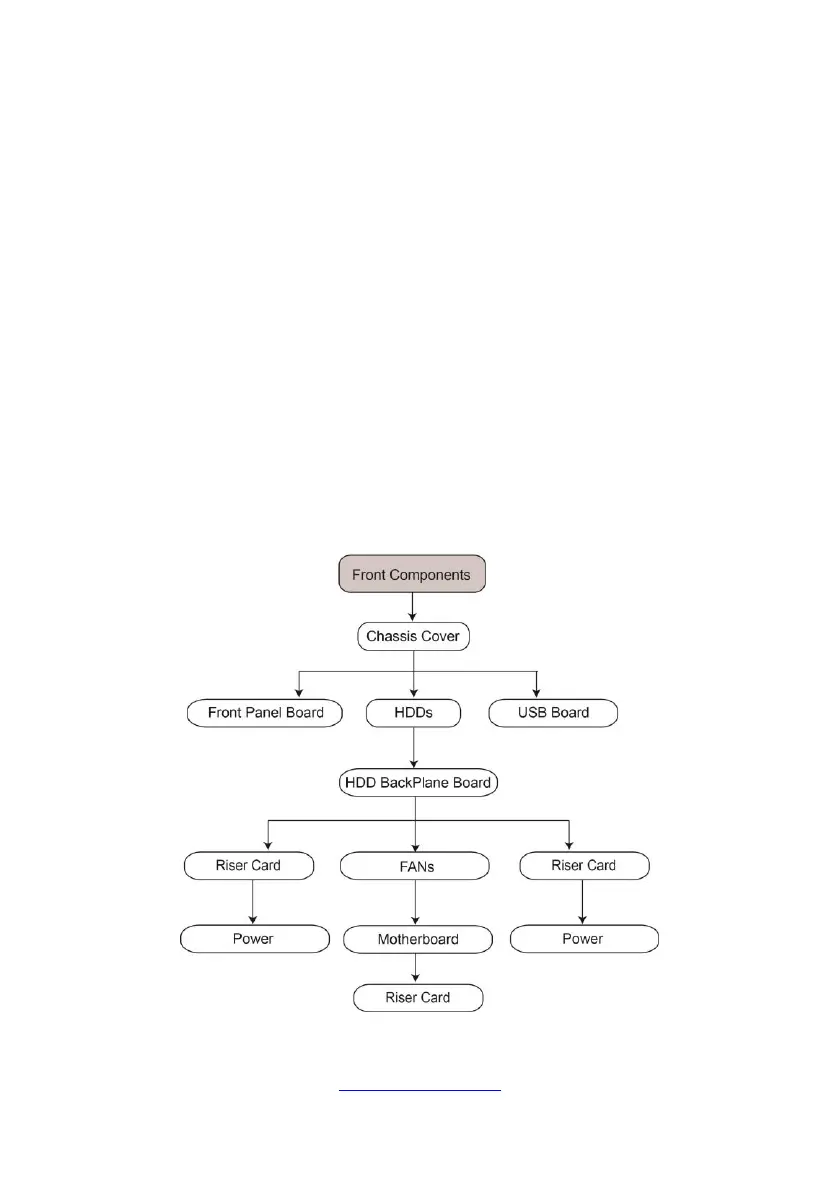

3.2 Disassembly Flowchart
The following flowchart outlines the disassembly procedure.
To Next Page
