3.8.1 HDD Backplane Board Features

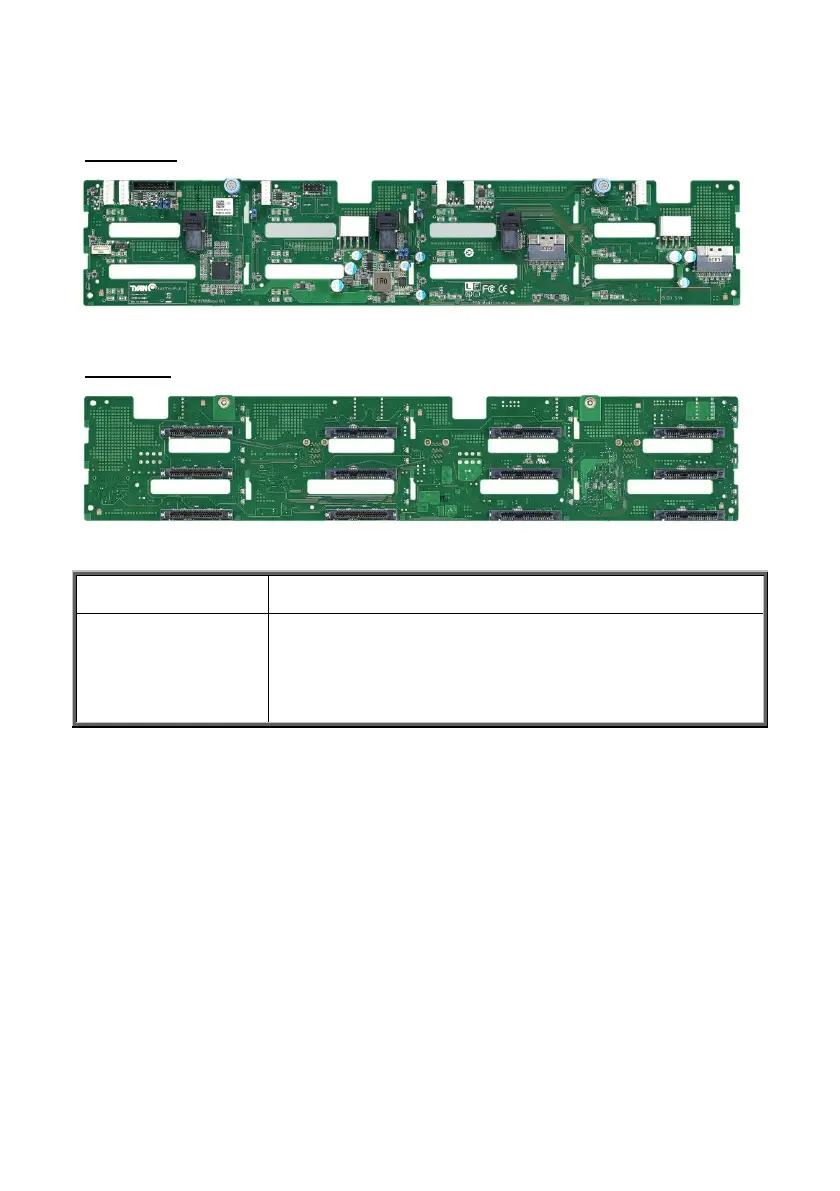

Front View
Rear View
Form Factor
Dimension: 422.4*29.8mm
Specifications
Overview
OCU Link Connector Input x 2
Mini SAS HD Connector Input x 3
SGPIO Header x 4
SATA HDD or 8 SATA HDD x 12 + NVMe Output x 4
