TYAN TS75-B8252 - Removing the Server from Rack

56
http://www.tyan.com

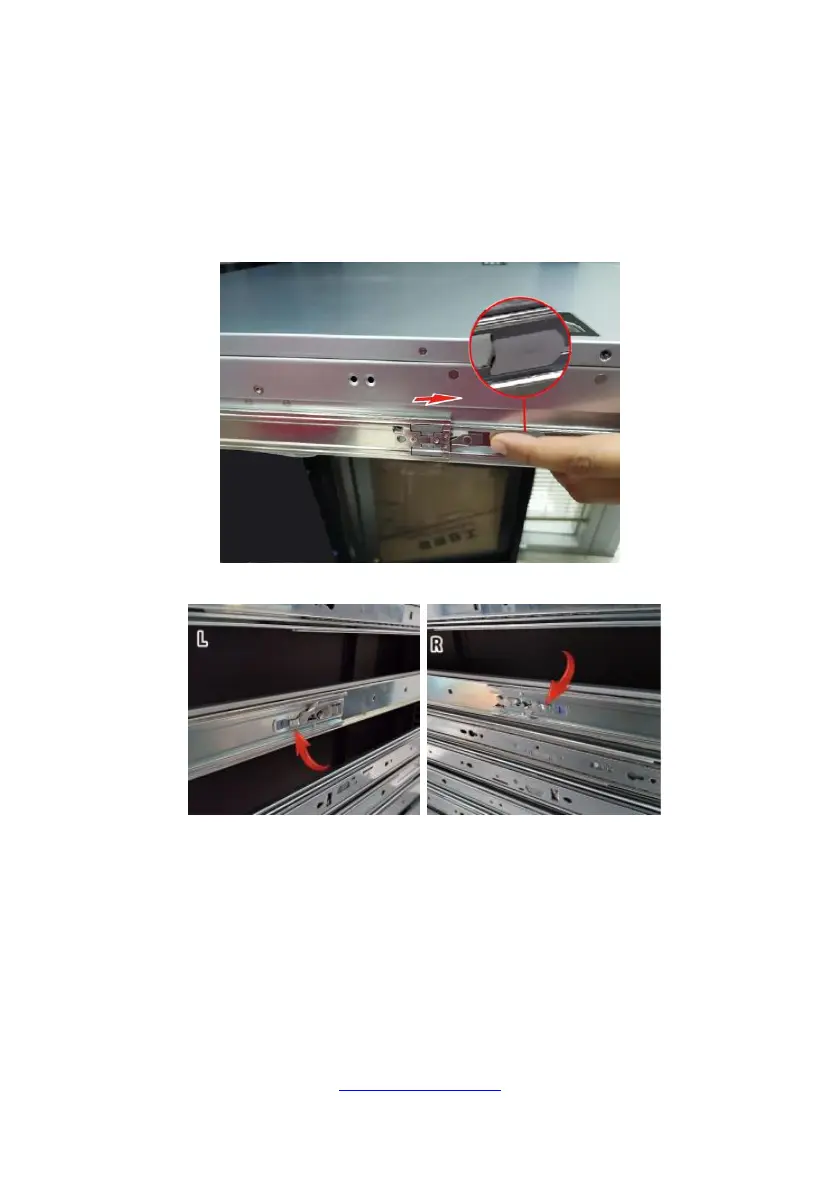

2.2.2 Removing the Server from Rack
1. Loosen shipping screws to pull out chassis.
2. Pull the disconnect tab forward to remove chassis at the full extension
position.
2. Push tab to slide the middle rail back.
