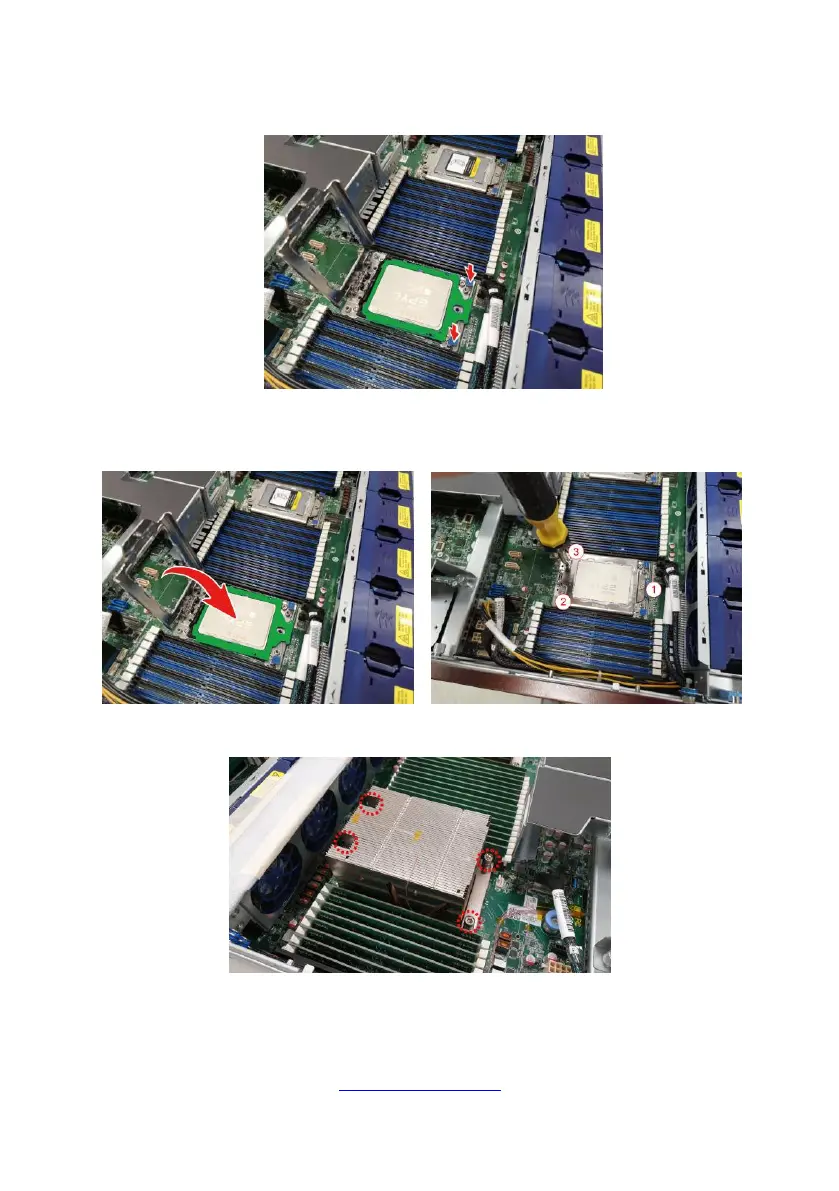

6. Carefully close the rail frame with the installed package. Then push both
edges of the rail frame firmly until it locks in place.
7. Close the force frame. Then use a T20 Torx screwdriver to tighten the screws to
secure the force frame in a sequential order (1 ->2->3).
8. Tighten the four screws in a diagonal sequence to secure the heat sink
