39
1. Steering wheel assy 2. Hydraulic steering gear mounting assy
2. Steering gear A-cylinder iron pipe 4. O-ring 13X1.9 5. Steering gear ports A and B joint
6. Multi-sealed washer 2 7. Connecting block 8. O-ring 24X2.4 9. Hollow bolt M20X1.5X43
10. Return oil pipe, steering gear 11. Inlet oil pipe, steering gear 12. Gear pump
13. Union 14. Hollow bolt M24X1.5X48 15. Multi-sealed washer 18
16. Steering cylinder assy 17. Hollow bolt M18X1.5X43 18. O-ring 28X2.4
19. Steering gear B-cylinder iron pipe 20. Front seat weldment assy
21. Steering cylinder tube 22. Steering gear oil pump inlet tube
23. Hydraulic oil tank weldment assy 24. O-ring 35X3.1 25. Filter weldment assy
26. O-ring 55X3.1

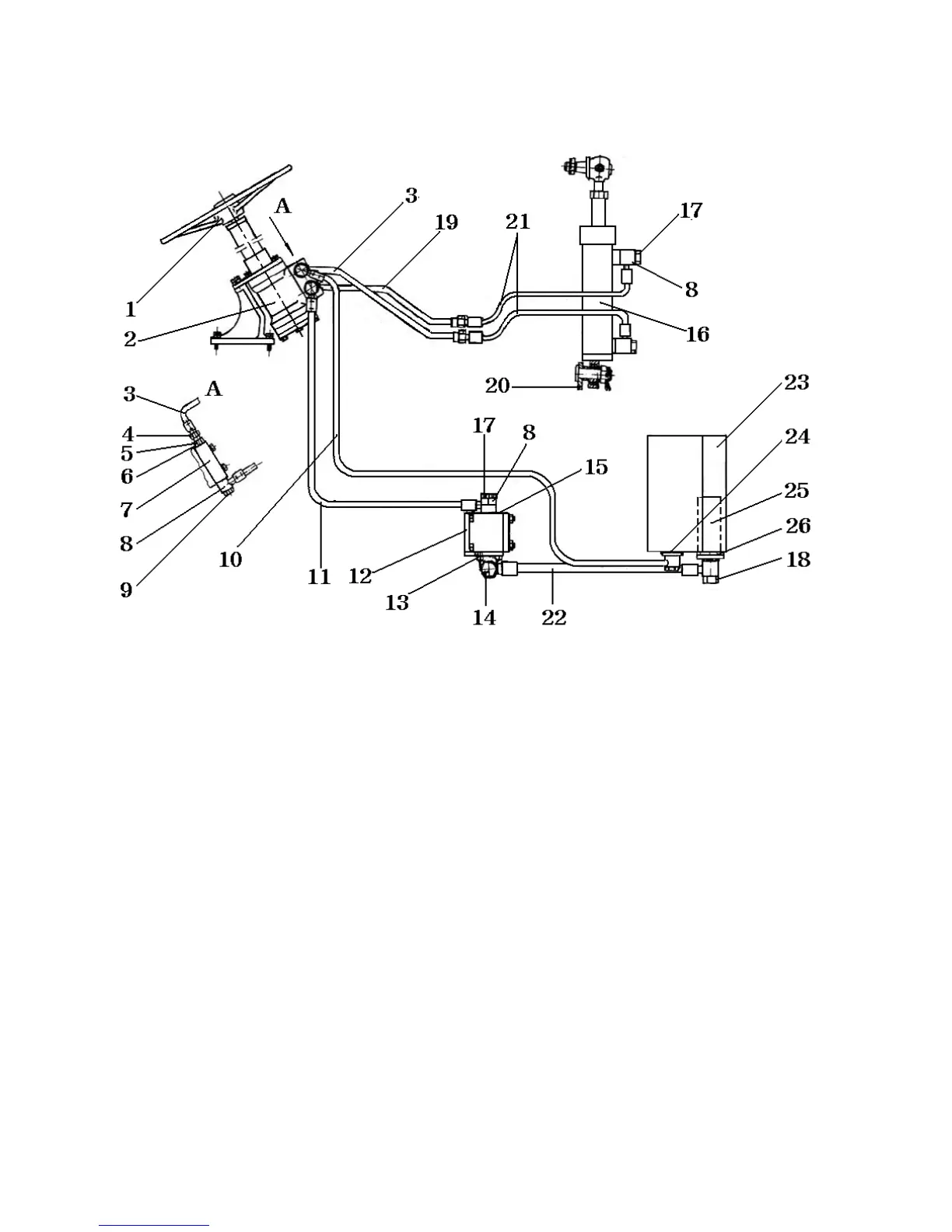

Fig. 5-8 Connection of pipelines and hydraulic components
