4. CHECKING AND CHANGING OIL
T4NO504A

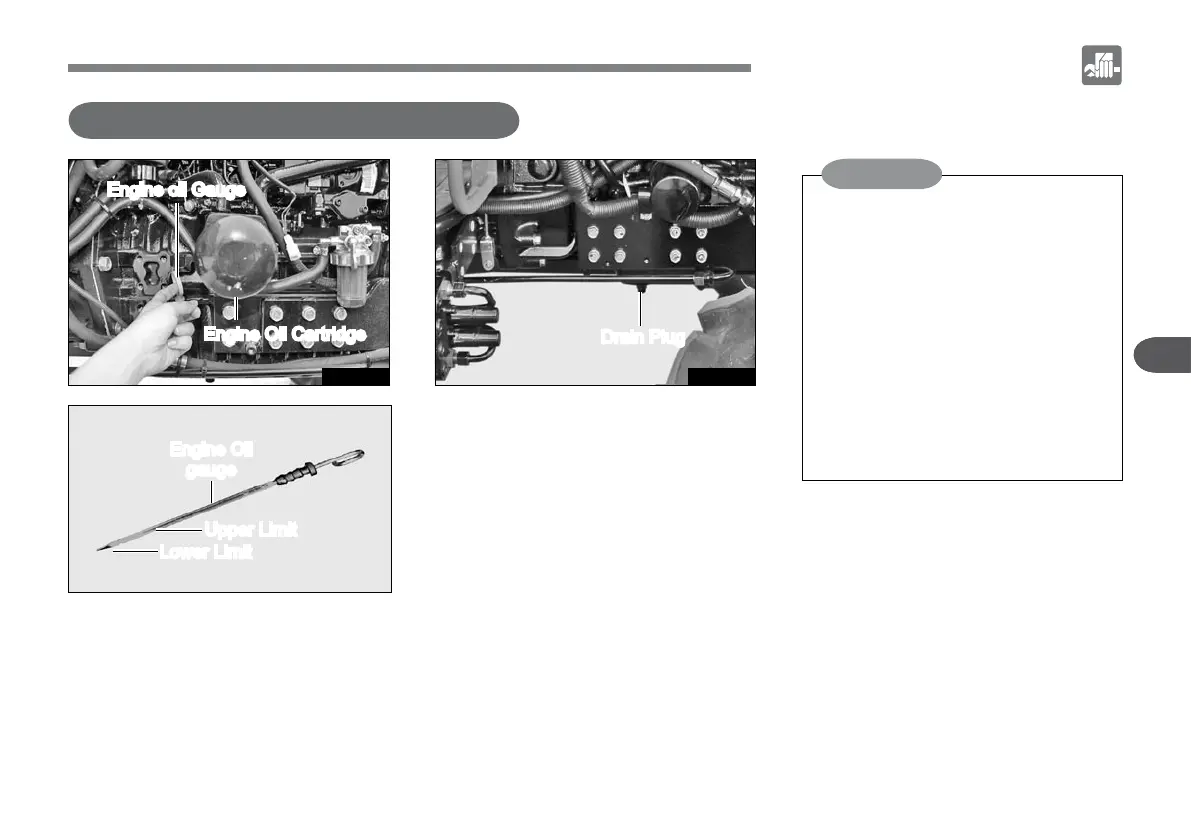

Engine oil Gauge
T254O508A
Engine Oil
gauge
Upper Limit
Engine Oil Cartridge
Lower Limit
CHECKING AND CHANGING
ENGINE OIL
(1) Inspection
① Pull out the dipstick, wipe its tip
and insert it again. Then, pull it out
and check that the oil level is be-
tween the upper and lower limits.
② If insufficient, add oil.
►
(2) Changing

Unscrew the drain plug on the
lower section of the engine to
drain contaminated engine oil.
Since hot oil flows out of the en-
gine first, be careful not to get
burnt.

After draining oil, tighten the en-
gine oil drain plug.

Add the specified amount of the
specified engine oil through the
filler hole.
T39O507A
Drain Plug
Do not add engine oil over the
upper limit level.
Check the engine oil before
starting the engine or at least
in 5 minutes after the engine is
stopped.
When trying to use new oil from
a different manufacturer or oil
with different viscosity, drain
used oil completely before add-
ing new oil.
•
•
•
