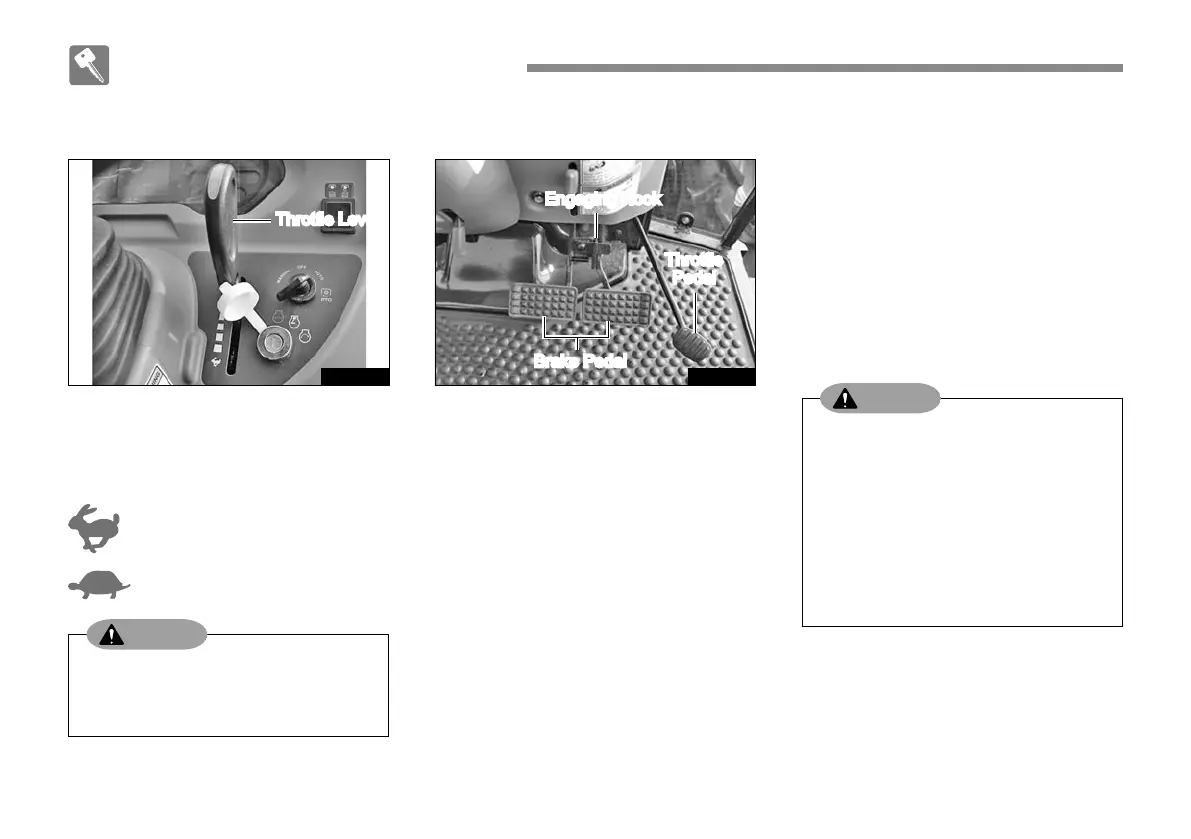

DESCRIPTION OF TRACTOR CONTROLS
2 - 20
THROTTLE LEVER
It is used to adjust the engine speed
like the throttle pedal.
Pulling : increasing speed
Pushing : decreasing speed
►
45NO226A
Throttle Lever
BRAKE PEDAL
The brake is used to stop the vehi-
cle forcibly. This vehicle is equipped
with separate brakes for its left and
right sides. Therefore, it is possible
to apply braking force only to one
rear wheel.
When the one side brake lever is
released, the warning lamp is illumi-
nated. When the lever is engaged,
the lamp is turned off.
There is an engaging hook for con-
necting the left and right brake ped-
als.
►
45NO227A
Brake Pedal
Engaging Hook
Never use it unless working in
a field. It can lead to speeding
and an accident.
•
WARNING
Driving on road -
Engage (both brake pedals op-
erated together) One-side brake
warning lamp OFF
Working in field -
Disenga g e (One si de brake
pedal operated) One-side brake
warning lamp ON
Connect the left and right brake
pedals while driving on a road,
loading/unloading the vehicle
or driving into/out of a field to
avoid rollover and collision.
Check the left and right brakes
periodically so that they can be
operated simultaneously.
•
•
WARNING
Throttle
Pedal
