5 - 17
MAINTENANCE AND SERVICE
43
5

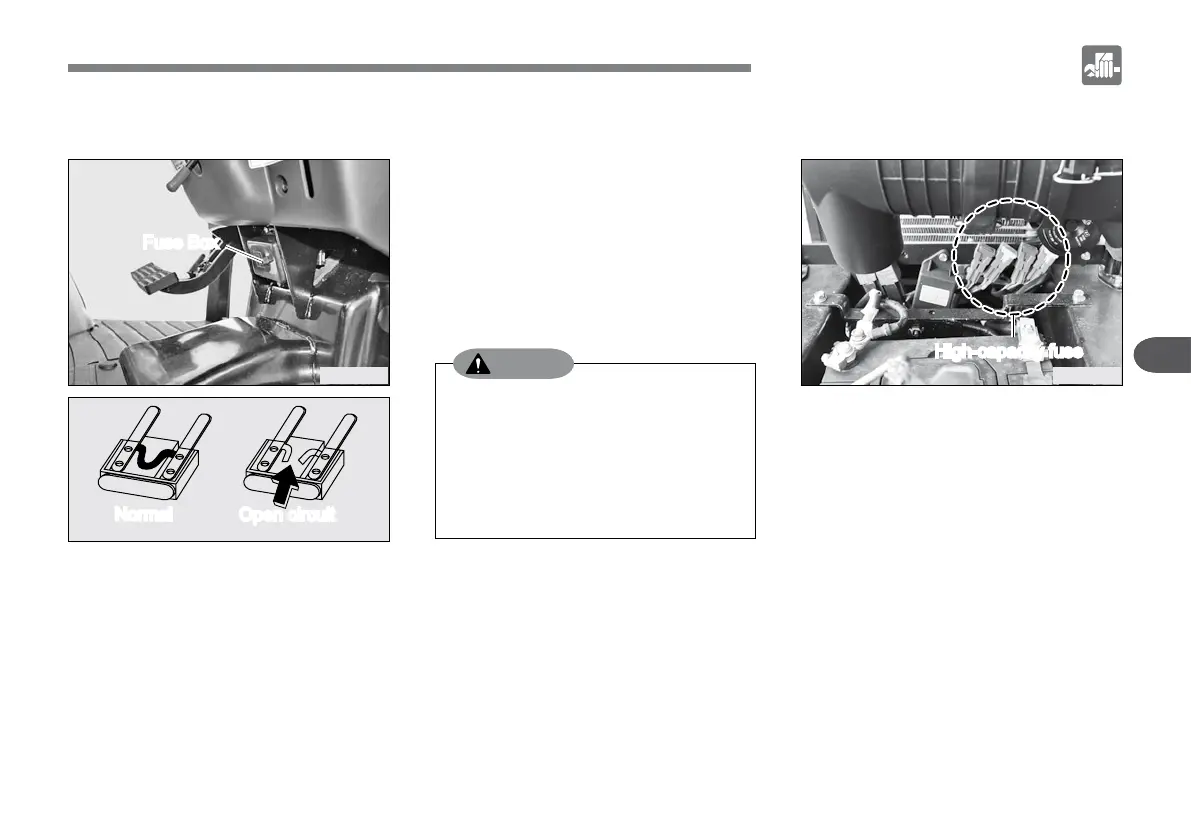

CHECKING AND REPLACING
FUSE
(1) Body fuse box
Fuses are installed in this tractor
to prevent any possible accident in
case of wiring circuit malfunction.
If the electric system is malfunction-
ing during driving, check for any
blown fuse.
►
T39O517A
Fuse Box
Open circuit
T254O533A
Normal
① Remove the cover of the fuse box.
② Remove the blown fuse.
③ Fit a new fuse with the same ca-
pacity.
④ The function and capacity of each
fuse are indicated on the cover of
the fuse box.
If using fuses other than the
specified, wirings can be over-
heated, leading to a fire. Never
use a fuse with different capac-
ity. Also, never use a steel wire
or foil instead of a fuse.
•
WARNING
(2) High-capacity fuse (50 A)
This tractor is equipped with four
fuses for wirings.
These fuses are blown to cut cur-
rent to the electric circuit in order to
protect wirings. Find the cause for
blown fuses and replace them with
the specified genuine parts.
High-capacity fuse
T57O507A
To Next Page
